| Type: | Heat Press Machine |
|---|---|
| Color & Page: | Multicolor |
| Usage: | Cloths Printer,Label Printer |
| Brand Name: | JINYU |
| Condition: | New |
| Type: | JY-B04 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE Certification |
| Weight: | 600kg |
| Dimensions(L*W*H): | 1650*1700*1700MM |
| Gross Power: | 13KW |
| Voltage: | 380v/50hz |
| Automatic Grade: | Automatic |
| Model Number: | JY-B04 |
| Place of Origin: | China (Mainland) |
| Plate Type: | |
| Warranty: | 1year |
Quick Details
Specifications
Professional clothes label making machine,leather logo production line for factory
Application:
the machine Applies to embossing clothes,embossing bracelet,branding various leather, colorful silicone coaster and trademark,and various liquid silicone trademark.Mechanical optional hands move and automatic sliding table control platens fluctuation, timing forming automatic playback, operating more safety

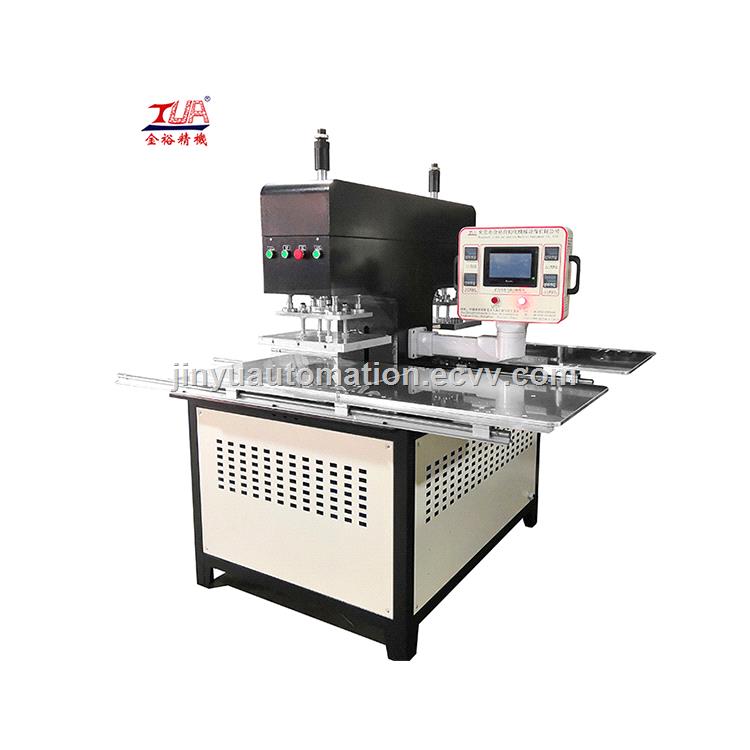

Product Picture:Automatic Embossing Machine
Specification:Automatic Embossing Machine
Type |
5T |
Stroke (mm) |
120 |
Work table size (mm) |
300*400 |
Main cylinder diameter (mm) |
80 |
Horse (HP) |
3 |
Heating power (kw) |
7.2 |
Machine size (mm) |
1650*1700*1750 |
Machine weight (kg) |
700 |
Description:Automatic Embossing Machine
1.Importing the latest digital prototype testing technology, higher thermal performance, better stability than the traditional design.
2.Heating plate used for deep hold processing, and after carburizing, nitriding completed after grinding,using the principle of heat, the high accuracy, the optimal design with average temperature,HRC50-55 hardness, wear a long time, Not easy to out of shape and it has high plane precision.
3.Using the technology of planar pressure correction, the maximum pressure (20KG) nut leveling device, the highest plane precision can reach 0.05MM.
the Silicone Garment Logo Embossed Machine is applied the embossing/debossing logo /label on all kind of fabric.
