| Type: | Elevators |
|---|---|
| Elevator Type: | Passenger Elevators |
| Drive Type: | AC,DC,Hydraulic |
| Usage: | Residential Elevators |
| Brand Name: | Schnelling Lift |
| Type: | Home elevator |
| Model Number: | SE-C121 |
| Place of Origin: | China (Mainland) |
| Product name: | Guaranteed Quality Custom 400kg home/house Construction elevator with good price |
| Application: | For homes/houses/hotel |
| Capacity: | 400kg or custom |
| COP/LOP: | Dot matrix, LCD or custom |
| Drive Type: | AC/Other |
| Control: | VVVF Elevator Control Systerm |
| Elevator car: | Sightseeing glass car |
| Speed: | 0.4m/s or custom |
| Ceiling finish: | Titanium Gold Mirror Stainless Steel,LED light |
| Keywords: | Elevator |
Quick Details
Specifications
ProducT Description:
Elevator Car Options
General Installation Position of Elevator
about Factory
Shipping and Delivery time
Quotation Example for Our Standard Elevator:
Guaranteed Quality Custom 400kg home/house Construction elevator with good price
Schnelling Lift looks forward to receiving your inquiry and working together with you in future, we'll be here at your service all the time! Contact Airel please and thanks for your reading:)
ProDuct Name |
Guaranteed Quality Custom 400kg home/house Construction elevator with good price |
Keyword |
Elevator |
Model # |
SE-C121 |
Ceiling |
Mirror stainless steel plated titanium gold,LED light |
Car Wall |
Mirror stainless steel plated titanium gold frame,sightseeing glass |
Floor |
PVC or marble/custom |
Handrail |
Titanium Gold Stainless steel round tube on 1 side |
OEM/ODM |
Accept |
Package |
with Plywood case, bundle, Fumigation-free wooden |
Lead Time |
about 30-35 working days after confirmed all details and received the deposit |
Warranty |
12 month |
Payment terms |
T/T,Cash,L/C,Western Union,Money Gram |
General Installation Position of Elevator
about Factory
Standard Size (mm)
Rated Load |
No. |
Speed |
Car Size |
Door Opening Size |
Door Type |
Shaft Size |
OH |
Pit |
320 |
4 |
0.4m/s |
900*1200*2200 |
700*2000 |
Center Opening Door |
1600*1500 |
3000 |
500 |
400 |
5 | 0.4m/s |
1000*1250*2200 |
700*2000 |
Center Opening Door |
1700*1550 |
3000 |
500 |
320 |
4 |
0.4m/s |
900*1200*2200 |
800*2000 |
Side Opening Door |
1550*1550 |
3000 |
500 |
400 |
5 |
0.4m/s |
1000*1250*2200 |
800*2000 |
Side Opening Door |
1650*1600 |
3000 |
500 |
320 |
4 |
0.4m/s |
900*1200*2200 |
800*2000 |
Sliding Door |
1600*1400 |
3000 |
500 |
400 |
5 |
0.4m/s |
1000*1250*2200 |
950*2000 |
Sliding Door |
1700*1450 |
3000 |
500 |
Remark:the above data is for deign reference only. for the detailed paramaters,please take the technical drawing as the criterion.
Product Parameters(mm)
Item No. |
OH |
Pit |
Shaft Size |
Car Size |
Opening type |
Door opening size |
VLS100-A1 |
2800 |
300 |
1400*1350 |
800*1100*2200 |
Automatic door |
600*2000 |
VLS100-A2 |
3000 |
300 |
1400*1100 |
800*850*2200 |
Automatic door |
600*2000 |
VLS100-A3 |
2600 |
500 |
1400*1300 |
800*1050*2200 |
Automatic door |
600*2000 |
VLS100-A4 |
3400 |
150 |
1400*1400 |
800*1150*2200 |
Automatic door |
600*2000 |
VLS100-A5 |
3500 |
150 |
1400*1400 |
1050*930*2200 |
Automatic door |
650*2000 |
VLP100-A1 |
2600 |
250 |
1100*1350 |
950*830*2200 |
Sliding door |
800*2000 |
VLP100-A2 |
2600 |
250 |
1300*1100 |
830*950*2200 |
Sliding door |
700*2000 |
VDS100-A1 |
3300 |
150 |
1300*1100 |
1000*850*2200 |
Automatic door |
600*2000 |
1100*1100 |
800*880*2200 |
Sliding door |
800*2000 | |||
VDS100-A1 |
2900 |
500 |
1300*1100 |
1000*850*2200 |
Automatic door |
600*2000 |
1100*1100 |
800*880*2200 |
Sliding door |
800*2000 | |||
VDP100-A1 |
3300 |
500 |
1100*1250 |
950*850*2200 |
Sliding door |
800*2000 |
Remarks:It's necessary to be increased of the car and door opening value, and the shaft value must be increased accordingly;If the width and depth of the shaft frame wells need be increased by 100 mm each;If the width of the door is increased, the width of the shaft can be increased to add the depth of the shaft, and adopt the door opening way of center-opening double-folded.
Shipping and Delivery time
Packing Way: by using PLYWOOD case as an standard export box
10-20 packages for each elevator, depends on different parameters and requirements.
1 unit Home elevator fit in 1*20ft container
2-3 units home elevators fit in 1*40ft container or 1*40HQ container
Delivery Time:
about 30 working days after confirmed all details and the below requests
A. All technical information confirmed
B.Elevator construction layout drawing confirmed
C.30% or 50% deposit received
D.Confirmed the site can be installed and constructed
Shipping Details:
in general with Sea shipping or as per customers' request
the port of shipment: Shanghai port,China
Quality Assurance
EN81 standard
the Warranty is 12 months & not exceed 18 months after the factory sending delivery time of the notice
Elevator life:about 15 years
Benefits of Home Elevator
1.theHome lift is a safe and practical choice that allows you to stay put and enjoy the home you love. Stairs should never be a struggle.
2.Easily transport heavy or awkward items between levels, such as shopping, washing, luggage, prams, or rubbish.
3.Safer travel for the family between levels, particularly young children, older relatives, or anyone with a disability or limited mobility.
4.Building or renovating your dream home? Future-proof your home and relax knowing you'll be able to safely enjoy the home well into your retirement years.
5.Increase the resale value. A residential lift is a unique selling point that can make your home really stand out and add hundreds of thousands to the resale price.
Installing a lift in your home is generally more affordable than moving or renovating.

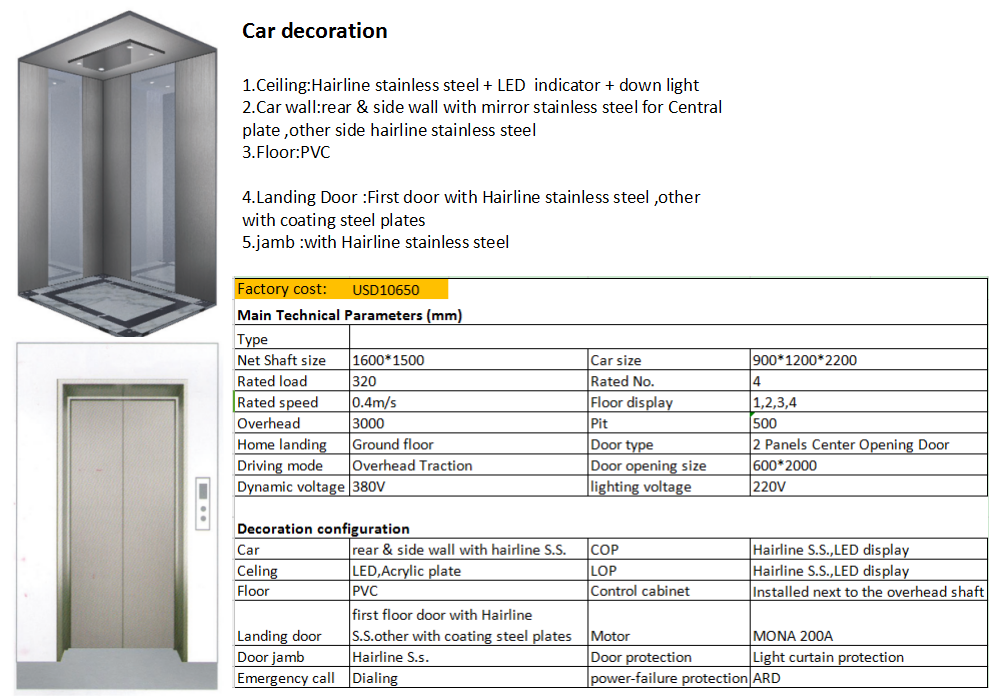

Quotation Example for Our Standard Elevator:
