PCBN Specification:

Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase.

Features of PCBN Inserts:

PCBN Inserts has a hardness second only to diamond, has lower affinity to iron than diamond. the low affinity and high hardness properties means that KJK PCBN delivers significant increase in tool life, consistent surface finish, dimensional control, decrease in over all cost of the component, higher productivity and cost savings in total manufacturing operation.

the customers shall have an idea to choose any PCBN Inserts from our standard range of Inserts as detailed below, suitable for there purpose.

Automobile brake drum processing case

Processing location: brake drum inner circle

Workpiece material: alloy cast iron

Hardness: HB200-300

Working procedure: finish the car

Blade: PCBN integral sintering blade

the brake drum material is mostly gray cast iron. in the past, traditional coated cemented carbide blades or ceramic blades are usually selected. Generally, only about 20-50 pieces can be processed at each blade tip.

the multi-blade indexable BT7800 PCBN blade introduced by zhengzhou bote is made of metal adhesive with high hardness and abrasion resistance. It can process 70-100 pieces per blade, greatly improving production efficiency and is an ideal choice for cutting gray cast iron.

Applications:

*Polycrystalline Diamond (PCD)

Aluminum alloys,titanium alloy,magnesium alloys, copper alloys,manganese alloys,Sintered carbide & ceramics,Green or semi-sintered carbide & ceramics,High-silicon aluminum alloys,Reinforced plastic,hard rubber,carbon,graphite

*Polycrystalline Cubic Boron Nitride (PCBN)

Hardened steels(HRC 45-68),Tempering steels, Super alloys: Cobalt and nickel base super alloys,Cast iron: Chilled iron, Meehanite iton, Sintered ferrous alloys: SCM, SNCM

Polycrystalline Diamond(PCD)	Polycrystalline Cubic Boron Nitride(PCBN)
Non-Ferrous materials	Ferrous materials
Aluminum Alloys Pistons,wheels,gearboxes,break cylinders Copper Alloys Copper,engine bearing,bushing,pump seats Highly abrasive materials Industrial ceramics,sintered ceramic,aluminium oxide,spark plug insulators Fibre products Carbon fibre,fibreglass,reenforced graphite,acrylic plastics,phenolic plastic Wood and stone Fibreboard,plywood,melanimic panels,granite,sandstone	Hard Cast Iron Pumps,Impeller,Shafts Soft Cast Iron Engine blocks,Brake Rotors,Brake Drums Clutch Plates Sintered Iron Value Seats,Cam Shafts,Gears Hardeded Steels Pinion Gears,Side Gears, Transmission,Shafts,Bearings Superalloys Turbine disk,Turbine blade, Turbine,Shrouds,Engine shafts,Turbine Vanes

VNGA 160408 PCD cutting inserts PCBN turning inserts

1.the brief introduction of VNGA 160408 PCD cutting inserts PCBN turning inserts

Compared with Carbide inserts,Coated carbide inserts,Ceramic inserts, PCD cutting inserts PCBN turning inserts have high hardness,wear resistance and high drilling efficiency,their life are 50-200 times of carbide inserts

 2.the specification of  PCD cutting inserts PCBN turning inserts

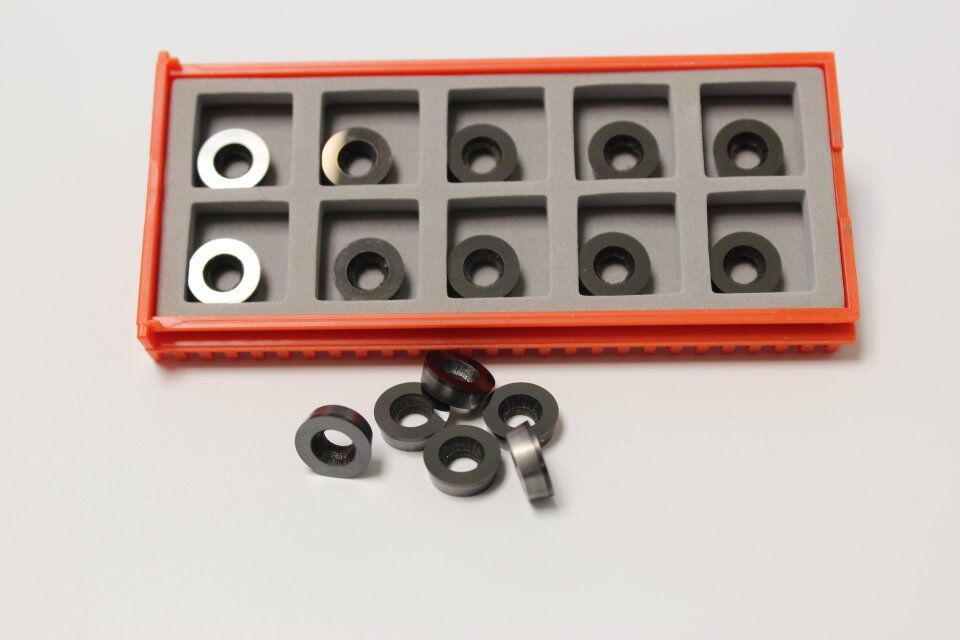

RCGX Solid CBN V	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	RCGX060500	6.35	6.35	4.76
	RCGX090700	9.525	9.525	7.94
	RCGX120700	12.7000	12.7000	7.94
	RCGX151000	15.875	15.875	10.0
	RCGX191000	19.05	19.05	10.0

RCGX Solid CBN Y	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	RCGX060400	6.35	6.35	4.76
	RCGX060500	6.35	6.35	5.0
	RCGX060700	6.35	6.35	7.94
	RCGX090700	9	9.525	7.94
	RCGX120700	12	12.7	7.94

RNMN CBN Inserts	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	RNMN060400	6	6.35	4.76	0
	RNMN120700	12	12.7	7.94	0
	RNMN160700	16	16	7.94	0
	RNMN190700	19	19.05	7.94	0
	RNMN201000	20	20.00	10	0
	RNMN251000	25	25.40	10	0

RCMN Solid CBN	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	RCMN060400	6	6.35	4.76	0
	RCMN090400	9	9.525	4.76	0
	RCMN090600	9	9.525	6.35	0
	RCMN120600	12	12.7	6.35	0
	RCMN120700	12	12.7	7.94	0
	RCMN150700	15	15.875	7.94	0
	RCMN190700	19	19.05	7.94	0

SNMN Solid CBN Inserts	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	SNMN090308	9.520	9.525	3.18
	SNMN090412	9.525	9.525	4.76
	SNMN120712	12.700	12.700	7.94
	SNMN150704	15.875	15.875	7.94
	SNMN150708	15.875	15.875	7.94
	SNMN201020	20	20	10

CNMN Solid CBN	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	CNMN090404	9	9.525	4.76
	CNMN090412	9	9.525	4.76
	CNMN120408	12	12.7	4.76
	CNMN120712	12	12.7	7.94
	CNMN120808	12	12.7	8.0
	CNMN160712	16	15.875	7.94
	CNMN160716	16	15.875	7.94

TNGN Solid CBN	Insert Type	Size Info
		L (Mm)	I.C (Mm)	S (Mm)	R (Mm)	D (Mm)
	TNGN110304	11	6.35	3.18
	TNGN110308	11	6.35	3.18
	TNGN110312	11	6.35	3.18
	TNGN160404	16	9.25	4.76
	TNGN160408	16	9.25	4.76
	TNGN160412	16	9.25	4.76

* Other Types of Inserts like RCGN,RCGN,SNGA,SCMW,TNGA,CNGA,VNGA,VCGW,CCMW,TCMW CBN Inserts All Available upon Request,Our Products Test Well In European Countries,Japan, and USA Markets.
