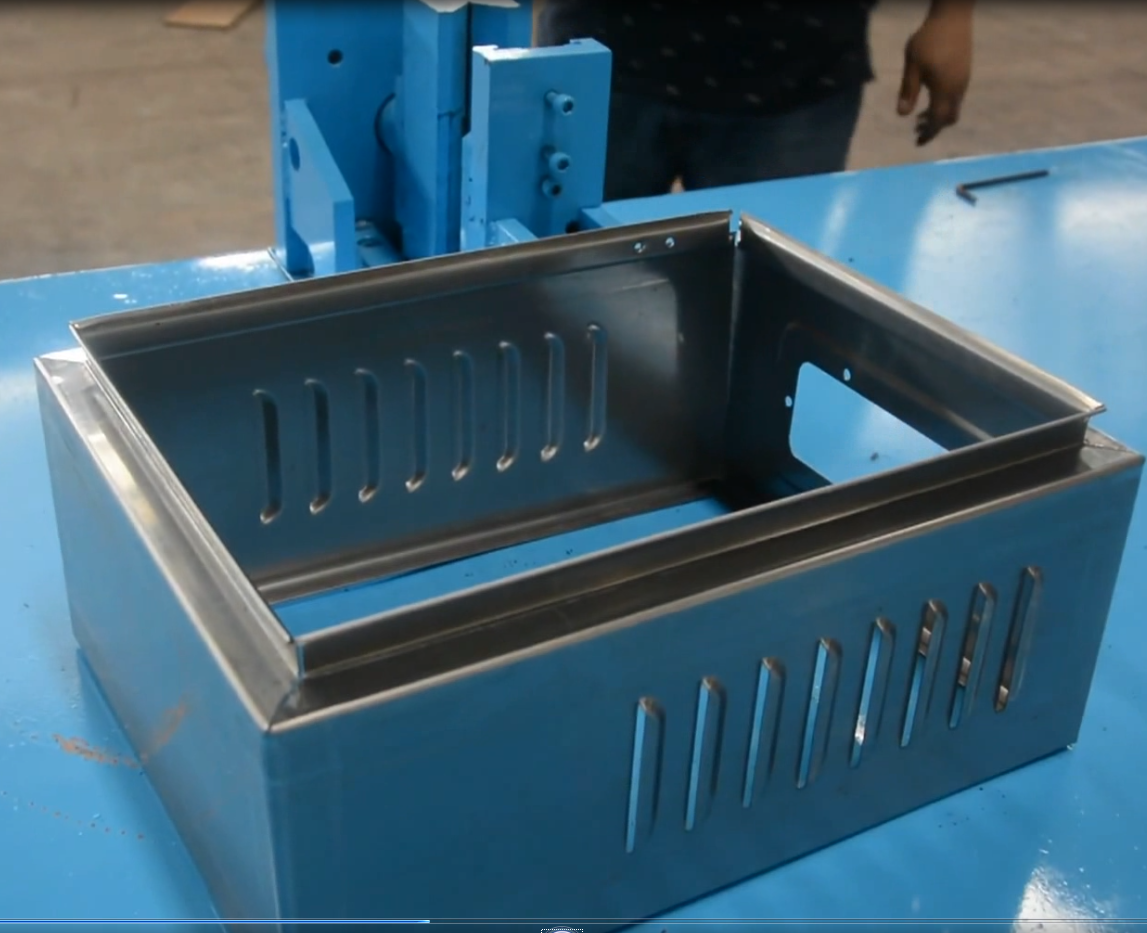

China hot sale electrical meter box machine & distribution box roll forming machine for sale



1.Brief Introduction:



Meter box forming process

(A) 2 in 1 Uncoiler StraighteningServo feederHydraulic press breach device Guide deviceRoll forming machineHydraulic punchShear device (including knife)Finished Product rack

(B) Bending machine with tool



2.Electrical box roll forming equipment Techincal parameters:

No.	ITEM		PARAMETER	REMARK
1	MATERIAL	Type	Cold-rolled strip steel, galvanized sheet
		T.(mm)	0.8-1.2mm
		Yield Strength (Mpa)	Q235
2	Forming product Width		150,200,250,300,350mm
3	Forming speed (m/min)		2-8m	Including hole
4	Forming main power (KW)		7.5 KW	FYR
5	Hydraulic power (KW)		18.5 KW	FYR
6	Bending power (KW)		3 KW	FYR
7	Voltage		AC380V,50Hz,3P



3.Performance features:
Shenzhen Superda Machine Co.,Ltd meter box produciton line imported PLC control, LCD touch screen, man-machine interface. People Interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator Control and modify the control parameters, and real-time monitoring the Equipment status & parameters and fault indication. Workpiece length Digital setting, adjustable length can be adjustable as well. Real-time Monitoring of equipment operating status and fault indication.
