| Usage: | Automobile;Auto;Car |
|---|---|
| Material: | Steel |
| Load Type: | Extension |
| Style: | Cylinder |
| Brand Name: | JARCH |
| Model Number: | JSR-G 3050 N |
| Place of Origin: | China (Mainland) |
| Type: | Garden Hose Reels |
| Feature: | Adjustable,Anti-Abrasion,Anti-Corrosion,Anti-UV,Flexible,Freestanding,Rewindable,Soft,Telescopic Handle,Wall Mountable |
| Metal Type: | Steel |
| Color: | RED |
| Garden Hose Reel Type: | Hose Reels |
| Hose Included: | Yes |

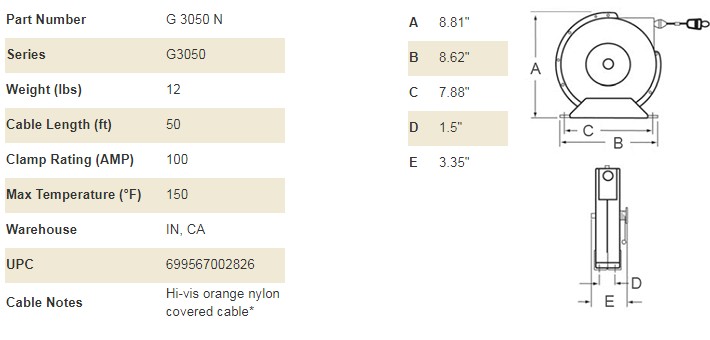

| Weight (lbs): | 12 |
| Product Dimensions: | 12 x 11 x 5 inches |
| Cable Length (ft): | 50 |
| Clamp Rating (AMP): | 100 |
Quick Details
Specifications

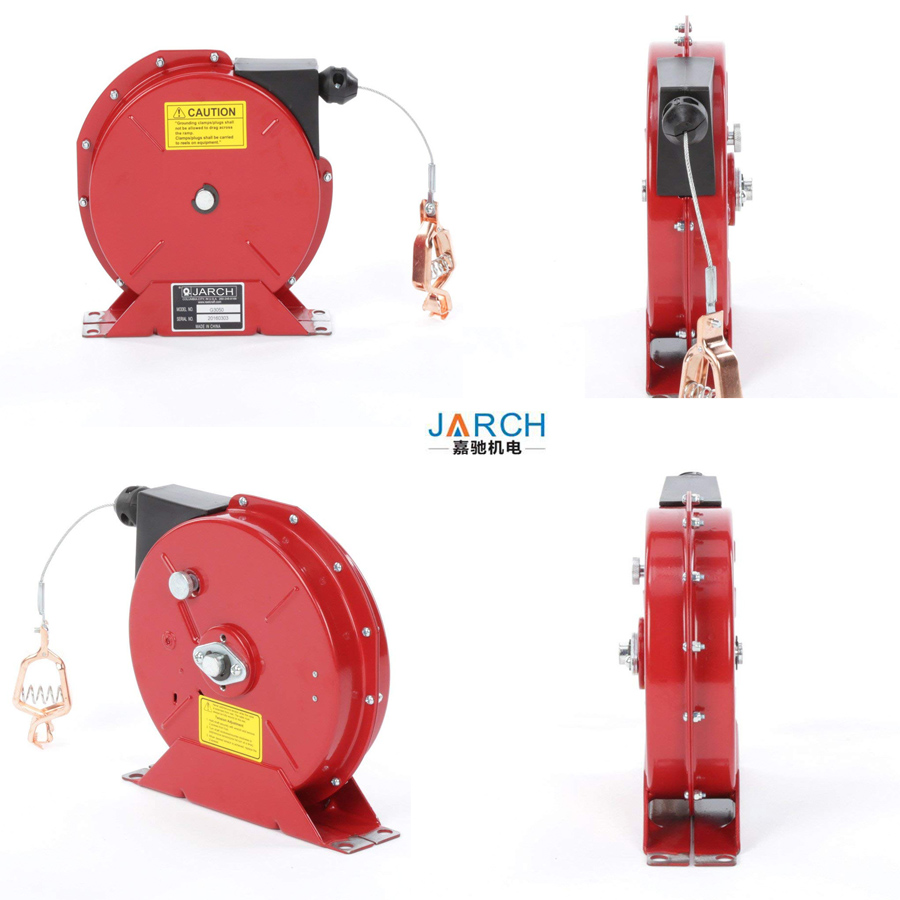

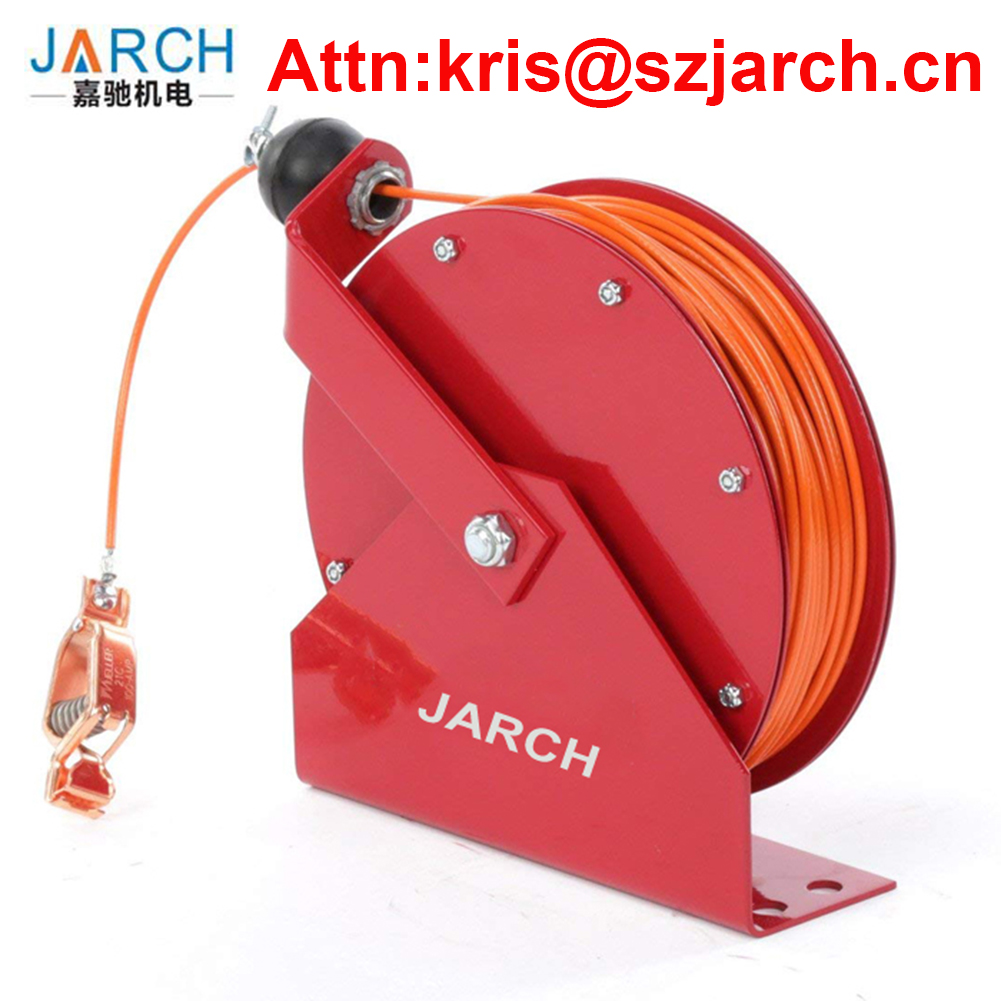

JARCH 50 feets cable Spring Retractable Grounding Reels
Product Description
JARCH'S static discharge reels are used to ground equipment operating in hazardous atmospheres. When properly clamped to the ground, the static discharge reel dissipates static electrical buildup, reducing the chances of sparking and the potential for explosion. *Nylon covered cable (1/8" O.D.).
Benefits
***Strength - Made from industrial grade carbon steel.
***Compact design - Reels require little mounting space for applications where space is a critical requirement.
***Corrosion resistance - Steel components are powder coated for superior corrosion resistance. Steel cable available with nylon coating for longer service life.
***Easily adjust spring tension - Loosening two screws allows user to add or remove spring tension.
FAQ
1.What technical data should be provided for our Customized slip ring,hose reel,rotary joint,carbon brush model.
1.What technical data should be provided for our Customized slip ring,hose reel,rotary joint,carbon brush model.
A:
If you want to costomize the special slip ring model, you need provide details as below:
A. Operatring speed(RPM)
B. the type of installation
C. Outline size
D. Channels(the No. of single wire besides cable)
E. Rated voltage & current for power rings and signal rings
F. the signal type and related Parameters(very important)
G. Operating temperature h.IP(sealing requirements)
2.how long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,
15 to 40 days for complex customized porducts.
3.
to increase spring tension:
to reduce spring tension:
Adding wraps of hose will increase spring tension. this can be accomplished by pulling out approximately 10 feet of hose, hand feed hose back up through roller bracket assembly* until loop is large enough to slip over sheave. Add two or three wraps until desired tension is achieved. Do not exceed spring capacity.
to reduce spring tension:
this can be accomplished by removing wraps of hose from the reel sheave. Remove wraps of hose from the sheave, one wrap at a time, until desired tension is obtained.
*for Series D9000 reels, you will have to remove the bumper and control handle then feed end of hose through roller bracket assembly to add or remove wraps of hose from the reel drum.
