| Moving Type: | Wheel Loader |
|---|---|
| Type: | Front Loader |
| Brand Name: | SEM |
| Condition: | New |
| Year: | 2018 |
| Make: | SEM |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Warranty: | One year |
| Certification: | ISO CCC |
| Rated Load: | 5 ton |
| Dimension(Long * Breadth * High): | 8085x2963x3463mm |
| Place of Origin: | China (Mainland) |
| Model Number: | SEM655D |
| Color: | yellow |
| Engine: | C-ummins |
| Power: | 162kw |
| Tire: | 23.5-25 |
Quick Details
Specifications

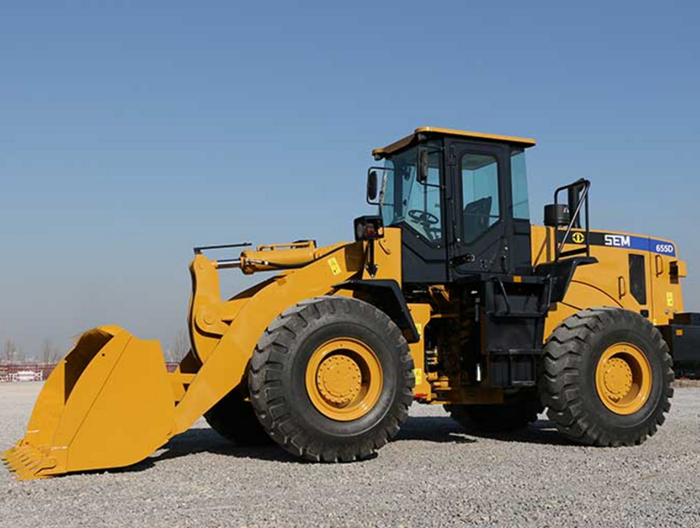

5 ton wheel loader SEM655D 3 cubic front loader
ONE YEAR WARRANTY
PLACE ORDER NOW and GET FREE WEARING PARTS!
Product Description
Main Specifications | |
Rated Load |
5000 kg |
Operating Weight with Standard Bucket |
16000 kg |
Bucket Capacity |
2.7-4.5 m |
Wheel Base |
3000 mm |
Overall Dimension (mm) |
8062*2963*3348 |
Engine | |
Model |
C-ummins |
Rated Power |
162 kW |
Rated Speed |
2000 r/min |
Displacement |
9.242 L |
Operating Specifications | |
Breakout Force |
159 kN |
Dump Clearance |
3100 mm |
Articulated Angle |
381 |
Implement Hydraulic | |
Implement System Type |
Twin pump flow merging hydraulic system |
Boom Raise Time |
4.92 s |
Hydraulic Cycle Time |
8.8 s |
System Presure Setting |
17 Mpa |
Transmission | |
Transmission Type |
Countershaft, power shift |
Transmission Gears |
F4/R4 |
Torque Converter Type |
Sigle stage 3 elements |
Maker & Type |
TR200 |
Forward I/ Reverse I |
7.9/7.9 km/h |
Forward II/ Reverse II |
15/15 km/h |
Forward III/ Reverse III |
23/23 km/h |
Forward IV/ Reverse IV |
39/39 km/h |
Brake System | |
Service Brake |
Dry & caliper, air to oil control |
Parking Brake |
Drum type shoe brake, |
Steering System | |
System Type |
Flow amplifying |
Steering Pump Type |
Gear pump |
System Presure Setting |
16 Mpa |
Steering Angle (L/R) |
351 |
Axle | |
Main Drive Type |
Spiral bevel gear, single stage |
Final Drive Reduction Type |
Planetary type, singe stage |
Rear - Oscillating +/- |
11 |
Tires | |
Size |
23.5-25 |
Type |
PR |
Layer |
16 |
Textured Type |
L3/E3 |
Packaging & Shipping
There are two ways shipping,
1. Shipping in 40HC container wth cab and tires disassembled. Freight is much lower but need customers assemble it when you receive.
2. Shipping by bulk carrier or RORO. Freight is higher than by container.
FAQ
1. Question: What's your payment term?
Answer: We accept T/T(30% down payment and balance before shipping) and L/C mostly. but if you prefer other payment terms please contact us for further information.
2. Question: how about the delivery time?
Answer: Fot the wheel loader we will ship it in 30 days after down payment. and in one week if there are in stock.
3. Whats's the warranty time?
Answer: We provide one year warranty for the SEM 5 tons wheel loader.
4. how do you offer the after sale service?
Answer: We offer after sale service life long. Engineers are available to go abroad for training and spare parts will be sent at the soonest.
Company Information
We are one of the most professional supplier of construction machinery in China. We aim to supply our customer the best quality products with lowest cost. Warmly wlcome friends all over the world come to visit.
Please contact for more information. We are available 24 hours.
