| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Certification: | ISO9001:2008 |
| Brand Name: | JXWKD |
| Type: | Ball Mill |
| Condition: | New |
| Warranty: | 1 YEAR |
| Weight: | 145 KG |
| Dimension(L*W*H): | 640*560*730mm |
| Model Number: | GJ-I |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 100 g /time |
| Power(W): | 1.1 KW |
| Motor Type: | AC Motor |
| Color: | Multi color |
| Material: | High manganese steel |
| OEM: | Yes |
Quick Details
Specifications
Product Application of LMZ laboratory ring pulverizer
Laboratory Sample Pulverizer is a small lab grinding machine for grinding the ore/material samples into powder, which has been widely used in the laboratory of the geology, mining, metallurgy, coal, power, chemistry and building industries, for the none pollution sample testing.
the sample grinding mill gets an "automatic dust proof" and a "pot anti-loose" device, which provide the machine advantages of low noise, no dust, and easy operation.
the machine adapt high frequency vibrating grinding method to make the power fine and event, no need screening and shrinking, prevent sample mixing.
Main Features of LMZ laboratory ring pulverizer
1. High efficient no need screening again, the output material could be used for testing directly.
2. Digital timing screen, special designed high quality motor, with long service life.
3. with shock-absorbing stand.
4. Sealed grinding pot, dust proof, no pollution.
5. Low noise, smooth operating, complete sealed machine, with high safety operation standard.
6. High standard sealing design, no leaking for dry or wet method grinding.
7. Reliable, evenly output size, short grinding time.
8. Simple and reasonable structure, good out look, easy to operate, maintenance, and clean.

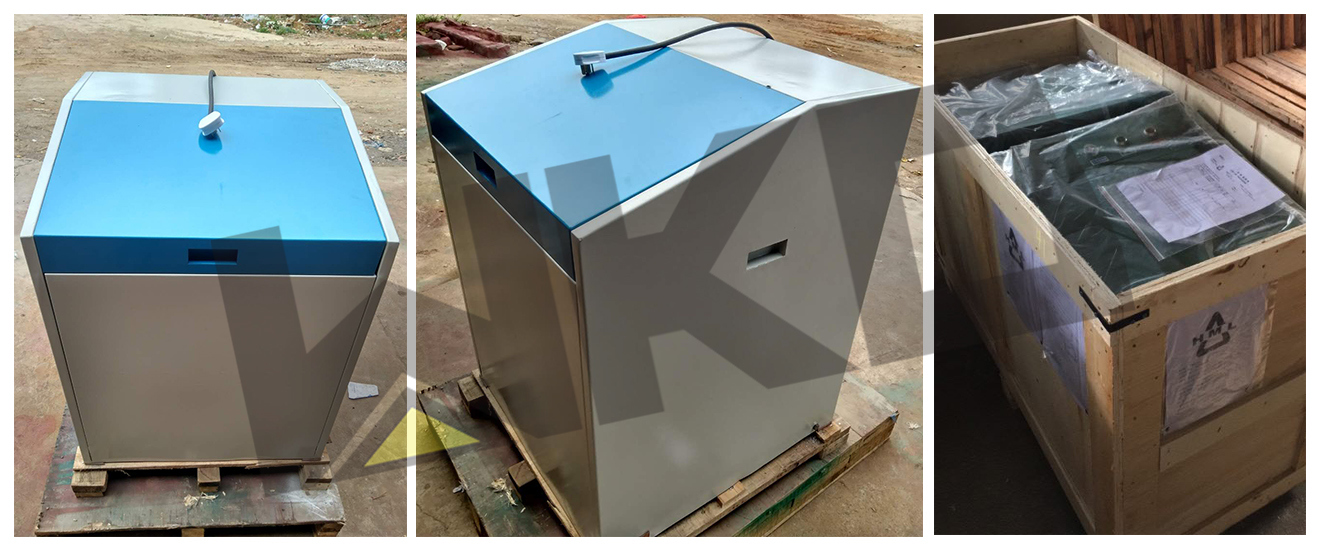

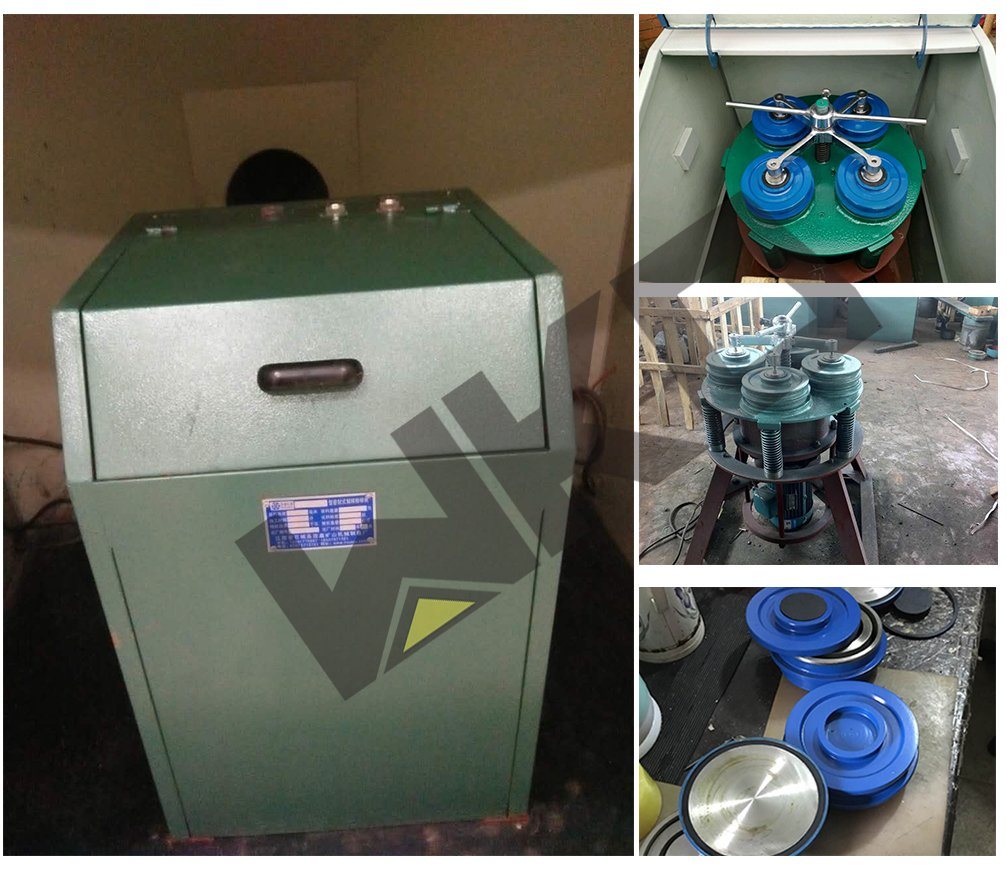

Laboratory Sample Pulverizer
They come it many varied grinding canister size and capacity. The most popular models being:
1MZ-100: single grinding bowl of 100 gram sample capacity
1MZ-200: single pulverising bowl of 200 gram capacity
1MZ-400: single grinding bowl of 400 gram capacity
7MZ-100: 7 grinding bowl of 100 gram capacity

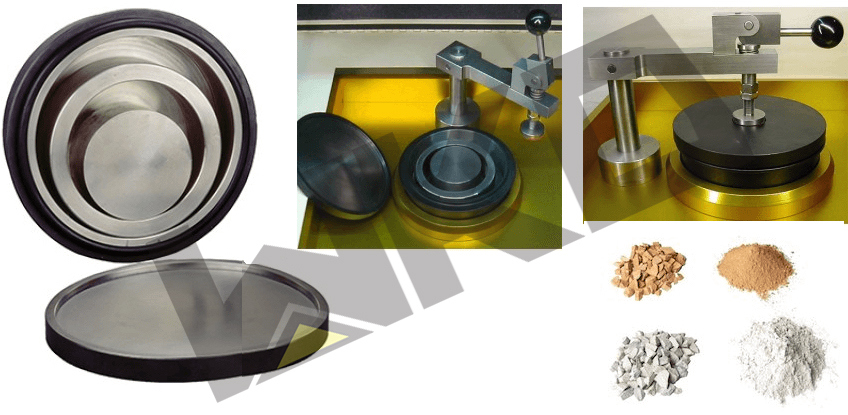

Working principle for Micro powder pulverizer coal ore vibratory disc mill for nano powderWorking principle is vibration milling type, materials feed into the pot, high speed spinning crushingring and hammer will grind the material ready within 1-5 minutes.the input materials should be brittle, and dry, out put size is between 80-200 mesh, if require even finer size, the machine can be designed according special requirement.
Company Information
Our goal is to provide one-stop service for you and assist you to solve all problems from investment to his return in the field of mining, including the preliminary mineral analysis, mineral processing test, engineering design, equipment debugging and technical training etc..
We are expert especially at mining separating and lab mining plant, main products as below:
Gold trommel wash plant
Shaking table
Spiral chute separator
Centrifugal gold concentrator
Jig separator machines
Waste recycling machine
Grinding and mill crusher
Flotation cell machine
Magnetic separator
Laboratory mining plant
the sample grinding mill gets an "automatic dust proof" and a "pot anti-loose" device, which provide the machine advantages of low noise, no dust, and easy operation.
the machine adapt high frequency vibrating grinding method to make the power fine and event, no need screening and shrinking, prevent sample mixing.
Main Features of LMZ laboratory ring pulverizer
1. High efficient no need screening again, the output material could be used for testing directly.
2. Digital timing screen, special designed high quality motor, with long service life.
3. with shock-absorbing stand.
4. Sealed grinding pot, dust proof, no pollution.
5. Low noise, smooth operating, complete sealed machine, with high safety operation standard.
6. High standard sealing design, no leaking for dry or wet method grinding.
7. Reliable, evenly output size, short grinding time.
8. Simple and reasonable structure, good out look, easy to operate, maintenance, and clean.
Laboratory Sample Pulverizer
They come it many varied grinding canister size and capacity. The most popular models being:
1MZ-100: single grinding bowl of 100 gram sample capacity
1MZ-200: single pulverising bowl of 200 gram capacity
1MZ-400: single grinding bowl of 400 gram capacity
7MZ-100: 7 grinding bowl of 100 gram capacity
Working principle for Micro powder pulverizer coal ore vibratory disc mill for nano powderWorking principle is vibration milling type, materials feed into the pot, high speed spinning crushingring and hammer will grind the material ready within 1-5 minutes.the input materials should be brittle, and dry, out put size is between 80-200 mesh, if require even finer size, the machine can be designed according special requirement.
Technical Parameters of LMZ laboratory ring pulverizer
| model | Feeding size(mm) | Weight of charge(g) | Discharge granularity(mesh) | Grinding time(min) | Motor power(kw) | Total weight(kg) | Overall size(mm) |
| GJ-I | <12 | 100 | 120-200 | 1-3 | 1.1 | 145 | 640*560*730 |
| GJ-II | <25 | 200(400) | 120-200 | 1-3 | 1.1 | 225 | 800*740*910 |
| GJ-AX | <12 | 700 | 120-200 | 2-5 | 1.1 | 300 | 800*740*910 |
| GJ500-1 | <25 | 500 | 120-200 | 1-3 | 1.1 | 280 | 800*740*910 |
| GJ-IA(MZ-100) | <12 | 100 | 100-200 | 1-3 | 1.1 | 115 | 550*540*750 |
| 2MZ-100 | <12 | 2*100 | 100-200 | 2-4 | 1.1 | 150 | 530*530*800 |
| 3MZ-100 | <12 | 3*100 | 100-200 | 2-4 | 1.1 | 160 | 530*530*800 |
| 4MZ-100 | <12 | 4*100 | 100-200 | 2-5 | 1.5 | 260 | 740*740*950 |
| 5MZ-100 | <12 | 5*100 | 100-200 | 2-5 | 1.5 | 270 | 740*740*950 |
| 6MZ-100 | <12 | 6*100 | 100-200 | 2-5 | 1.5 | 280 | 740*740*950 |
| 7MZ-100 | <12 | 7*100 | 100-200 | 2-5 | 1.1 | 300 | 740*740*910 |
| 1MZ-200 | <20 | 200 | 100-200 | 2-4 | 1.1 | 150 | 530*530*800 |
| 1MZ-400 | <25 | 400 | 100-200 | 2-5 | 1.1 | 280 | 740*740*910 |
| MZ-1000 | <12 | 1000 | 100-200 | 2-5 | 1.1 | 239 | 740*740*910 |
| 2MZ-200 | <20 | 2*200 | 100-200 | 2-5 | 1.5 | 257 | 740*740*950 |
| 2MZ-400 | <25 | 2*400 | 100-200 | 2-5 | 1.5 | 257 | 740*740*950 |
| 3MZ-200 | <20 | 3*200 | 100-200 | 2-5 | 1.5 | 265 | 740*740*950 |
| 3MZ-400 | <20 | 3*400 | 100-200 | 2-5 | 1.5 | 280 | 740*740*950 |
| 4MZ-400 | <20 | 4*400 | 100-200 | 2-5 | 1.5 | 278 | 740*740*950 |
| 4MZ-200 | <20 | 4*200 | 100-200 | 2-5 | 1.5 | 278 | 740*740*950 |
| LMZ-120 | <12 | Continuous loading unloading | 120-320 | 2-5 | 1.1 | 160 | 520*520*1030 |
