Overview

this machine is specially designed for three pin shaft--tripod spider shape work pieces.

Three pin shaft, also known as trident universal joint, C.V. Joint, or bearing rack, is an important component of universal drive device. It is used in car steering system, and the application is increasing.

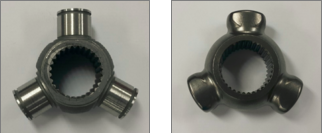

According to the cross section, it can be divided into spherical, circular, elliptical and so on. KSHS now have experience of spherical and circular ones, don't have elliptical ones grinding experience.

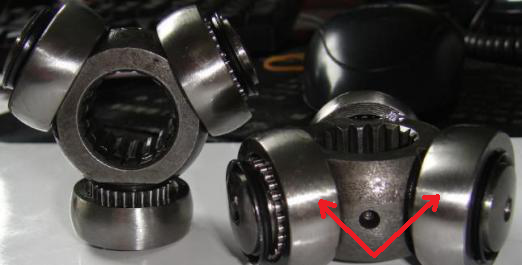

Three pin shaft is used with needle roller bearings.





Equipments instructions

1. Grinding wheels

Use corundum grinding wheel.the outer circle shape matches the pin shaft.Generally processing 4 workpieces (12 pins) trim once, time is a few seconds.

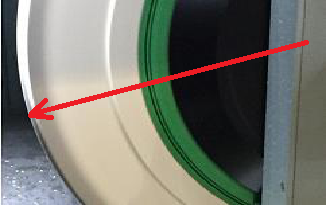

Grinding wheel edge is not normal cylindrical shape--according to shape of shaft pin , made into various shapes.



2. Dressing wheel

There are two kinds of dressing wheels.

1) Shaping dressing roller-- the dressing tool is made to corresponding shape of the corundum grinding wheel, with high efficiency and precision.

2)Dish type dressing wheel: dresser is made into a dish. When dressing, the corundum grinding wheel is dressed according to NC control track, with a little slower  efficiency and high precision too.



3. Operation system



Use Yaskawa operation system.

PLC control panel operation, call the program directly when changing workpiece model.

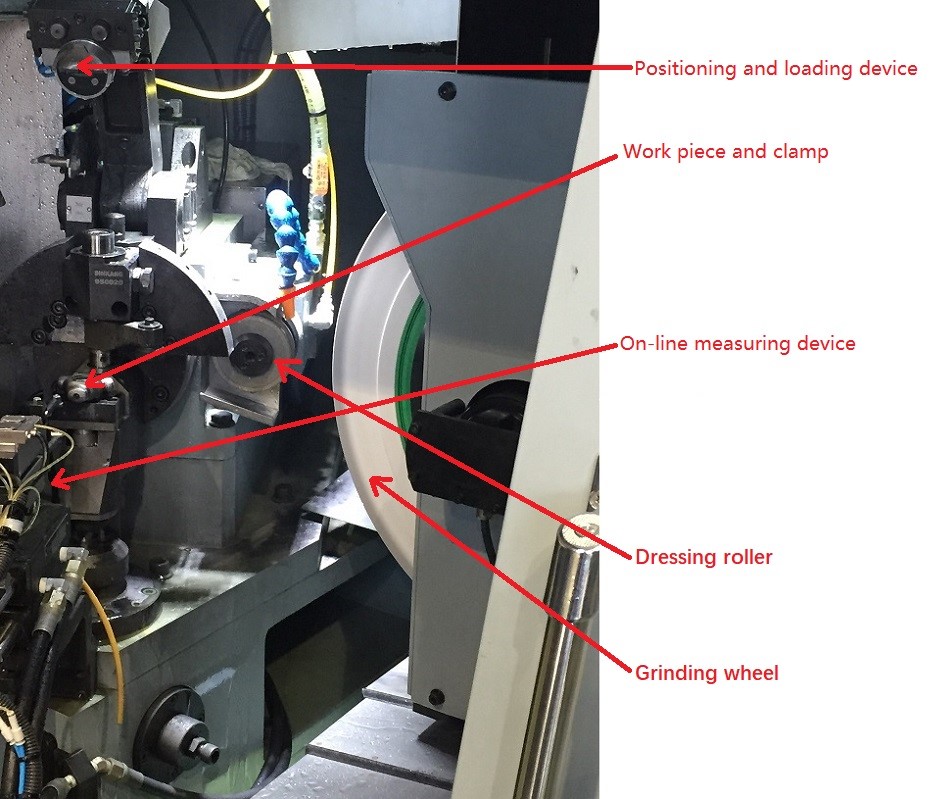

4. Internal picture







Technical Specifications:

Item		Specifications
Workpiece		Spider
Grinding Wheel Size		610 24 Max304.8
Rotation rate of the wheel head		2250 rpm max
		Driving speed: max. of 3000 m/min
Wheel head motor		7.5KW  4P
Lubrication of the wheel head		Oil mist-lubricated bearing type
Flued opening axis	Actual conveyance distance	170mm
(X-axis)	Allowable distance of conveyance	180mm
	Ball screw	40 8
	Servo motor	1.8 KW
	Max. Movement speed	200mm/sec
	Unit for determining the least position	0.001/pulse
Flued opening axis	Actual conveyance distance	280mm
(Z-axis)	Allowable distance of conveyance	300mm
	Ball screw	50 10
	Servo motor	2.9 KW
	Max. Movement speed	200 mm/sec
	Unit for determining the least position	0.001/pulse
Main axis(C-axis)	Servo motor	4.4 KW
	Max. Rotation rate	600 rpm
	Unit for determining the least position	0.001/pulse
Loader rotation axis	Servo motor	750W
(A-axis)	Reduction rate	1/50
Top/Bottom axis of loader	Servo motor	750 W
(B-axis)	Reduction rate	1/50
	CP rack & pinion	150 mm (per rotation of the pinion)
Product fastening mode		Product fixture + collet
Motor	Hydraulic pump	2.2 KW  4P
	Lubricant pump	15W
	Rotary thread driving motor	750W
Capacity of hydraulic tank		100L
Dimensions (width x depth x height)		3,300 2,700 2,200
Weight		10,000 kg



Efficiency

1. Normal circle section: 0.25mm machining allowance, 50 seconds/piece;



2. Oval section: 0.25mm machining allowance, 65 seconds/piece;

(such products are the hardest to process, and procedures are key.)



3. Spherical section: 0.45mm  machining allowance, 65 seconds/piece



Accuracy



Pin shaft diameter 20.350.08	CPK1.33
Pitch diameter	50.20.025
Position accuracy	0.1
Pin root diameter	19.08-19.38
Roughness Ra	Ra0.8
Pin root R angle	R0.5-R1.5
Grinding surface R angle	R9.55-R9.62
Grinding surface profile	0.008
Center height	19.880.05
Scale division	12010'
No crack appearance	Drawing standard

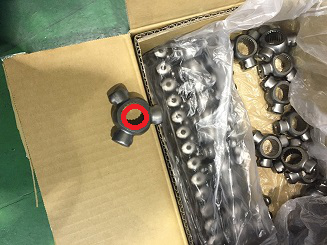

Workpiece examples





Origin:

Made in Korea.

Quality control:

ISO9001:2008

CE

Warranty:

1 Year

Delivery time:

30-90 days after advance payment

Shipping packages:

Wooden cases
