| Brand Name: | YinXun |
|---|---|
| Wavelength: | 75~120 |
| Data Rate: | 40~100 |
| warranty: | ISO 9001/CE |
| Connector: | E1 |
| Model Number: | ZMUX-3030 |
| Place of Origin: | China (Mainland) |
| Optional interface number: | 31 |
| Size: | 1U high 19 inches |
Quick Details
Specifications
Product Overview
ZMUX-3030 is interface modular design, and supports very flexible configuration, according to the customers' requirement. the business interface module is a single card, to meet the needs of customers. It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. It has indicator light, which can show the operating status of the equipment. ZMUX-30 is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.

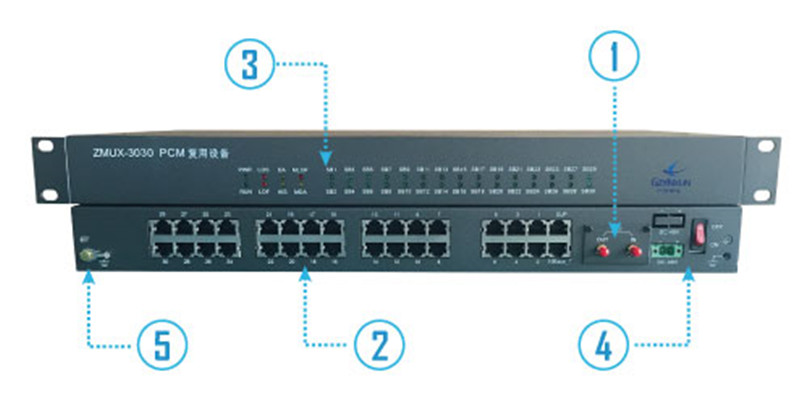

Schematic diagram of ZMUX-3030
| Interface NO. | Interface Name | Instruction |
|---|---|---|
| Link interface | 1 channel E1 (2M) electrical port, 75or 125 optional | |
| User interface | 30 channels user interface, designed as modular.It can be inserted according to the actual application.(Compatible: voice calls, audio/EM, RS232, n*64k Ethernet) | |
| System indicator | Equipment alarm indicator lights, running lights. | |
| Power supply interface and Switch | -48V DC power supply plug (green), power switch (red) | |
| Ground terminal | Equipment grounding |
Features
* 1-30 service interfaces,1 module corresponding to 1 channel user interface, customize requirements
*support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.
* 1 channel E1 interface conforms to ITU-T G.703, 75or 125 optional.
* flexible configuration and expansion
* support built in power 1+1 protection

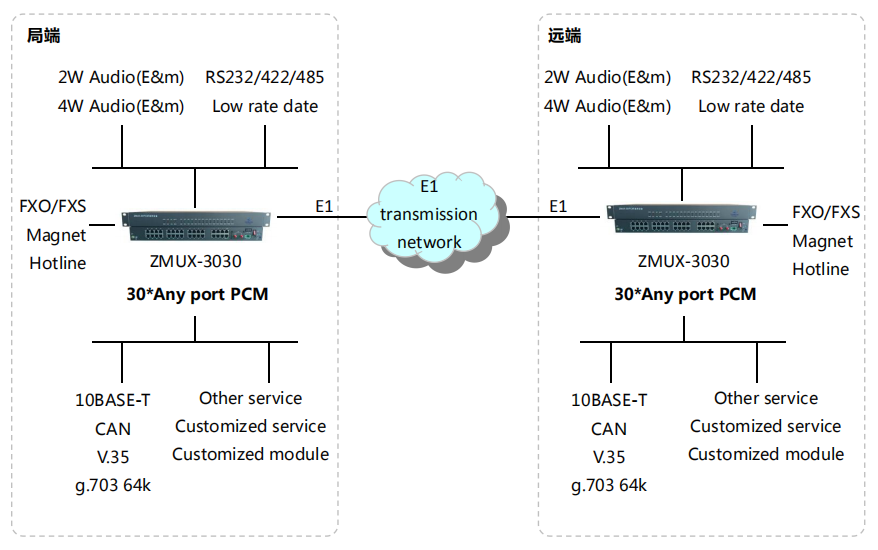

Network Diagram
ZMUX-3030 is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is very stable and reliable, international standard. We support ODM, OEM, technical cooperation
