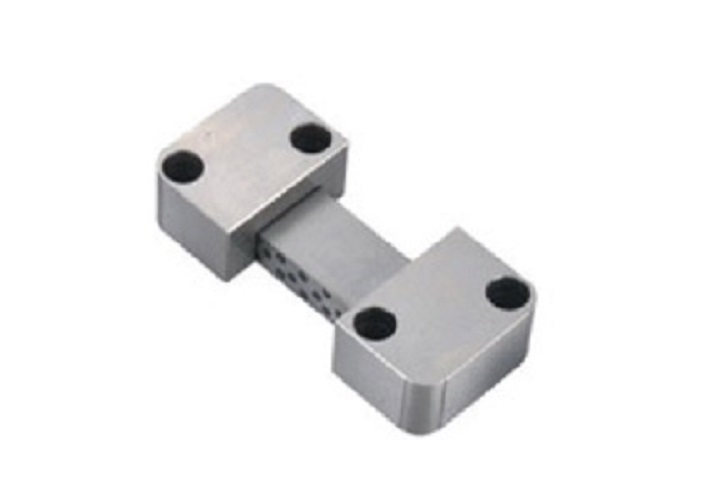

| Product: | Vehicle Mould |
|---|---|
| Product Material: | Metal |
| Shaping Mode: | Plastic Injection Mould |
| Brand Name: | JINHONG |
| material: | YK30+Graphite |
| Model Number: | JH045 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
| Material | Hardness | Heat Treatment |
| YK30+Graphite | HRC56~60 | Vacuumed |
| Type | B2 g5 |
L1 | t4 | t3 | t2 | t1 | d2 | d1 | L4 | L3 | L2 -0.5 -0.7 |
b3 | b1 |
| JH045 | 16 | 20 | 12 | 11 | 6.8 | 20 | 11 | 6.6 | 7 | 15 | 22 | 26 | 40 |
| 40 | |||||||||||||
| 20 | 25 | 14 | 13 | 6.8 | 22 | 11 | 6.6 | 7 | 19 | 27 | 31 | 45 | |
| 50 | |||||||||||||
| 25 | 32 | 15 | 14 | 6.8 | 25 | 11 | 6.6 | 9 | 27 | 36 | 35 | 50 | |
| 63 | |||||||||||||
| 32 | 40 | 20 | 19 | 9.0 | 32 | 15 | 9.0 | 11 | 35 | 46 | 45 | 63 | |
| 80 | |||||||||||||
| 40 | 50 | 23 | 22 | 11.0 | 36 | 18 | 11.0 | 15 | 40 | 56 | 60 | 85 | |
| 100 | |||||||||||||
| 50 | 56 | 25 | 24 | 13.0 | 40 | 20 | 14.0 | 18 | 48 | 66 | 74 | 100 | |
| 112 | |||||||||||||
| 125 | 140 | 63 | 62 | 21.0 | 112 | 32 | 22.0 | 25 | 135 | 150 | 110 | 160 |
