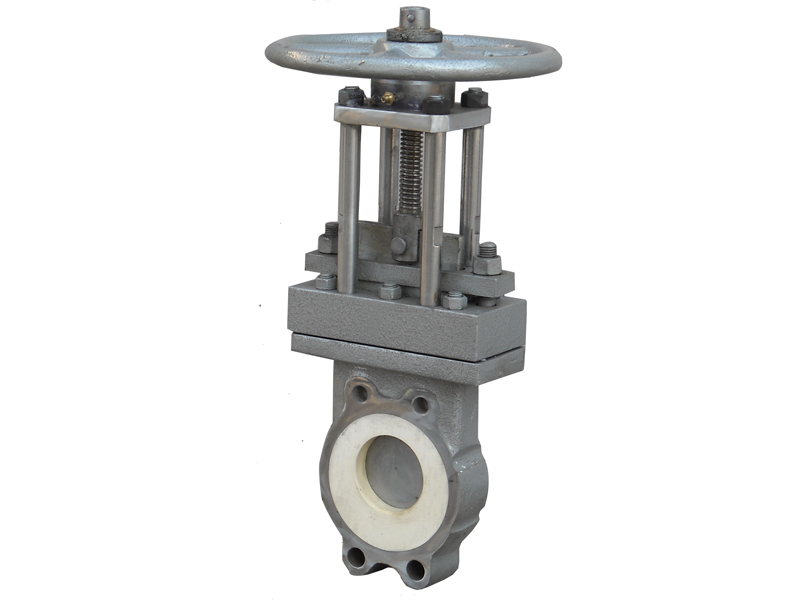

Electric ceramic lined knife gate valveIs composed by ceramic knife gate valve and elctric actuator. the sealing surface 0f Ceramic lined knife gate valve is engineer ceramic with high material hardness and longer worklife time.Besides,electric knife gate valve has a small weight and easy to install on site. It is widely used in any  two-phase medium of solid and liquid.



Benefits of knife gate valve
1.Quite short in structural length, and less material, reduce the overall weight of the pipeline system;
2. this sluice valve requires smaller space and knife gate valve can effectively increase the pipeline strength and reduces possible vibration.
3.Valve  disc made of  stainless steel has higher corrosion resistance and can effectively avoid leakage caused by corrosion of the disc.
4.the sealing surface of the knife gate valve is made of toughened ceramics with abrasion resistance and long service life.
5. Serving like a knife switch, this industrial valve can cut off sundries from the fluid.

Technical Specifications

Size: 2" ~48"
Pressure: Class 150   PN1.0~1.6MPa
Body materials: Carbon steel, stainless steel
Sealing materials: Engineer  Ceramic
Connection method: Flange,wafer type
Driving method: Electric

Application

Coal Washing Plant

Sewage Treatment

Paper Making Industry
