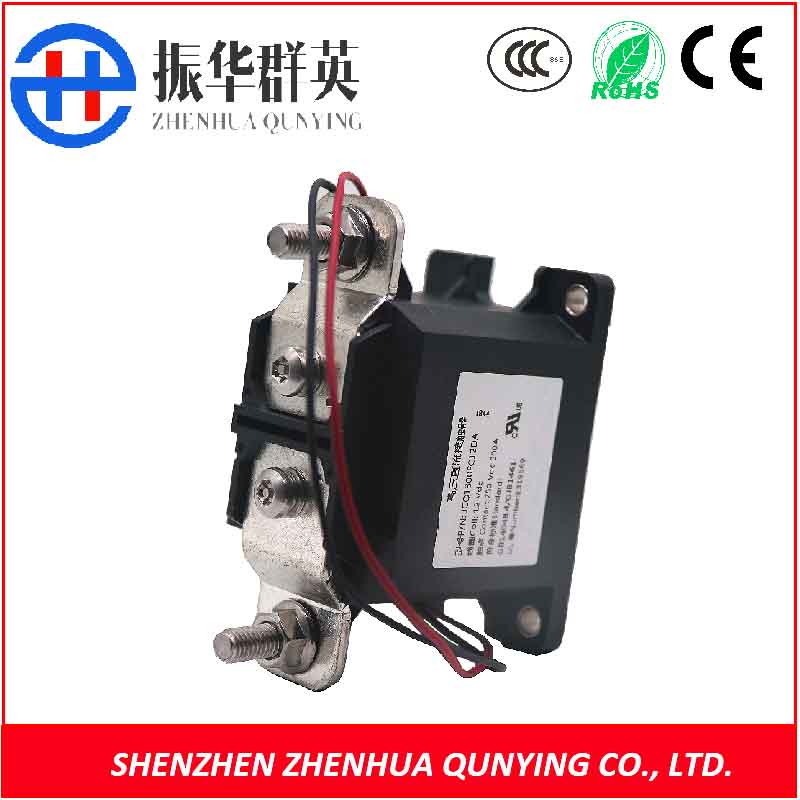

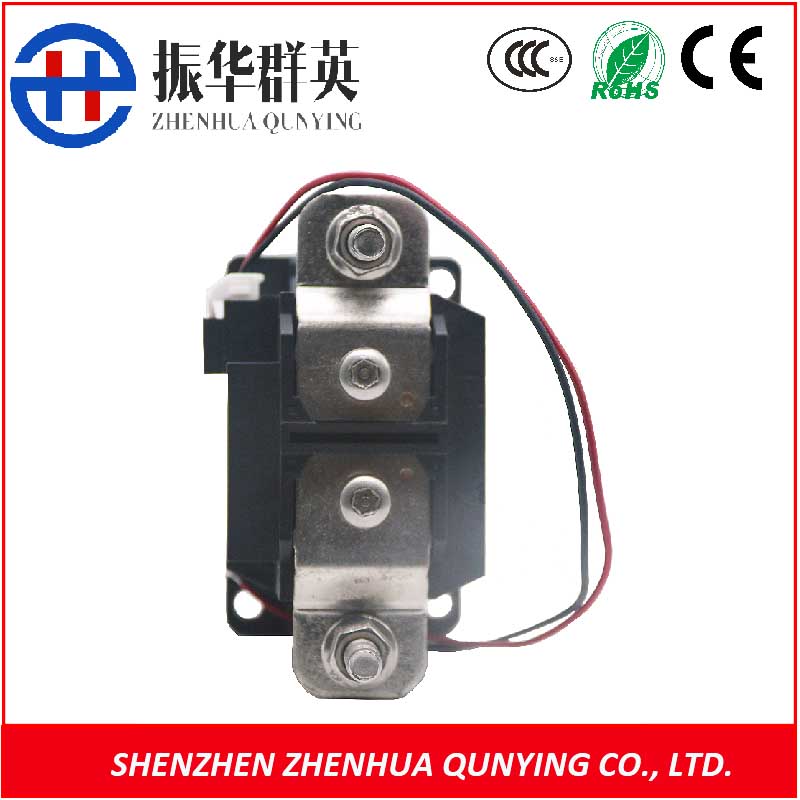

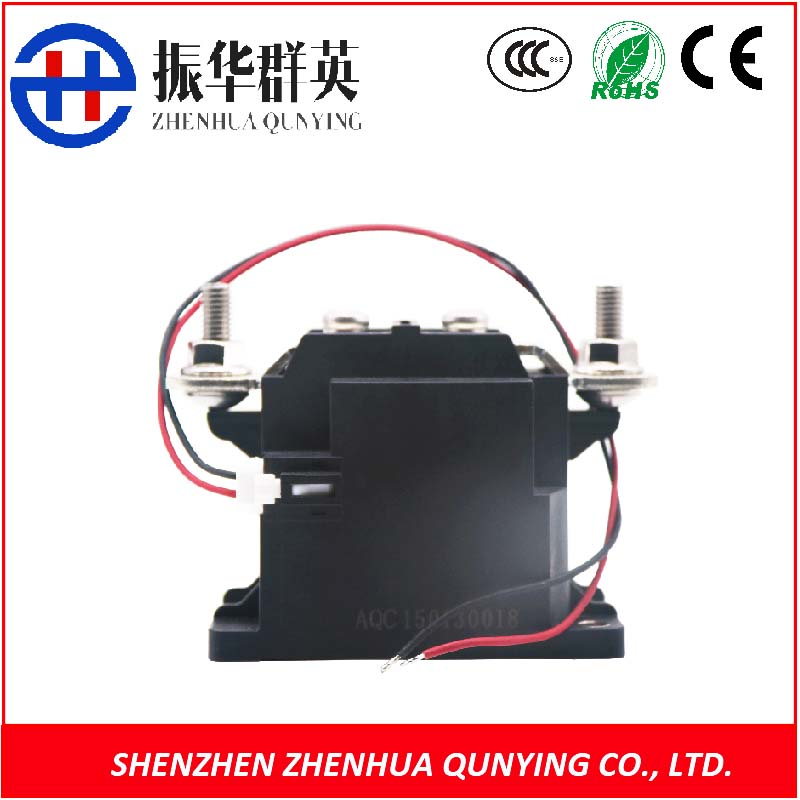

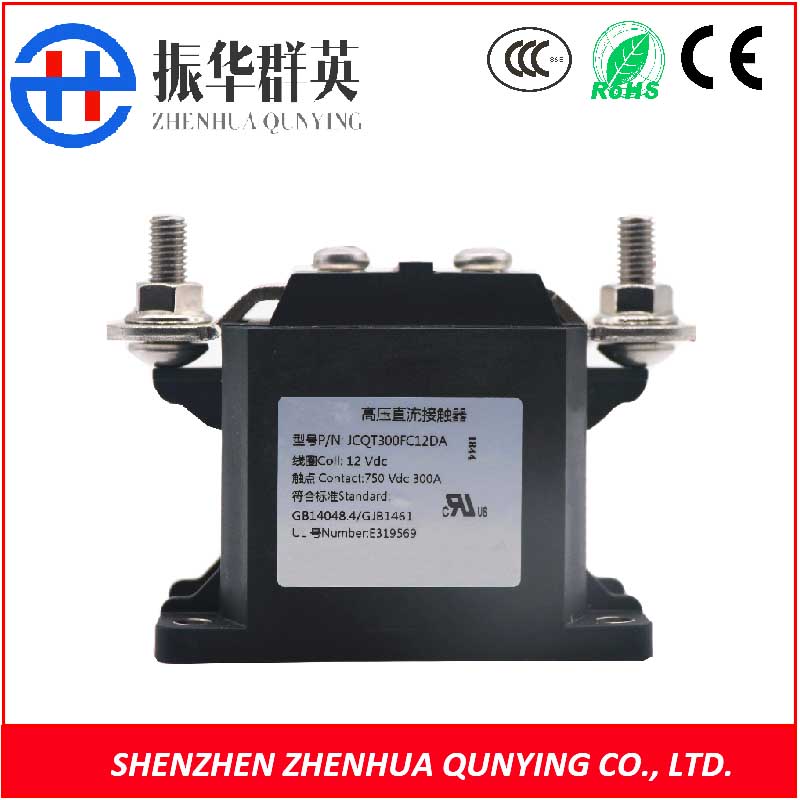

| Main Circuit Rating Current: | 300A |
|---|---|
| Main Circuit Rating Voltage: | 24V |
| Brand Name: | OEM |
| Model Number: | JCQT300F |
| Place of Origin: | China (Mainland) |
| Electric type: | contactor |
| Main contact system form: | SPST-NO-DM |
| Rated work system: | Continuous work |
| Rated working voltage: | 12-1000V |
| Rated control capacity: | 300A 750Vdc |
| Suction time: | 30ms Max. |
| Release time: | 10ms Max |
| Mechanical life: | 200000 times |
Quick Details
Specifications
1. Parameter Table
Main contact system form |
SPST-NO-DM |
Type of medium when breaking |
Shielding Gas |
Rated Work system |
Continuous Work |
Contact the polarity |
Polar |
Rated Working voltage (Ue) |
12-1000Vdc |
Rated Control capacity |
300A 750Vdc |
Releasing time |
10ms Max |
Mechanical life |
200000 Times |
Electric life |
1000times |
Insulation Resistance |
Initial State: 1000M Min |
2. the difference between High voltage DC contactor and Low voltage DC contactor?
wIth the small current switch control of high-current electrical Appliances, operating to reduce the risk factor, the contactor can achieve Remote control, maily used in the frequent start of the device.the Realization of small current switching control of high current electrical Appliances and to achieve the control loop and the main circuit isolation.

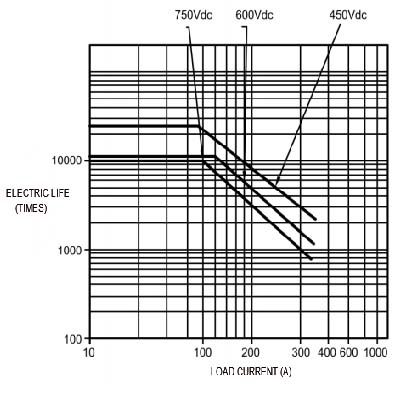

3. Cut off the electric life curve with load

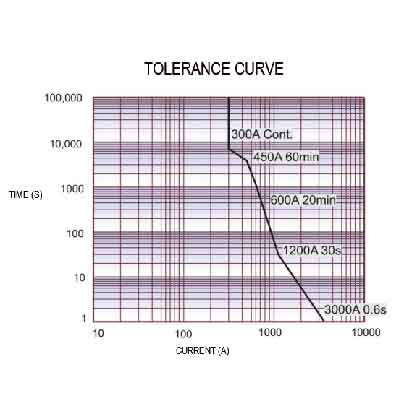

4. Charge Capacity curve

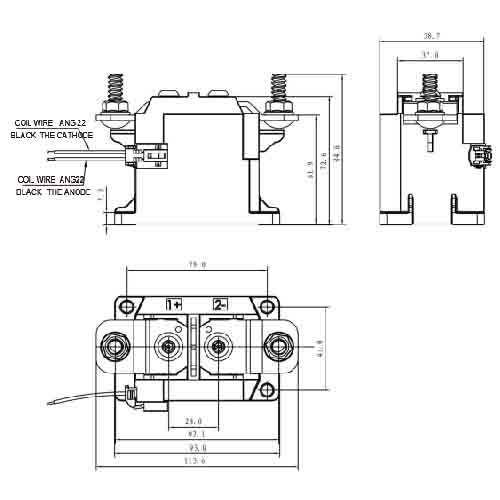

5. Dimensional Drawing
Remark:
A. Size of the Unit: mm, perspective:
B. No dimensional Tolerance is noted:
Nominal value <10mm 0.3
Nominal value 1050mm 0.5
Nominal value 50mm 0.8
C. Coil length and terminal specifications can be Customized according to customer requirements.5. the Wiring diagram
6. Coil Specification
the Product type |
Working Voltage |
the Suction voltage |
the Release voltage |
Maximum Starting current(rate voltage) |
Keep the current(at 20) |
Polarity |
JCQT300F |
12Vdc |
Us75%Max |
Us10%Min. |
3.75A |
0.5A |
|
24Vdc |
Us75%Max |
Us10%Min. |
1.88A |
0.25A |
