Product introduction: the valves disc is rubber-packed to get excellent sealing effect by the rubber's resilient deformation. Non-rising resilient seated gate valves solve the problem in general gate valves such as leakage, rusting etc. and saves installation space. It is used widely in tap water industry, sewage treatment, shipping construction, petroleum, chemicals, food, pharmacy, textile, electric power, metallurgy and energy system's pipeline to adjust and shut off fluids.

Characteristics:
1. the seal is designed with dustproof ring plus three " O" -seal ring, reliable sealing, on-line replaceable.
2. both gate and aluminum bronze bearing are in in aid design good self lubrication, high strength and can have the aluminum bronze bearing replaced without need to replace the gate integrally, after a long time use.
3. Rubber wrapped gate anti-corrosion, good tightness.
4. Advanced surface treatment, coated with non-toxic epoxy resign static powder, anti-corrosion, pollution-free, can be used drinking water pipeline.
5. the body is designed without gate slot, the smooth passage will not get impurities filling up, more applicable for sewage working condition.
6. the integral seal works raliably. for the high pressure seal, leaving zero leakage under1.5 times nominal pressure and,for the low pressure one,under 0.02Mpa.
Materials of major parts:

No.	part	Material
1	Body	Ductile cast iron
2	Disc	Ductile cast iron packed with NBR
3	Bolt	CS  SS
4	Gasket	EPDM  NBR
5	Cover	Ductile cast iron
6	Stem	Stainless steel
7	O-ring	EPDM  Silicone
8	Thrust bearing	Brass
9	Bolt	CS  SS
10	Gland	Ductile cast iron
11	Dust proof gasket	EPDM/NBR
12	Hand wheel	Ductile cast iron

Main size:

DN	L-mm	h-mm	D-mm	a-mm	d-mm	c-mm	x-n	T-mm	f-mm	g-mm
50	150	241	138	50	158	125	4-18	16.5	2	99
65	170	270	173	65	180	145	4-18	17	2	118
80	180	292	173	80	196	160	8-18	19	3	132
100	190	333	200	100	215	180	8-18	20	3	156
125	200	384	230	125	250	210	8-18	20	3	184
150	210	420	230	150	280	240	8-23	20	3	211
200	230	512	270	200	336	295	12-23	21	3	266
250	250	602	350	250	405	355	12-26	25	3	319
300	270	705	350	300	460	410	12-26	28	4	370
350	290	782	450	350	520	470	16-26	28	4	430
400	310	880	480	400	580	525	16-30	28	4	475
500	350	1055	600	500	715	650	20-34	29	4	580
600	390	1260	600	600	840	770	20-40	38	4	680



Performance specification:

Normal pressure (Mpa)	Body test pressure (Mpa)	Sealing test pressure (Mpa)	Applicable medium	Applicable temperature (C)
1.0	1.5	1.1	water	0~80
1.6	2.4	1.76
2.5	3.75	2.75

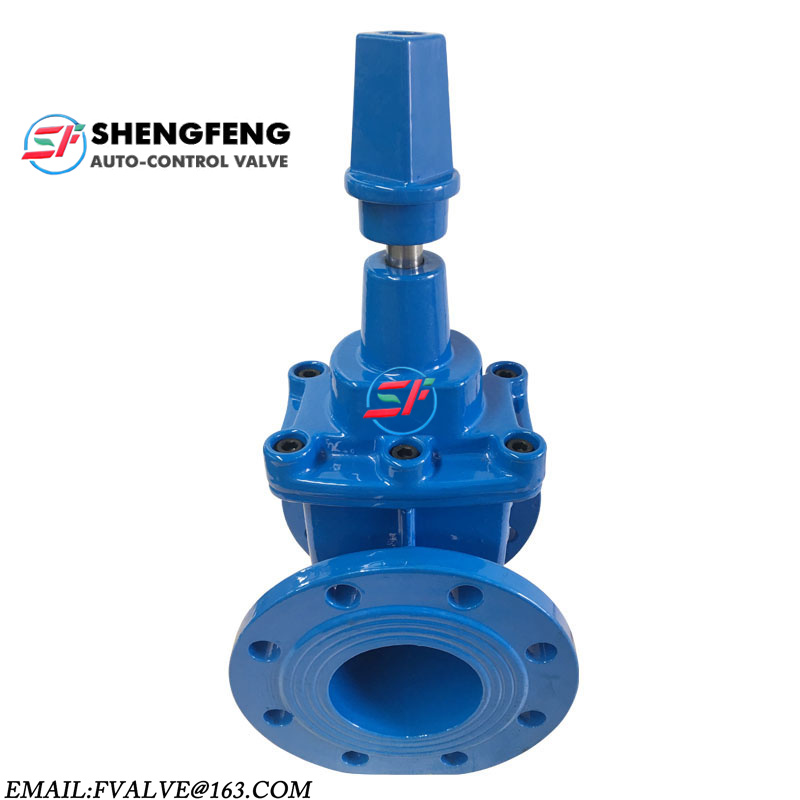

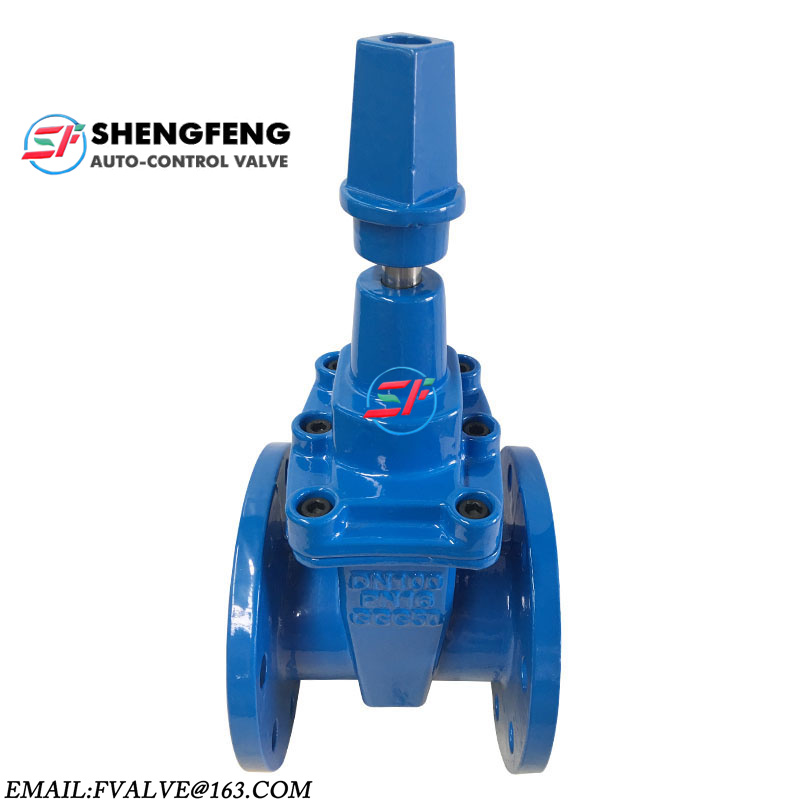

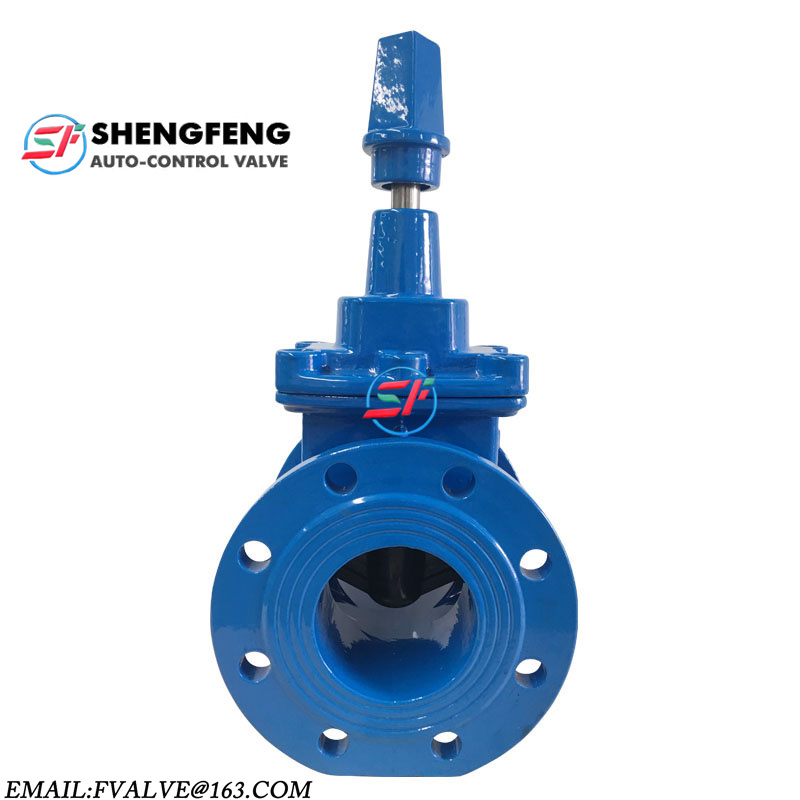

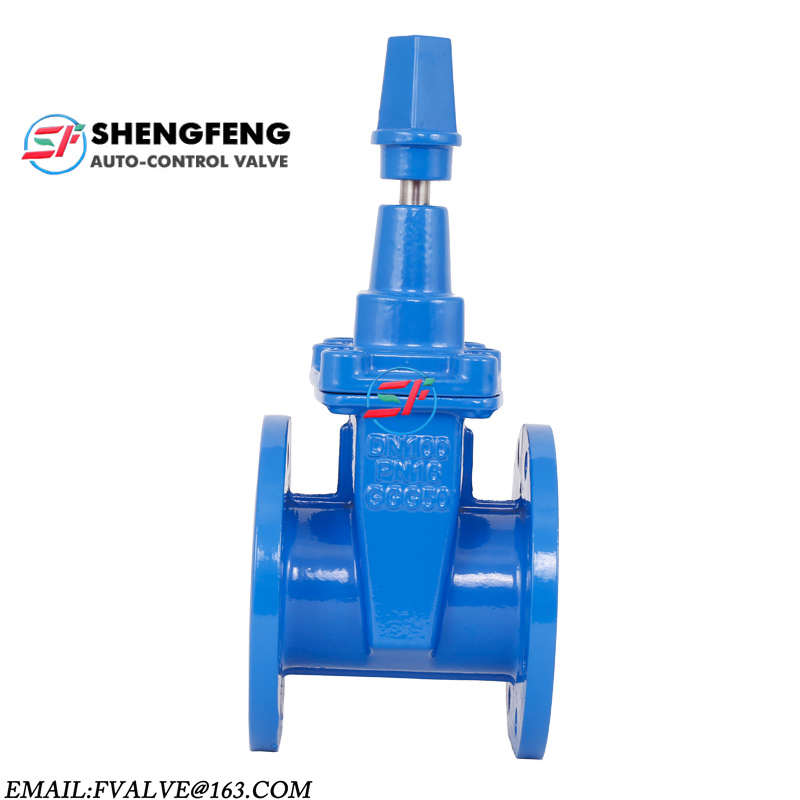

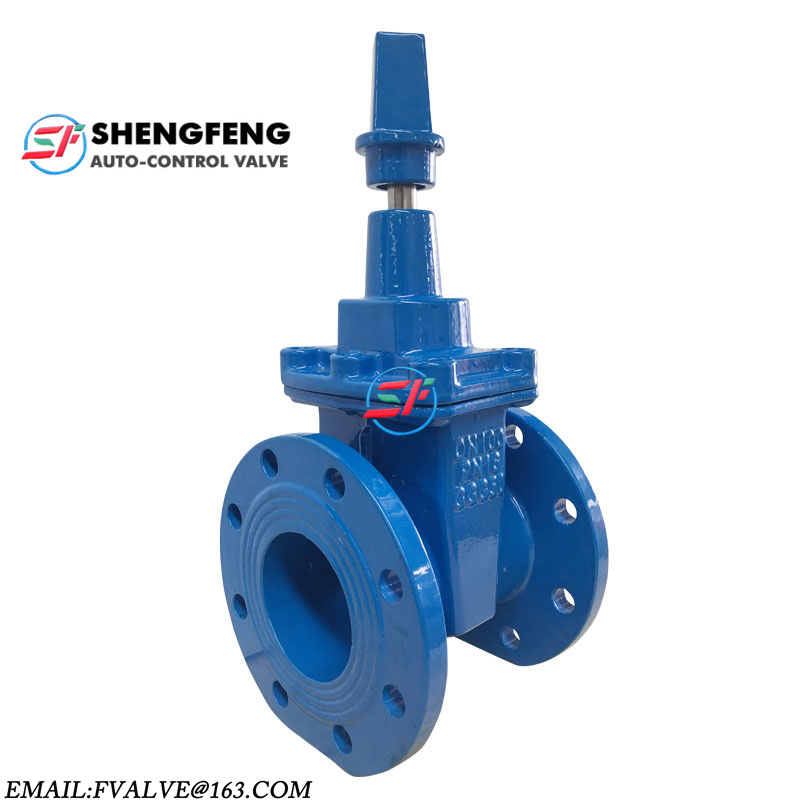

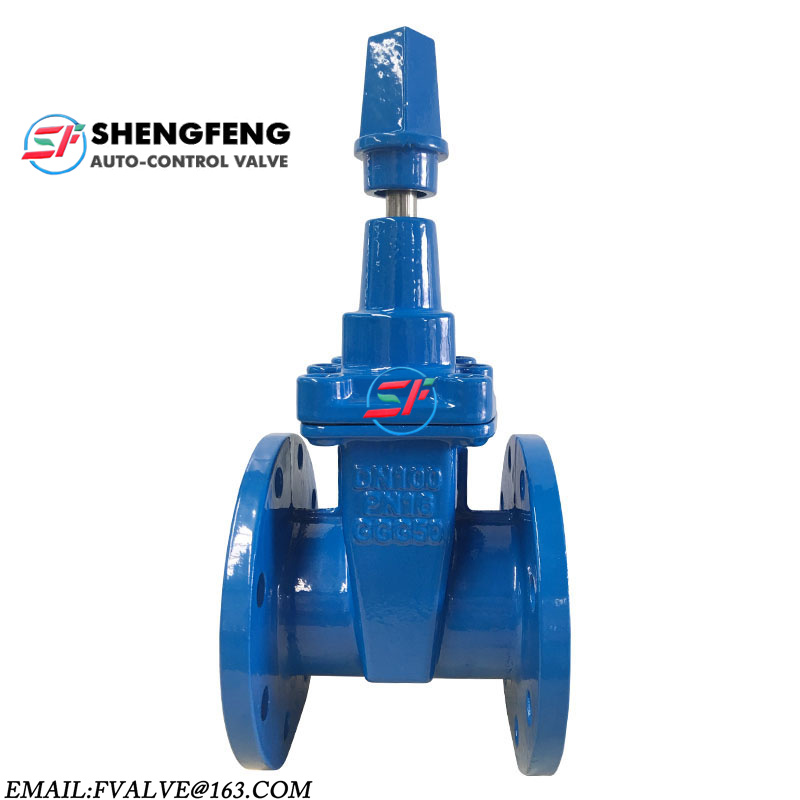

Product photo:
