| Brand Name: | sighton |
|---|---|
| Combination: | rf modulator |
| Warranty: | 3years |
| Interface Type: | 16 ASI input,4 ASI |
| Frequency: | 50~960MHz, 1kHz stepping |
| Place of Origin: | China (Mainland) |
| Input: | Max 1024 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input maximum 512 IP, while front-panel Data port can input maximum 128 IP |
| Output Channel: | 32 |

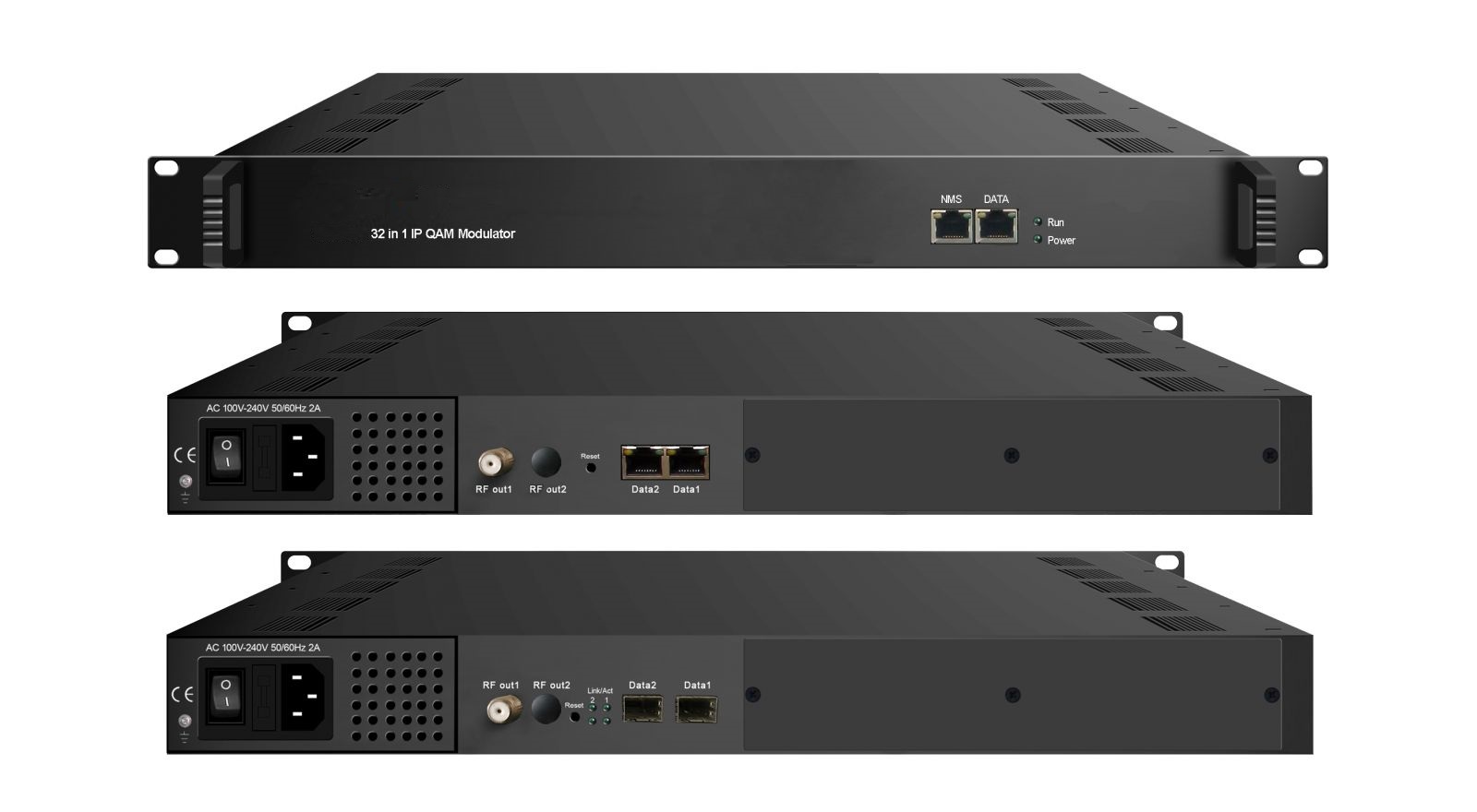

Quick Details
Specifications
Features
* 3 GE ports (max 1024 IP in):
Data1 & Data2 bi-directional ports, max 512 IP in, 32 IP out
Data port (located on front panel), max 128 IP in
* Max 840Mbps for each GE input
* Supports accurate PCR adjusting/CA filtering, PID remapping and PSI/SI editing
* Supports up to 256 PIDS remapping per channel
* Support 32 IP output through Data1 & Data2 over UDP/RTP/RTSP
* 32 non-adjacent QAM carriers output, Compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
* Supports RS (204,188) encoding
* Support Web-based Network management
Principle Chart
Carrier Setting Illustration
Technical Parameter
Input |
Input |
Max 1024 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface Optional). Each Data1 or Data 2 port can input maximum 512 IP, while Front-panel Data port can input maximum 128 IP | |
Transport Protocol |
TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | ||
Transmission Rate |
Max 840Mbps for each GE input | ||
Mux |
Input Channel |
1024 | |
Output Channel |
32 | ||
Max PIDs |
256 per channel | ||
Functions |
PID remapping(auto/manually optional) | ||
PCR accurate adjusting | |||
PSI/SI table automatically generating | |||
Scrambling Parameters |
Max simulscrypt CA |
4 | |
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 | ||
Connection |
Local/remote connection | ||
Modulation Parameters |
DVB-C Modulator Sectioon |
J.83A |
Constellation : 16/32/64/128/256QAM |
Bandwidth :8M | |||
J.83B |
Constellation : 64QAM/ 256QAM | ||
Bandwidth :6M | |||
QAM Channel |
32 non-adjacent carrier | ||
Modulation Standard |
EN300 429/ITU-T J.83A/B(DVB-C) | ||
Symbol Rate |
5.0~7.0Msps, 1ksps stepping | ||
Constellation |
16, 32, 64, 128, 256QAM | ||
FEC |
RS (204, 188) | ||
RF Output |
Interface |
1 F typed output port for 32 carriers, 75 | |
RF Range |
50~960MHz, 1kHz stepping | ||
Output Level |
-20dBm~+10dBm(87~117dbV), 0.1dB stepping | ||
MER |
40dB | ||
TS output |
32 IP output over UDP/RTP/RTSP, Unicast/multicast, 2 (Data1& Data2) 100/1000M Ethernet Ports | ||
System |
Network management software (NMS) Supporting | ||
General |
Demission |
420mm440mm44.5mm (WxLxH) | |
Temperature |
0~45(operation), -20~80(storage) | ||
Power Supply |
AC 100V10%, 50/60Hz or AC 220V10%, 50/60Hz | ||
