| Brand Name: | YinXun |
|---|---|
| Wavelength: | 75~120 |
| Data Rate: | 40~100 |
| warranty: | ISO 9001/CE/FCC |
| Connector: | IP / E1 / Fiber |
| Model Number: | ZMUX-300 |
| Place of Origin: | China (Mainland) |
| Capacity: | 1~32 |
| Ethernet interface: | 10/100Base_T Ethernet Adaptation |
| Link interface: | Fiber interface |
| Connector: | SC or FC |
| Core: | Single or double fiber |
| Transmission mode: | Single mode or multimode |
| Power optional: | AC220V / DC-48V / AC220V + DC-48V |
| Transmission distance: | 0~100km |
| Whatapp: | 86-18316619930 |
Quick Details
Specifications
Product description
ZMUX-300 is interface modular design, and supports very flexible configuration, according to the customers' requirement. the business interface module is a single card, to meet the needs of customers. It adopts 1U height standard 19inch rack mountable case, easy to install and maintain. the device has indicator light, which can show the operating status of the equipment. It satisfies the unified access and transmission of 64K narrowband services and broadband data services, and has stable and reliable performance. the device is widely used in electric power, military, maritime, railway, mining, oilfield, government, group companies, etc and get good feedbacks from clients.

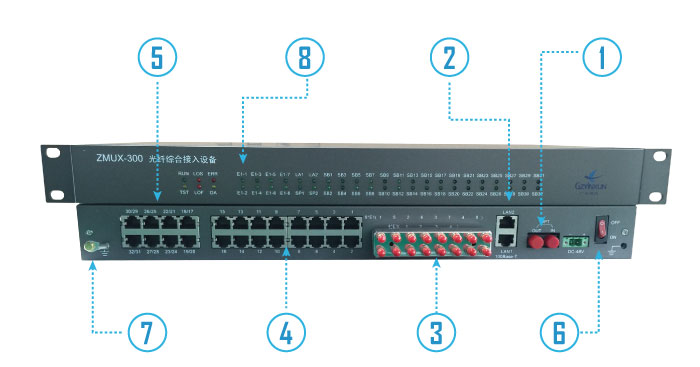

ZMUX-300 diagram
| Interface NO. | Interface Name | Instruction |
|---|---|---|
| Link interface | 1 channle fiber interface, optional: single or daul fiber, single-mode or multimode, SC or FC, 40km or 80km or 100km. | |
| User interface | 100M Ethernet interface (optional, 2channels 100M sharing bandwidth) | |
| User interface | 2*4 E1 interface (optional, 2M interface) | |
| User interface | 16 channels general service interface (optional: voice calls, 2/4W audio, 2/4W E&M, RS232/422/485 and other modules) | |
| User interface | 16 channels service interface (1 RJ45 with 2 interface, optional: voice calls, 2/4W audio, RS232/422/485 and other modules) | |
| Power supply interface and Switch | -48V DC power supply plug (green), power switch (red). | |
| Ground terminal | the equipment grounding | |
| System indicator | Equipment alarm indicator lights, running lights. |
Features
* 1-32 service interfaces,1 port Ethernet(2channel 100M sharing bandwidth) and 2*4E1,1 module corresponding to 1 channel user interface, customize requirements
* support FXO/FXS/HOT/MAG/4WEM/2WEM/ G.703 /RS232/ RS422/ RS485/ V.21/V.22/V.23/V.34/V.35/CAN/ADS-B radar/VHF/Synchronous radar data/Meteorological self-contained data/Transfer data/Weather radar data/Blind drop data etc.
* 1 channel fiber interface,dual fiber/FC/40KM(single fiber / dual fiber / single mode,/multi-mode/SC/FC, 40km/80km/100km optional)
*transmission distance:40KM/80KM/100KM
* flexible configuration and expansion
*support multi multiplexer connect
* support 75 or 125 optional of E1
* support high impedance recording
* AC220V/DC-48V/AC220V+DC-48V

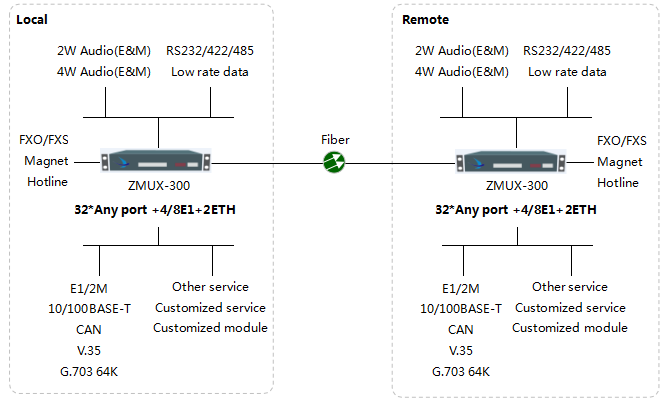

Network Diagram
ZMUX-300 is self-R&D producted by Yinxun, and we have exported a lot to overseas. It is very stable and reliable, international standard. We support ODM, OEM, technical cooperation
