| Brand Name: | Extrepure |
|---|---|
| name: | cation exchange resin |
| Material: | styrene |
| application: | ater softener |
| Type: | chemical |
| Model Number: | 001x10 |
| Place of Origin: | China (Mainland) |
| Polymer Matrix Structure: | Crosslinked Polystyrene Divinylbenzene |

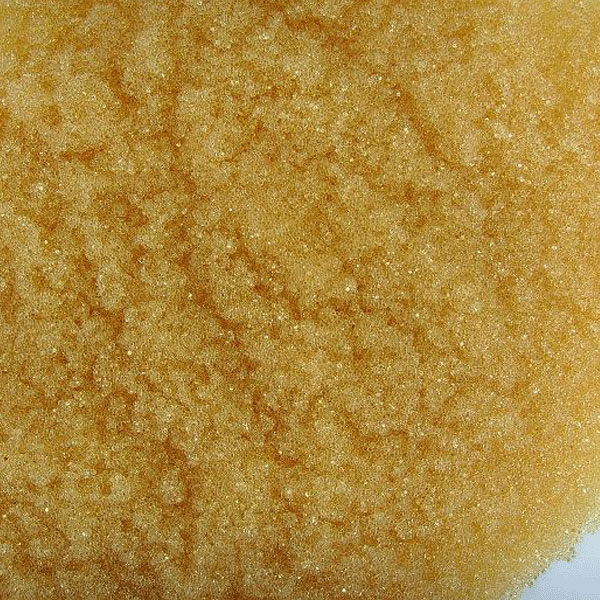

| Physical Form and Appearance: | Yellow to Brown yellow color beads |
| Moisture Retention, Na+ form: | 45-50% |
| Particle Size Range: | 0.3mm-1.2mm |
Quick Details
Specifications
00110 StyreneSEries Gel Strong Acid Cation Resin
1. Description
00110 Is a premium high purity grade of conventional gel poly(styrene sulfonate) cation-exchange resin, Its chemical and physical stability, particularly its resistance to oxidation, the higher density spheres of the graded cation resin ensures good backwash separation at the recommended flow rates.
this product is analogous to :Amberlite IR-122,Dowex HGR-W2/C10,Purolite C100X10,Diaion SK110
2.Typical Physical and Chemical Properties:
Items |
Specification | |
Polymer Matrix Structure |
Crosslinked Polystyrene Divinylbenzene | |
Physical Form and Appearance |
Golden yellow color Spherical beads | |
Functional Groups |
R-SO3 | |
Ionic Form,as shipped |
Na+ | |
Total Capacity, Na+ form, wet, volumetric |
2.1Eq/l min | |
Moisture Retention, Na+ form |
40-46% | |
Particle Size Range |
0.3Mm-1.2mm | |
<0.5mm (max.) |
1% | |
Uniformity Coefficient (max.) |
1.6 | |
Effective size |
0.4-0.7mm | |
Reversible Swelling |
Na+ H+ (max.) |
3-5% |
Shipping Weight (approx.) |
820 -920g/l | |
Specific Gravity, moist Na+ Form |
1.31 | |
PH Range, Stability |
0 - 14 | |
3.Suggested Operating Condition
Maximum Temperature |
Na+ Form |
140C (285of) max. |
H+ Form |
120C (248oF) max. | |
Backwash Rate |
25 to 50% Bed Expansion | |
Regenerant Concentration |
Hydrogen Cycle |
3% HCl or2 to3% H2SO4 |
Sodium Cycle |
6% to8% NaCl or 3% NaOH | |
Regenerant dosage |
HC1 or H2SO4 |
HC1 orH2SO4 Volume:resin volume =3:1 |
NaCl |
NaCl Volume:resin volume =2:1 | |
NaOH |
NaOH Volume:resin volume =3:1 | |
Regenerant Flow Rate |
2to4 BV/h | |
Regenerant cOntact Time |
at least40 minutes | |
Service Flow Rate |
10-25m/h | |
4.Applications
this product is used in extracting of antibiotics,Drug purification,Water softening,Preparation of pure water or high purity water and so on
