Product Main

Quick Details

Brand Name: BENEMED
Type: Blood Analysis System
Range: hematology analyzer
color: white
weight: 26.5kg
Place of Origin: China (Mainland)
Model Number: BHA560

Specifications

Features:

5-part differentiation, 27 parameters
Laser scatter + Chemical dye + Flow cytometry
up to 60 samples per hour
Independent channel for Basophil measurement
10.4 inches high resolution TFT touch screen
Powerful capability to flag abnormal cells
Large storage capacity: up to 50,000 samples
Support USB/LAN /bi-directional LIS
Support external inkjet and Laser Printer


Specification:

Principles
Impedance method for RBC andPLT counting
Cyanide free reagent for   hemoglobin test
Laser scatter, Chemical dye,  Flow cytometry for  WBC-5 part differential analysis and WBC counting
Assay Items
27 parameters, 5 parts of differential WBC
Parameters
RBC, MCV, HCT, RDW-SD. RDW-CV, HGB,
MCH, MCHC, PLT, MPV, PCT, PDW, WBC,
LYM#, LYM%, MON#, MON%, NEU#,
NEU%, EOS#, EOS%, BAS#, BAS%, ALY#*,
ALY%*, LIC#*, LIC%*
3  histograms for WBC, RBC, PLT
3 DIFF scattergrams and 1 BASO scattergram
Reagent
DIL-C Diluent, LYC-1LYSE, LYC-2LYSE, CLE-P
Sample Volume
15uL(Venous blood), 15uL(Capillary blood),
20uL(Prediluted)
Display
10.4 inch  high resolution TFT touch screen
Throughput
60 samples/ hour
Storage
50,000 samples
Language
English,French,etc
Output
4 USB port , 1 LAN port Hl7 protocol
Printer
Support external inkjet and Laser Printer
Storage tempreture
2-30C
Operation tempreture
10-30C
Dimension
364mm(L)X431mm(w)X498mm(H)
Net Weight
26.5KG
Power
100-240V

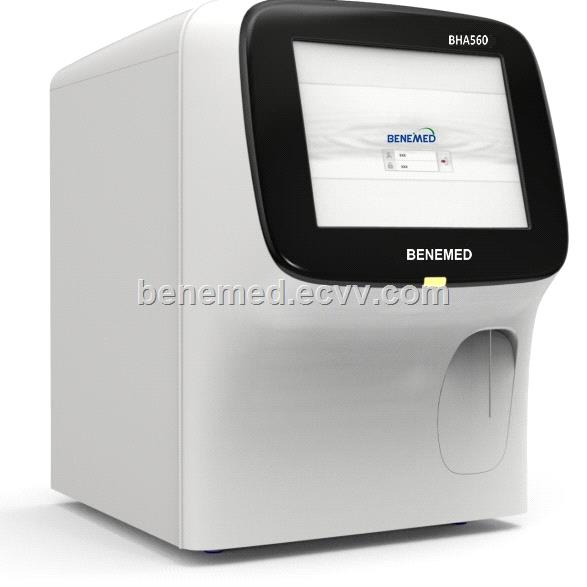

Fully Automated Hematology Analyzer 5 part double channel BHA560
