| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 |
| Brand Name: | 1 |
| Usage: | 1 |
| Condition: | New |
Quick Details
Specifications
1. Type of Molten steel furnaceL furnace is a power-saving type product, which adopts a half-bridge parallel inverter intermediate frequency power supply (voltage resonance , whether the electric furnace is cold state, hot state, plus half charge or full material, the half bridge parallel inverter can output the rated Power, power factor is constant at 0.9 6 . ) The molten steel furnace is safe and reliable, in line with national standards and related regulations.
the molten steel furnace has the advantages of high automation level, advanced technology, mature, accurate and reliable control, mature manufacturing process, safe and stable operation, perfect protection system, reasonable layout and convenient management and maintenance. It has the charac :
the molten steeteristics of fast melting speed , low energy consumption and stable and reliable operation.
2. the Composition range of this Molten steel furnace :
Transformer secondary copper discharge intermediate frequency power supply capacitor cabinet furnace body hydraulic tilting furnace system remote control box closed loop cooling tower water cooled pipeline.

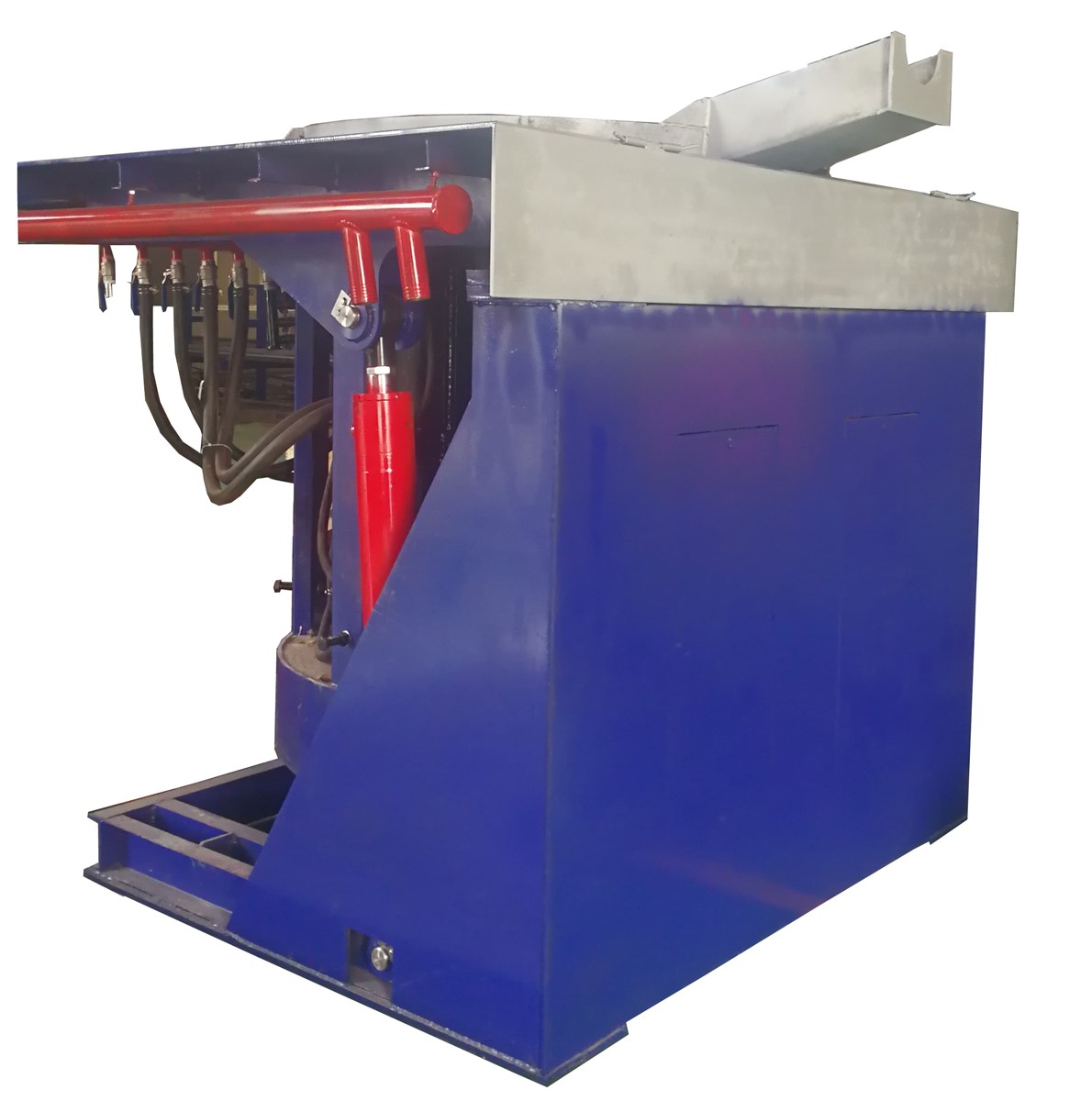

50T medium frequency induction heating melting furnace technical parameters
Power supply |
Working form: an inverter Connected in parallel (SCR)power Supply 24 Four-phase pulse (a two electric furnace) |
Rectified form: 12 phase 24 pulse | |
Output power: 2 5 00 0 KW | |
Power efficiency 98% | |
Start mode: Variable frequency buffer start | |
Startup rate: 100% (including heavy load) | |
Rated frequency: 3 0 0Hz -500Hz | |
AC voltage: 1500 V | |
DC voltage: 2000 V | |
IF voltage: 3000v | |
DC current: 2500 A X 4 | |
AC current: 8000 A | |
Input frequency: 50Hz | |
1500v rectifier 4 way parallel, Inverter form: Inverter Parallel | |
Dimensions: 6800 mm 20 00 mm 2120 mm ( Length Width Height ) | |
Weight: 5000 KG or so | |
Circulating water volume: Closed - loop Water cooling tower ZXZ-400T | |
Furnace body |
Rated capacity: 45 0 0 0KG |
Maximum capacity: 50000 KG | |
Rated power: 2 50 00KW | |
Frequency: 300 Hz | |
Power factor: 0.9 2 | |
Working mode: One electric two furnace | |
Melting time : about 120 Minutes / furnace | |
Working temperature: 1 700 C | |
Loading height: 1500mm Hoop height: 3200mm | |
Loading diameter: 1800 Mm (upper mouth) Ring inner diameter: 2200mm furnace ring copper tube is 40x70x8mm | |
Loading diameter: 1600 Mm (lower) Ring diameter: 2200mm | |
Maximum angle of the tilting furnace: 95 | |
Lining thickness: 200 mm | |
Outlet mode: side outlet | |
Circulating water volume: 1548 Tons / h | |
Tilting method: hydraulic | |
Unit power consumption: 5 60 Degrees / ton 5% 1600 C | |
Working voltage: 3200V | |
Dimensions: 3680 4000 4200 | |
Weight: 200 00KG or so | |
Transformer |
Rated Capacity: 12500 KVA two |
Primary voltage: 10KV | |
Secondary voltage: 1500v | |
One phase: 3 phase | |
Secondary phase number: 6 phase 12 veins | |
Output form: three three Y | |
Hydraulic |
Hydraulic cylinder: |
Working pressure: 10Mpa | |
Diameter: 320 Plunger cylinder | |
Itinerary: 2 107mm | |
3 flow rate: >26L/Min | |
Hydraulic station: | |
Working pressure: 10Mpa | |
Hydraulic pump: double pump double | |
Form: Horizontal | |
Capacity: 12 00L | |
Console |
Mode: Electric (action indicator) |
Cooling water System |
One-piece layered water cooling tower ZXZ- 4 00T (40/160) |
Cooling capacity 2 00000 0kcal/h Cooling water volume 400m3/h Fan power 11 KW 2 units Fan air Volume 125000m3/h 2 Spray pump 280 m3/h; 5.5 kw Dimensions mm 55 002 6 004910 (One machine size) |
