| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1 |
| Brand Name: | 1 |
| Usage: | Heat Treatment Furnace |
| Condition: | New |
Quick Details
Specifications
1. Overview

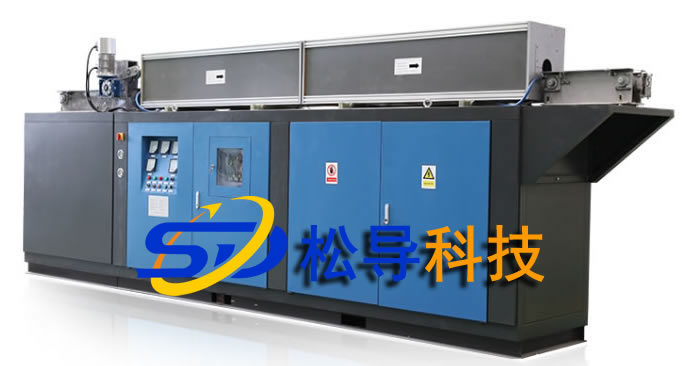

Fully automatic medium frequency induction heating complete equipment with vibration sequencing, idler feeding, automatic temperature control and three-level temperature control
this set of equipment is mainly used for the overall heat transfer of round steel and steel pipes . the heating furnace body adopts the quick replacement method, and only the furnace body needs to be replaced when the product specifications are replaced. It takes only a few minutes to replace the furnace
2, according to the maximum weight of a single piece, the heating time to calculate the power
3, Device range and function description:
1. Equipment range is shown in the table below
Serial number |
Content |
Quantity |
Remarks | |
1 |
Rectifier transformer |
1 set |
Optional user purchase | |
2 |
Thyristor series inverter IF power supply |
1 set |
| |
3 |
Induction heater |
1 set |
Includes water cooled rails | |
3.1 |
GTR 80 (applicable material 75 ) |
1 set |
| |
4 |
Induction heating furnace stand |
1 set |
| |
5 |
Feeding platform and buffer chain conveyor |
1 set |
| |
6 |
Feeder |
1 set |
| |
7 |
Roller feeder |
1 set |
| |
8 |
Pinch roller feeder |
1 set |
| |
9 |
Material return device |
1 set |
Return steel cylinder, loading machine | |
10 |
Quick discharge machine |
1 set |
| |
11 |
Three sorting machines |
1 set |
| |
12 |
Temperature control system (infrared temperature measurement and control instrument) |
1 set |
PLC center console | |
12 .1 |
PLC center console |
1 set |
| |
12 .2 |
Industrial control software (MCGS system) |
1 set |
| |
12 .3 |
Programmable Controllers |
1 set |
| |
12 .4 |
LCD screen |
1 set |
| |
12 .5 |
Double colorimetric infrared thermometer (Xi'an Ruiguang) |
1 set |
| |
12 .6 |
Photoelectric alarm switch |
1 set |
| |
12 .7 |
Control cabinet |
1 set |
| |
12 .8 |
Console |
1 set |
| |
10 |
Cooling water system |
1 set |
User-purchased | |
