Metal Core PCB
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper (copper
Core PCB), stainless steel, even iron base.

Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.

Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver,  Motor controller,
Automobile etc.

Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.



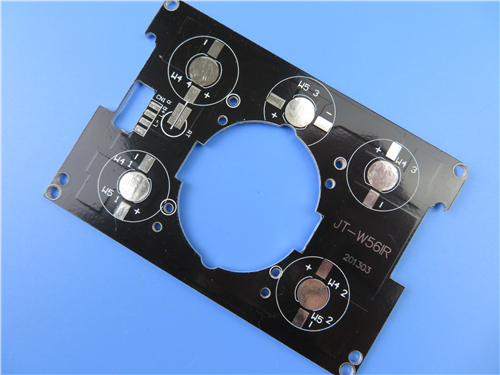

MCPCB Case: Single Sided Aluminum PCB with HASL
(PCB's are custom-made products, the picture and parameters shown are just for reference)


General description
this is a type of Aluminum PCB for the application of rectifier bridge. It's a single layer
MCPCB board at 1.6 mm thick with 2W/MK thermal conductivity. The aluminum plate
Is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class
2 using supplied Gerber data. 25 boards are packed separately.

Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
Right manufacturing instruction (MI),
Comprehensive equipment management and maintenance and process control,
Strict WIP inspection and monitoring as well as working instruction,
No MOQ, low cost for prototypes and samples.
1-10 pieces are offered for sale.
International approvals


Application
Power amplifier, Motor driver, Power supply device, Fluorescent lamp

Parameter and data sheet

PCB SIZE	95 x 64mm=1PCS
BOARD TYPE	Aluminum PCB, IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
through Hole Components	NO
LAYER STACKUP	Copper ------- 35um(1oz)
	1W/MK dielectric material
	Aluminum 5052
TECHNOLOGY
Minimum Trace and Space:	40 mil /- mil
Minimum / Maximum Holes:	2.0 / 4.0 mm
Number of Different Holes:	2
Number of Drill Holes:	14
Thermal resistance(C/W)	0.45
Breakdown Voltage(VDC)	4000
Impedance Control	no
BOARD MATERIAL
Thermal conductivity	1W/MK dielectric material, MCPCB
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.6mm 0.16
PLATING and COATING
Surface Finish	Hot Air Soldering
Solder Mask Apply to:	Top.  12m Minimum.
Solder Mask Color:	Black
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	No via
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059" (0.15mm)
Board plating:	0.0030" (0.076mm)
Drill tolerance:	0.002" (0.05mm)
TEST	100% Electrical Test prior shipment
TYPE of ARTWORK to BE SUPPLIED	Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
