I. Overview:

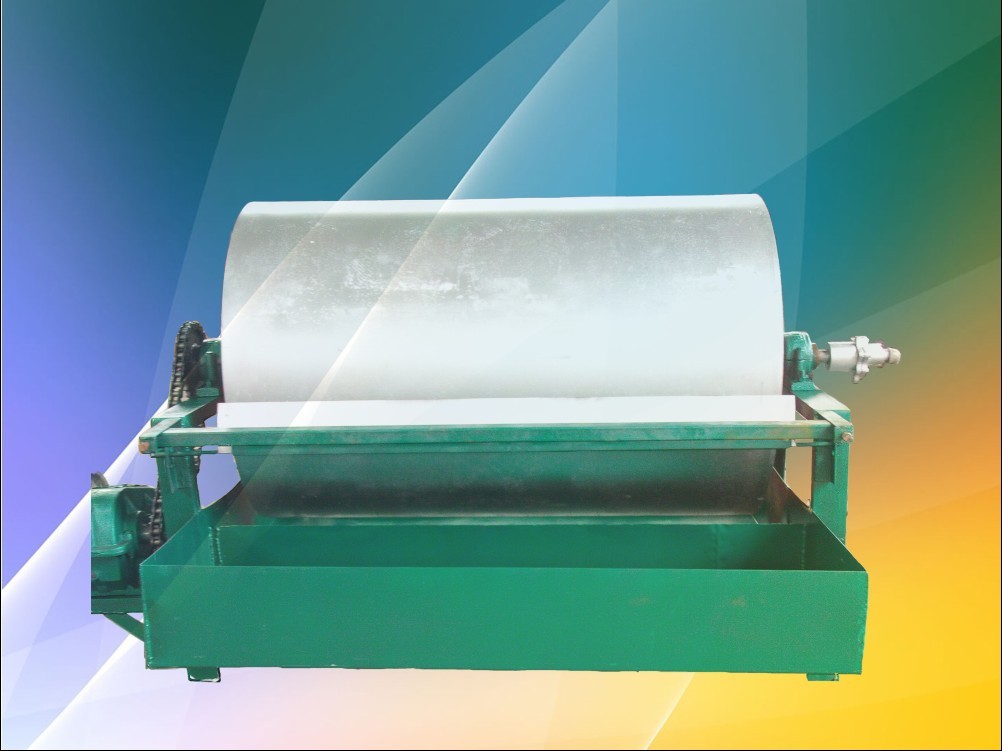

Drum dryer is a kind of continuous operating equipment which can dry the liquid phase materials or strip materials attached to the external wall of the cylinder by means of heat conduction through the rotating cylinder.

Ii. Working principle

HG series drum dryer enables liquid or slurry materials to form film on the surface of the drum heated by water vapor or other heat carrier. The drum is dried after one revolution. The dry materials are scraped off by a special scraper and packaged into finished products.

Iii. Product features

1. Large flexibility, wide adaptability, simple and flexible operation;

2. Compact structure and small floor space;

3. High thermal efficiency, generally up to 80%--90%;

4. Short drying time, 10-15 seconds to complete the material drying process;

5. the material film surface can maintain a high evaporation temperature and a high drying rate.

Gauge lattice 800 x 800 x 1500 1200 1500 by 2200

Main motor power (KW) 1.5 1.5 3

Drum speed (r/min) 1.5-2.5 1.5-2.5 1-2

Production area (m2) 2.8 3.6 11

Heating mode steam, heat oil steam, heat oil steam

Feeding method bottom bottom bottom bottom
