Surface Finishing: | Electroless nickel over Immersion Gold (ENIG) |
---|---|
Board Thickness: | 1.6mm |
Copper Thickness: | 1 oz |
Base Material: | T-Prepreg 1KA Dielectric |
Brand Name: | Bicheng Enterprise Limited |
Min. Line Spacing: | 10 mil |
Min. Line Width: | 11.9 mil |
Min. Hole Diameter: | no |
Model Number: | BIC-761-V761 |
Place of Origin: | China (Mainland) |
Solder Mask Color: | Black |
Colour of Component Legend: | no silkscreen |
TEST: | 100% Electrical Test prior shipment |
Quick Details
Specifications
Metal Core PCB
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.
Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.
Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver, Motor controller,
Automobile etc.
Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.

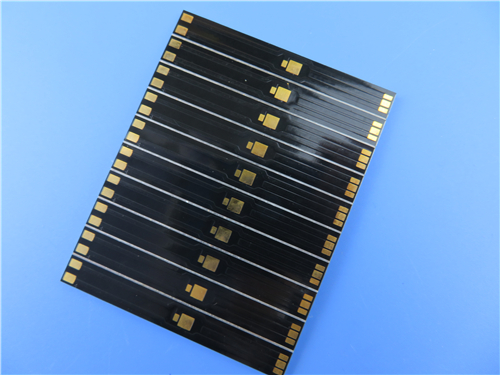

MCPCB Case: Aluminum PCB Built on 2W / MK thermal
Conductivity
(PCB's are custom-made products, the picture and parameters shown are just for reference)
General description
this is a type of aluminum PCB for the application of a filter electric circuit. It's a single layer
MCPCB board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from
ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. 25 panels are packed for shipment.
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
Comprehensive equipment management and maintenance and process control,
Strict WIP inspection and monitoring as well as working instruction,
Whole fabrication process are totally controlled.
Delivery on time: >98%
Customer complaint rate: <1%
No MOQ, low cost for prototypes and samples.
Application
Commercial lighting, Security system, Rectifier bridge, Outdoor lighting for expressway
Parameter and data sheet
Variety of PCBs
CNC Routing
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.
Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.
Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver, Motor controller,
Automobile etc.
Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.
MCPCB Case: Aluminum PCB Built on 2W / MK thermal
Conductivity
(PCB's are custom-made products, the picture and parameters shown are just for reference)
General description
this is a type of aluminum PCB for the application of a filter electric circuit. It's a single layer
MCPCB board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from
ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. 25 panels are packed for shipment.
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
Comprehensive equipment management and maintenance and process control,
Strict WIP inspection and monitoring as well as working instruction,
Whole fabrication process are totally controlled.
Delivery on time: >98%
Customer complaint rate: <1%
No MOQ, low cost for prototypes and samples.
Application
Commercial lighting, Security system, Rectifier bridge, Outdoor lighting for expressway
Parameter and data sheet
PCB SIZE | 105 x 68mm=5PCS |
BOARD TYPE | IMS PCB |
Number of Layers | Single sided PCB |
Surface Mount Components | YES |
through Hole Components | NO |
LAYER STACKUP | Copper ------- 35um(1oz) |
2.0W/MK dielectric material | |
Aluminum base 6061 | |
TECHNOLOGY | |
Minimum Trace and Space: | 10mil/11.9mil |
Minimum / Maximum Holes: | no |
Number of Different Holes: | no |
Number of Drill Holes: | no |
Thermal resistance(C/W) | 0.45 |
Breakdown Voltage(VDC) | 4000 |
Impedance Control | no |
BOARD MATERIAL | |
Thermal conductivity | T-Prepreg 1KA Dielectric |
Final foil external: | 1oz |
Final foil internal: | 0oz |
Final height of PCB: | 1.6mm 0.16 |
PLATING and COATING | |
Surface Finish | Electroless nickel over Immersion Gold (ENIG)( 1 " over 100 " nickel) |
Solder Mask Apply to: | Top. 12m Minimum. |
Solder Mask Color: | Black |
Solder Mask Type: | LPSM |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | No silkscreen |
Colour of Component Legend | No silkscreen |
Manufacturer Name or Logo: | as per requirement |
VIA | No via |
FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" (0.15mm) |
Board plating: | 0.0030" (0.076mm) |
Drill tolerance: | 0.002" (0.05mm) |
TEST | 100% Electrical Test prior shipment |
APPLICATION: | LED light, Wireless Communication Modem USB WiFi Amplifier GPS Module Bluetooth GPS |
TYPE of ARTWORK to BE SUPPLIED | Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
