Surface Finishing: | Hot Air Soldering Leveling(HASL),lead free |
---|---|
Board Thickness: | 1.6mm |
Copper Thickness: | 1 oz |
Base Material: | 2.0W/MK 75um dielectric material |
Brand Name: | Bicheng Enterprise Limited |
Min. Line Spacing: | 13 mil |
Min. Line Width: | 15 mil |
Min. Hole Size: | 5.5mm |
Model Number: | BIC-764-V764 |
Place of Origin: | China (Mainland) |
Solder Mask Color: | Black |
Colour of Component Legend: | White |
TEST: | 100% Electrical Test prior shipment |
Quick Details
Specifications
Metal Core PCB
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.
Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.
Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver, Motor controller,
Automobile etc.
Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.

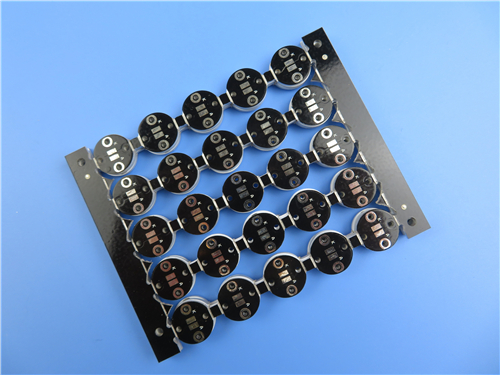

MCPCB Case: Aluminum PCB Board with 2W / MK for
Ignitor
(PCB's are custom-made products, the picture and parameters shown are just for reference)
General description
this is a type of aluminum PCB for the application of ignitor. It's a single layer MCPCB board
at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder
Mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber
Data. 25 panels are packed for shipment.
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
100% tests inclusive of electrical test and AOI inspection.
High voltage test, Impedance control test, micro-section, solder-ability test, thermal stress
Test, reliability test, insulation resistance test and ionic contamination test,
UL conformed
Professional and experienced engineers
Competitive price
Application
Shopping mall lighting, Communication electronic equipment, Electronic regulator,
Automobile rear lighting,
Parameter and data sheet
Variety of PCBs
Developing
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.
Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.
Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver, Motor controller,
Automobile etc.
Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.
MCPCB Case: Aluminum PCB Board with 2W / MK for
Ignitor
(PCB's are custom-made products, the picture and parameters shown are just for reference)
General description
this is a type of aluminum PCB for the application of ignitor. It's a single layer MCPCB board
at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from ITEQ, Solder
Mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied Gerber
Data. 25 panels are packed for shipment.
Features and benefits
SMT process
Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life.
Power density and reliability are improved up 10%.
Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials),
Reduce the volume of the product,
Reduce the cost of hardware and assembly,
100% tests inclusive of electrical test and AOI inspection.
High voltage test, Impedance control test, micro-section, solder-ability test, thermal stress
Test, reliability test, insulation resistance test and ionic contamination test,
UL conformed
Professional and experienced engineers
Competitive price
Application
Shopping mall lighting, Communication electronic equipment, Electronic regulator,
Automobile rear lighting,
Parameter and data sheet
PCB SIZE | 95 x 95mm=25PCS |
BOARD TYPE | IMS PCB |
Number of Layers | Double sided PCB, Metal core PCB |
Surface Mount Components | YES |
through Hole Components | NO |
LAYER STACKUP | Copper ------- 35um(1oz) |
2.0W/MK 75um dielectric material | |
Aluminum base 5052 | |
TECHNOLOGY | |
Minimum Trace and Space: | 13mil/15mil |
Minimum / Maximum Holes: | 5.5mm |
Number of Different Holes: | 1 |
Number of Drill Holes: | 4 |
Thermal resistance(C/W) | 0.45 |
Breakdown Voltage(VDC) | 4000 |
Impedance Control | no |
BOARD MATERIAL | |
Thermal conductivity | 2.0W/MK 75um dielectric material |
Final foil external: | 1oz |
Final foil internal: | 0oz |
Final height of PCB: | 1.6mm 0.16 |
PLATING and COATING | |
Surface Finish | Hot Air Soldering Leveling(HASL),lead free, Sn>=2.54m |
Solder Mask Apply to: | Top. 12m Minimum. |
Solder Mask Color: | Black |
Solder Mask Type: | LPSM |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | TOP |
Colour of Component Legend | White |
Manufacturer Name or Logo: | as per requirement |
VIA | No via |
FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" (0.15mm) |
Board plating: | 0.0030" (0.076mm) |
Drill tolerance: | 0.002" (0.05mm) |
TEST | 100% Electrical Test prior shipment |
APPLICATION: | LED light, Data Acquisition Vehicle Tracking GSM Module Radio Communication Portable Sound System |
TYPE of ARTWORK to BE SUPPLIED | Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
