Metal Core PCB
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.

Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.

Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver,  Motor controller,
Automobile etc.

Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.

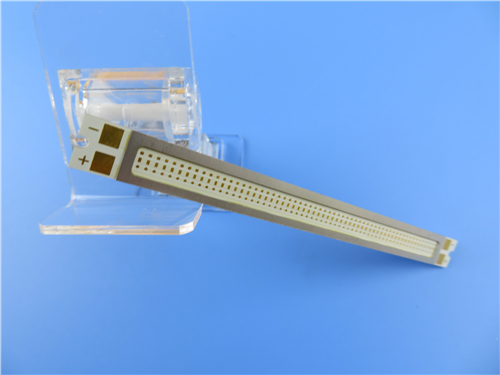

Aluminum PCB Case: Aluminum PCB Board Composite
Structure for Switch Regulator
(PCB's are custom-made products, the picture and parameters shown are just for reference)

General description
this is a type of aluminum PCB for the application of switch regulator. It's a single layer
MCPCB board at 1.6 mm base with 1 W/MK thermal conductivity. The aluminum plate is
from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2
Using supplied Gerber data. 30 boards are packed separately.


Features and benefits
Optimization combination of power circuit and control circuit,
Replace the fragile ceramic substrate and obtain a better mechanical durability,
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Prolong the service life of the product,
Comprehensive equipment management and maintenance and process control,
Engineering design prevents problems from occurring in pre-production.
Products and Manufacturing are certified by authorized organizations.
Great customer service
RoHS materials
UL conformed


Application
Ceiling lamp aluminum PCB, Power supply device,A filter electric circuit, High frequency
Amplifier


Parameter and data sheet

PCB SIZE	100 x 25mm=1PCS
BOARD TYPE	IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
through Hole Components	NO
LAYER STACKUP	Copper ------- 35um(1oz)
	1W/MK dielectric material 75um
	Aluminum 1060 1.6mm
TECHNOLOGY
Minimum Trace and Space:	10mil/18mil
Minimum / Maximum Holes:	0
Number of Different Holes:	0
Number of Drill Holes:	0
Number of Milled Slots:	2
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Aluminum core:	1W / MK dielectric material 75um
Thermal resistance(C/W)	0.45
Breakdown Voltage(VDC)	4000
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	1.8mm 0.12
PLATING and COATING
Surface Finish	Immersion gold 0.025m over 3m Nickel
Solder Mask Apply to:	TOP, 12micron Minimum
Solder Mask Color:	White, Taiyo PSR400 WT02
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	Black
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE of ARTWORK to BE SUPPLIED	Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
