Metal Core PCB
Metal core PCB is thermal management circuit board used in LED lighting which needs fast
Cooling dissipation. the metal core can be aluminum (aluminum core PCB) and copper
(copper core PCB), stainless steel, even iron base.

Advantages of MCPCB
1) Effective heat dissipation reduces the operating temperature of the module and prolongs
the service life;
2) Power density and reliability are improved up 10%;
3) Reduce the dependence of heat sinks and other hardware (including thermal interface
Materials);
4) Reduce the volume of the product;
5) Reduce the cost of hardware and assembly;
6) Optimization combination of power circuit and control circuit;
7) Replace the fragile ceramic substrate and obtain a better mechanical durability;
8) Reduce the operating temperature of the equipment.

Applications
LED lighting, Switch regulator, DC/AC converter, Communication electronic equipment,
A filter electric circuit, Office automation equipment, Motor driver,  Motor controller,
Automobile etc.

Solder Mask
Depending on whether light is to be absorbed or reflected, we have green, black and white
Solder mask. White solder mask is commonly used in LED PCB application and we use super
White LED solder mask and no yellowish or brown colour occurs after the bare PCB baking
as well as reflow and wave solder PCB assembly processes.

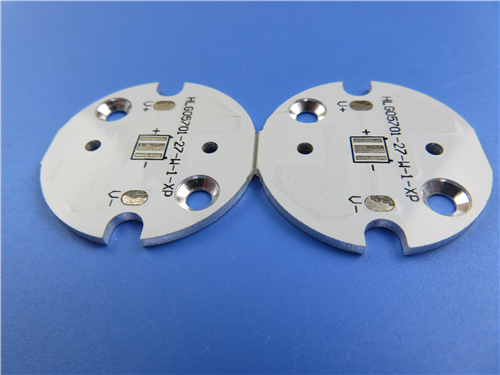

Aluminum PCB Case: Single Sided Aluminum PCB 1W
/ MK 6061 Aluminum HASL Pb Free
(PCB's are custom-made products, the picture and parameters shown are just for reference)


General description
this is a type of aluminum PCB for the application of LED Lighting. It's a single layer MCPCB
Board at 1.6 mm thick with 2 W/MK thermal conductivity. The aluminum plate is from ITEQ,
Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012 Class 2 using supplied
Gerber data. 30 panels are packed separately.


Features and benefits
Optimization combination of power circuit and control circuit,
Replace the fragile ceramic substrate and obtain a better mechanical durability,
Effective heat diffusion in the design of the circuit,
Reduce the operating temperature of the equipment,
Improve the power density and reliability of the device,
Prolong the service life of the product,
Thermal stress test, reliability test, insulation resistance test and ionic contamination
Test,
DDU Door to door shipment with competitive shipping cost,
Meeting your printed circuit board needs from PCB prototyping to mass volume
Production.
Diversified shipping method
Competitive price
on-time service


Application
Street lamp, Electronic regulator, Light conversion system, balanced amplifier


Parameter and data sheet

PCB SIZE	26 x 26 mm (diameter 26mm )
BOARD TYPE	IMS PCB
Number of Layers	Single sided PCB
Surface Mount Components	YES
through Hole Components	NO
LAYER STACKUP	Copper ------- 70um(2oz)
	2W/MK dielectric material 75um
	Aluminum 6061 1.5mm
TECHNOLOGY
Minimum Trace and Space:	18mil/25mil
Minimum / Maximum Holes:	2.0mm / 4.0mm
Number of Different Holes:	2
Number of Drill Holes:	4
Number of Milled Slots:	2
Number of Internal Cutouts:	0
Impedance Control	no
BOARD MATERIAL
Aluminum core:	2W / MK dielectric material 75um
Thermal resistance(C/W)	0.45
Breakdown Voltage(VDC)	4000
Final foil external:	2oz
Final foil internal:	0oz
Final height of PCB:	1.6mm 0.16
PLATING and COATING
Surface Finish	Hot air soldering leveling(HASL),lead free, Sn>=2.54m
Solder Mask Apply to:	TOP, 12micron Minimum
Solder Mask Color:	White
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	Black
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Non Plated Throught Hole (NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
TYPE of ARTWORK to BE SUPPLIED	Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.
