2.3-2.5GHz 10km+ real-time full HD 1080p drone video data uplink/downlink



Introduction:

IFLY Bi-Directional Video Data Links are wireless communication units specifically designed to increase wireless broadcasting for various types of unmanned aerial vehicles.

by employing leading wireless technologies, the IFLY family of products delivers long-range communication that enables real-time full HD Video Streaming.

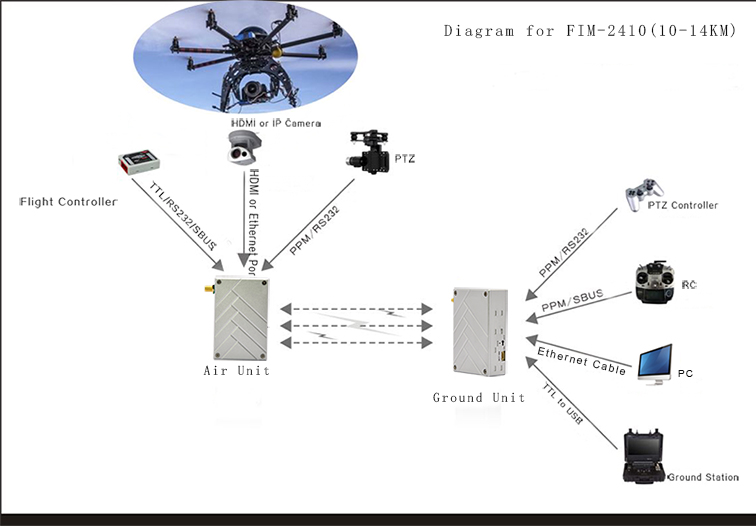

IFLYStands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.



Features:

• Supports HDMI and IP Interfaces
• Glass-to-Glass Low Latency
• Local Recording Ability
• Secured & Encrypted
• Monitoring, Telemetry and Full HD Real-Time Video



Advantages:

Drone manufacturers oftentimes use separate solutions for control, telemetry and payload, thereby increasing costs and weight. IFLY device give drone manufacturers the peace of mind of packaging all drone communication into a single RF channel in a lightweight solution and offers its experienced support team to hit the ground running.



Parameters

Frequency	3 frequency for your option 2.3GHz/2.4GHz/2.5GHz 2.3GHz(2304MHz-2390MHz) 2.4GHz(2402MHz-2482MHz) 2.5GHz(2500MHz-2570MHz)
Error Detection	LDPC FEC/Video H.264/265 Super Error Correction
RF Transmitted Power	1Watt (Air to ground 8-10km)
Power Consumption	TX: 10Watts
	RX: 6Watts
Frequency Bandwidth	4/8MHz
Latency	15-30ms
Transmission Rate	3-5Mbps
Receive Sensitivity	-100dbm@4Mhz, -95dbm@8Mhz
Video Color Space	Default 4:2:0 optional: 4:2:2/4:4:4
Antenna	1T 1R
Video Input/output Interface	HDMI mini TX/RX, or transform FFC to HDMI-A RX/TX
Video Compressed Format	H.264+H.265
BItrate	Software adjustment
Encryption	AES 128
Transmission Distance	Air to ground 10km
Start-up time	< 30s
Two-way function	Support video and duplex data simultaneously
Data	Support SBUS/TTL/MAVLINK Telemetry
Serial Port	Double Serial ports for bi-directional data and playload
Power supply	DC 7- 18V
Interface	1080P/60 HDMI Mini RX x1
	100Mbps Ethernet to USB / RJ45 on Windows 1
	S1 TTL bidirectional serial port x1
	Power Input x1
Indicator Light	HDMI input/output Status
	Transmitting and receiving
	Video board working Status
	Power
HDMI	HDMI mini/Flexible Flat Cable(FFC)
Temperature Range	Operating temperature: -40C ~+ 85C
	Storage temperature: -55C ~+ 100C
Appearance Design	CNC technology/ double aluminum alloy shell with waterproof design
Dimension	724719mm
Weight	Tx: 94g/Rx: 94g
