| Connection: | Flange |
|---|---|
| Brand Name: | Shunying |
| Type: | Flange |
| Technics: | Forged |
| Material: | Carbon Steel |
| Head Code: | Square |
| Shape: | Equal |
| Model Number: | JGD |
| Place of Origin: | China (Mainland) |
| Size: | DN32-DN3000 |
| Medium: | Sea Water/oil/gas/acid/alkali |
| Usage: | Pipe fitting |
| Flange surface: | Carbon steel/SS304/SS316 |
| Rubber material: | NBR/CR/EPDM/IIR |
Quick Details
Specifications

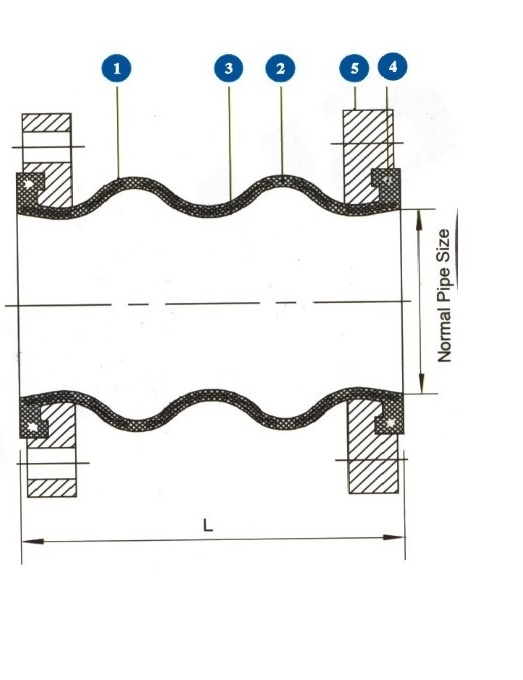

Diagrammatic Drawing:
Features
1 Minimal axial dimensions
2 Limited weight
3 Low warping forces
4 High-resistance to work
5 High-capacity acoustic damping
Main Data
| ||||||
Nominal Diameter(DN) |
Length L |
Axial displacement |
Horizontal Isplacement |
Angular deflection | ||
mm |
inch |
mm |
Extension |
Compression |
mm |
(a1+a2) |
32 |
1 |
95 |
6 |
9 |
9 |
15 |
40 |
1 |
95 |
6 |
10 |
9 |
15 |
50 |
2 |
105 |
7 |
10 |
10 |
15 |
65 |
2 |
115 |
7 |
15 |
11 |
15 |
80 |
3 |
135 |
8 |
19 |
12 |
15 |
100 |
4 |
150 |
10 |
19 |
13 |
15 |
125 |
5 |
165 |
12 |
20 |
13 |
15 |
150 |
6 |
180 |
12 |
25 |
14 |
15 |
200 |
8 |
210 |
16 |
25 |
22 |
15 |
250 |
10 |
230 |
16 |
25 |
22 |
15 |
300 |
12 |
245 |
16 |
25 |
22 |
15 |
350 |
14 |
255 |
16 |
25 |
22 |
15 |
400 |
16 |
255 |
16 |
25 |
22 |
15 |
450 |
18 |
255 |
16 |
25 |
22 |
15 |
500 |
20 |
255 |
16 |
25 |
22 |
15 |
600 |
24 |
260 |
16 |
25 |
22 |
15 |
700 |
28 |
260 |
16 |
25 |
22 |
15 |
800 |
32 |
260 |
16 |
25 |
22 |
15 |
900 |
36 |
260 |
16 |
25 |
22 |
15 |
1000 |
40 |
260 |
18 |
26 |
24 |
15 |
1200 |
48 |
260 |
18 |
26 |
24 |
15 |
1400 |
56 |
350 |
20 |
28 |
26 |
15 |
1600 |
64 |
350 |
25 |
35 |
30 |
10 |
1800 |
72 |
350 |
25 |
35 |
30 |
10 |
2000 |
80 |
420 |
25 |
35 |
30 |
10 |
2200 |
88 |
420 |
25 |
35 |
30 |
10 |
2400 |
96 |
420 |
25 |
35 |
30 |
10 |
2600 |
104 |
450 |
25 |
35 |
30 |
10 |
2800 |
112 |
450 |
25 |
35 |
30 |
10 |
3000 |
120 |
500 |
25 |
35 |
30 |
10 |
