Product Main

Quick Details

Connection:	Welding
Brand Name:	Shunying
Type:	Coupling
Technics:	Forged
Material:	Carbon Steel
Head Code:	Square
Shape:	Reducing
Model Number:	JDX
Place of Origin:	China (Mainland)
Size:	8040-600500
Flange surface:	Carbon steel, SS304, SS316
Usage:	Pipe fitting

Specifications

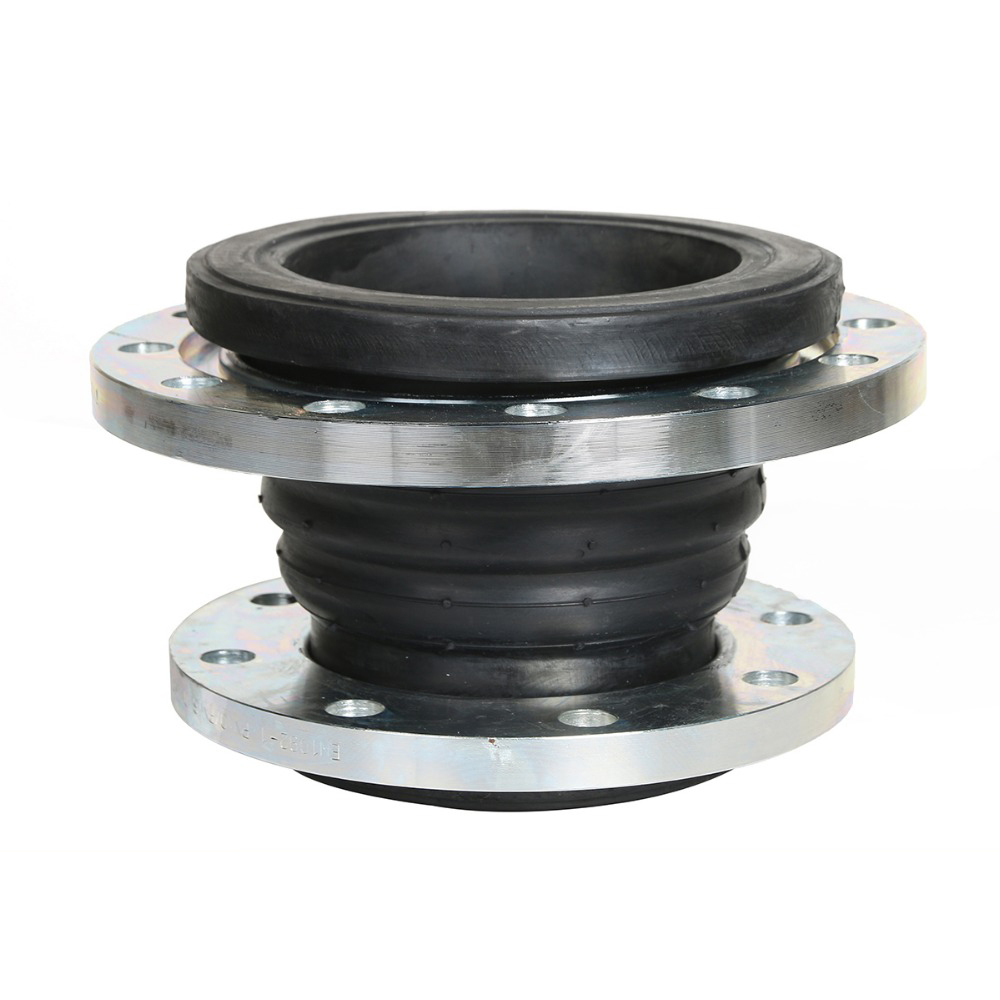

JDX type reducing rubber joint reducer

Main Data:

Main connecting dimension
Nominal diameter	The installation length	Axial displacement		The radial displacement	Deflexion angle (+)
DN XDN	The installation length	Extension(mm)	Compression(mm)	The radial displacement	Deflexion angle (+)
5032	180	20	30	45	35
5040	180	20	30	45	35
6540	180	20	30	45	35
6550	180	20	30	45	35
8040	180	20	30	45	35
8050	180	20	30	45	35
8065	180	20	30	45	35
10040	180	20	30	45	35
10050	180	20	30	45	35
10065	180	22	30	45	35
10080	180	22	30	45	35
12550	200	22	30	45	35
12565	200	22	30	45	35
12580	200	22	30	45	35
125100	200	22	30	45	35
15050	200	22	30	45	35
15065	200	22	30	45	35
15080	200	22	30	45	35
150100	200	22	30	45	35
150125	200	22	30	45	35
20080	200	22	30	40	30
200100	200	22	30	40	30
200125	200	25	30	40	30
200150	200	25	35	40	30
250125	220	25	35	40	30
250150	220	25	35	40	30
250200	220	25	35	40	30
300125	220	25	35	40	30
300150	220	25	35	40	30
300200	220	25	35	40	30
300250	220	25	35	40	30
350150	240	25	35	40	30
350200	240	28	38	35	26
350250	240	28	38	35	26
350300	240	25	35	40	30
400200	240	25	35	40	30
400250	240	28	38	40	30
400300	240	28	38	40	30
400350	240	28	38	40	30
450300	240	28	38	40	30
450350	240	28	38	40	30
450400	240	28	38	40	30
500350	240	28	38	40	30
500400	240	28	38	40	30
500450	240	28	38	40	30
600400	240	28	38	40	30
600450	240	28	38	40	30
600500	240	28	38	40	30
