| Type: | Filling Machine |
|---|---|
| Brand Name: | SH |
| Packaging Material: | Glass,Paper,Plastic |
| Packaging Type: | Bags,Barrel,Bottles,Cans,Capsule,Cartons,Pouch,Stand-up Pouch |
| Application: | Apparel,Beverage,Food,Machinery & Hardware |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO CE |
| Weight: | 3500 |
| Dimension(L*W*H): | 3100*2300*2800mm |
| Model Number: | SH-18-18-6 |
| Place of Origin: | China (Mainland) |
| Power: | 3.2KW |
| Voltage: | 220V/380V 50HZ |
| Driven Type: | Electric |
| Automatic Grade: | Automatic |
| After-sales Service: | Field installation, commissioning and training |
| Filling material: | liquid water, juice, yogurt, soft drink |
| Filling Capacity: | 3000b/h(1500ml) |
| Filling range: | 300-1500ml (Customized) |
| Material: | SS304 |
| Function: | Water bottle filling machine |
| Packing type: | Glass/plastic bottle |
| Processing Types: | Automatic Rinsing Filling Capping Machine |
Quick Details
Specifications

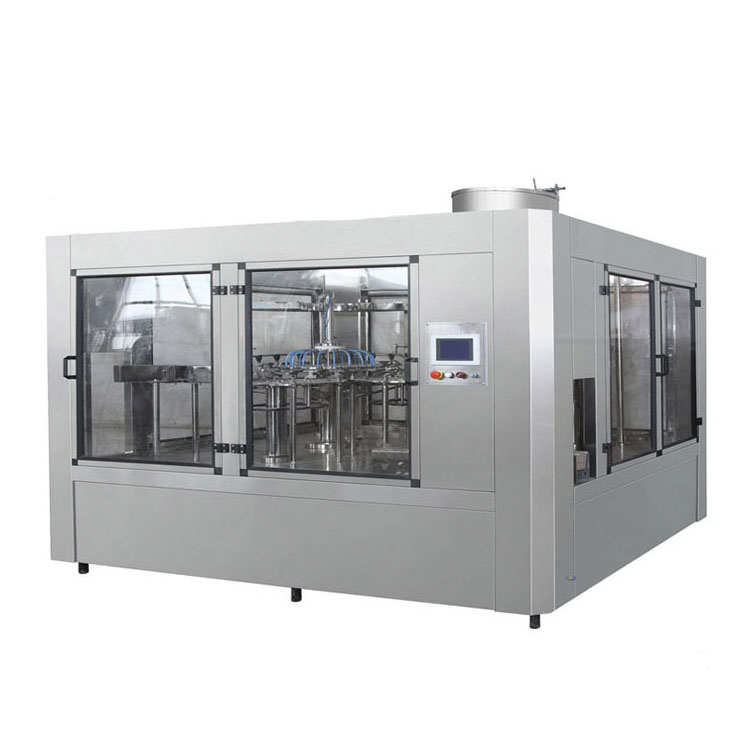

Liquid Water Bottle Filling Machine Automatic Mango Juice PET Bottle Filling Machine
Function and Features:
1. this Machine can be used in pure water, mineral water,fruit juice and fruit wine,etc. for washing filling capping controlled by PLC.
Description:
2.the gravity fixed liquid surface filling is fast.
3.the magnetic torque is used for screw capping.
4.the Machine by PLC automatic control, the production capacity can be displayed digitally and can be adjusted conveniently.
Main Technical Parameters:
| Model | SH18-18-6 |
| Production capacity | 3000b/h(1500ml) |
| Way of filling | Micro-negative pressure filling |
| Filling precision | 5mm |
| Polyester bottle standard | Bottle Diameter 50-92mm; Height:150-320mm |
| Suitable cap shape | Plastic cap |
| Water pressure of washing bottle | 0.2-0.25Mpa |
| Water consumption for water bottle | 1600kg/h |
| Gas source pressure | 0.4Mpa |
| Total Weight | 3500Kg |
| Dimension | 3100*2300*2800mm |
| Model/Parameter | SHEAN-8/3 | ||||
| Application | Beer, carbonated drinks, gas beverage, cold coffee, sparkling water, cider, soda water, herbal tea, non-carbonated drinks and so on | ||||
| Packing Type | Aluminum cans, tin cans, pet cans, etc | ||||
| Capacity | 2500CPH(12oz) | 3500CPH(1L) | 6000CPH | 10000CPH | 14000CPH |
| Filling Range | 130ml, 250ml, 330ml, 355ml, 500ml, 12oz, 16oz, 1L and so on (0.1-1L) | ||||
| Power | 0.75KW | 1.5KW | 3.7KW | 4.5KW | 5.2KW |
| Size | 1.8M*1.3M*1.95M | 1.9M*1.3M*1.95M | 2.3M*1.4M*1.9M | 2.58M*1.7M*1.9M | 2.8M*1.7M*1.95M |
