2W COFDM 2.3-2.5GHz Drone Video Data Transmitter with Dual IP Camera and Serial Port



Introduction:

FIP-2420 is a mini-controller device, specically designed for commercial & industrial drones.
It enables controlling a drone as well as transmitting or viewing of video and data while operating on air & ground missions.



Features:

• Miniature design at 146 grams
• Simultaneous Ethernet and Serial Data
• 2W power output
• up to 5 Mbps throughput
• Encryption available as an option
• Extended temperature range



Advantages:
FIP-2420 is an ideal Ethernet COFDM Radio for mobile long range video data wireless communication, it is able to manage IP cameras. It also support double serial data transmission, it not only transmit Pixhawk temetry, but also can transmit PTZ control signal.



Parameter

Frequency	2.4GHz(2402MHz-2482MHz)
RF Transmitting Power	33dBm(air to ground 18-22km)
Frequency Bandwidth	2/4/6/8Mhz
Antenna	1T1R
Adjustment mode of bit rate	Software adjustment
Communication Channel Encryption	AES 128
Transmission Mode	Point to point
Start-up time	< 30s
Error Detection	LDPC FEC
Two-way function	Support IP video and duplex data simultaneously
Data	Support SBUS/PPM/TTL/232/MAVLINK TELEMETRY
Ethernet Protocol	TCP/IP/UDP
Transmission Rate	3-5Mbps
Sensitivity	-100dbm@4Mhz -95dbm@8Mhz
Power	DC 7-18V
Power Consumption	TX: 16Watts
	RX: 5Watts
Temperature	Operating temperature: -40C - +85C
	Storage temperature: -55C - +100C
Serial Port	Double Serial ports for bi-directional data and playload

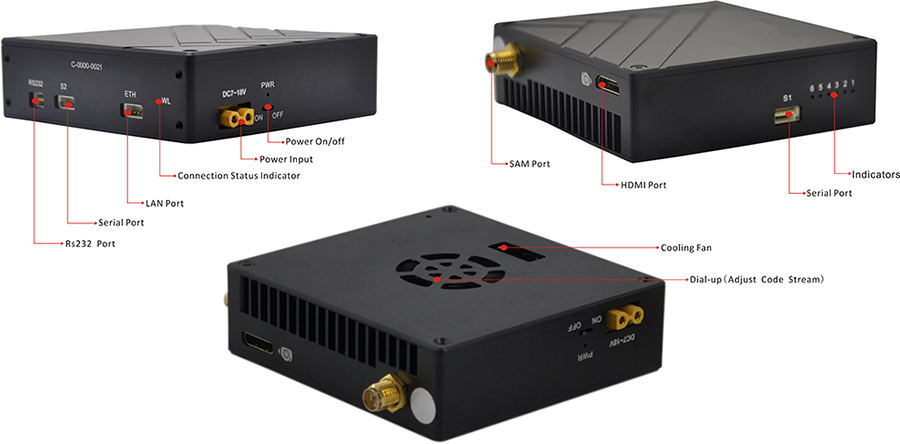

Interface	Power input interface 1
	Antenna interface 2
	RS232 Bidirectional Port 1
	Ethernet to USB / RJ45 on Windows 1(TX), Ethernet Port x2(RX)
Indicator	RJ45 input/output indicator light
	Transmitting and receiving indicator light
	Transmitting and receiving indicator light
	Power light
Appearance Design	CNC technology/ double aluminum alloy shell with waterproof design
Size	Tx/ Rx: 76*73*24mm
Net Weight	TX: 146g
	Rx: 146g
