UAV Radio and Telemetry Systems for HD video transmission long range 10km



Introduction



MIMO performance provides multipath immunity resulting in fast & consistent throughput at impressive distances!

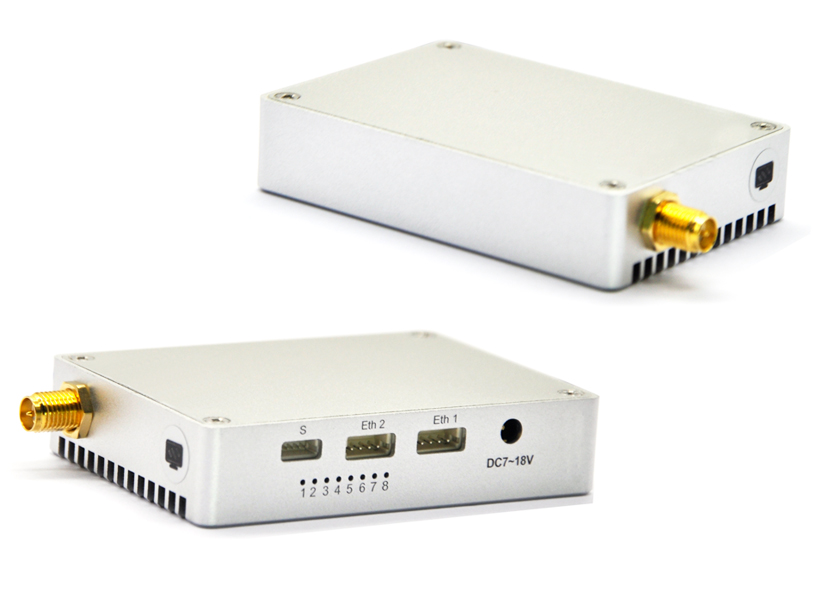

FIP-2410 MIMO Digital Data Link is a miniature high power, 2X2 MIMO 2.4GHz wirless solution that provides the bandwidth and range needed for complex data intensive applications. the MIMO TDD features 2X2 MIMO, using Low-Density Parity Check (LDPC) to achieve robust RF performance.

the miniature, lightweight and robust design allows the FIP-2410 to be an ideal candidate for size sensitive applications. the high speed, long range capabilities of the FIP-2410 allow for high quality wireless video and telemetry communications.





System Features:

• 4/8Mhz bandwidth
• VHF-2.4GHz
• 1 MHz tuning steps
• IP Camera Input
• Bare board weighs less than 40grams
• Exceptionally well suited for UAV
• 10KM range(LOS)
• Available in 100mw-1000mW(Adjustable by software)
• Support double IP video stream input
• TDD-COFDM technology
• Configurable transmission parameters including frequency bandwidth, code rate guard interval, constellation
• Long range transmission
• High resilience to interference, echo and Doppler Effect (high mobility)
• Ease of installation
• Transparent mode Serial mix with up 115kbps
• Plug-and-play installation
• Channel selection on software
• Easy configuration via software(TDD software)





Criteria	Transmitter	Receiver
Video Interface	RJ-45	RJ-45
Antenna Connectors	SMA*2	SMA*2
Power Input	7-18V(12V/0.33A)	7-18V(12V/0.33A)
Dimensions	6848x15mm	6848x15mm
Weight	68g	68g
