| Brand Name: | Fenjin |
|---|---|
| material: | Q235B |
| Condition: | New |
| type: | dia.76 - dia. 217 |
| Color: | customer color |
| Model Number: | FJSR-001 |
| Place of Origin: | China (Mainland) |
| shaft material: | Q235B |
| bearing brand: | C&U, LYC, HRB, SKF |
| sealing: | labyrinth seal |
| factory production capacity: | 700,000 pcs annaully |
| service hours: | 10,0000 hours |
| package: | wooden |
Quick Details
Specifications

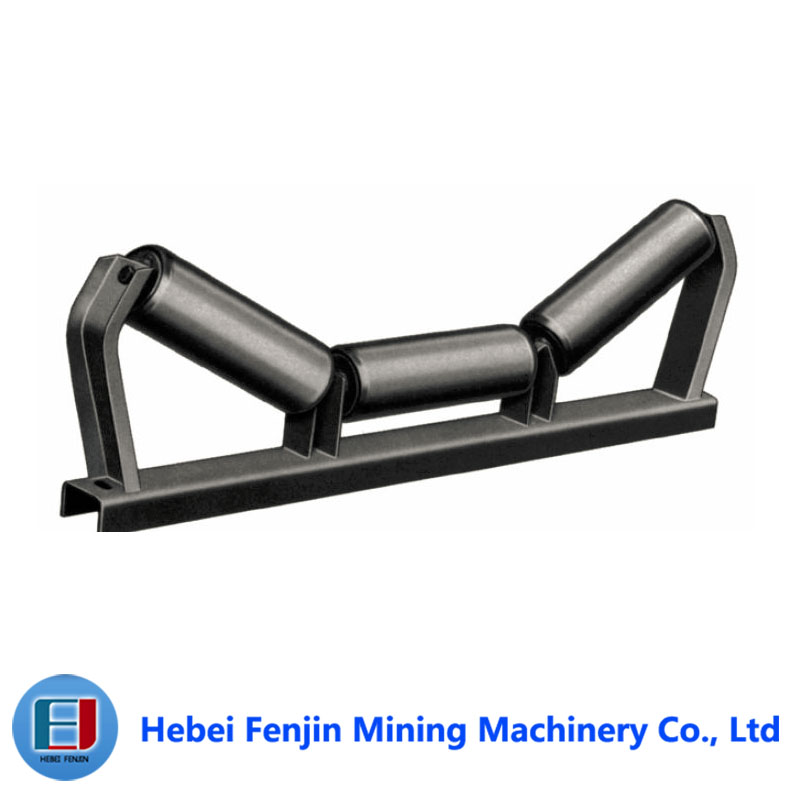

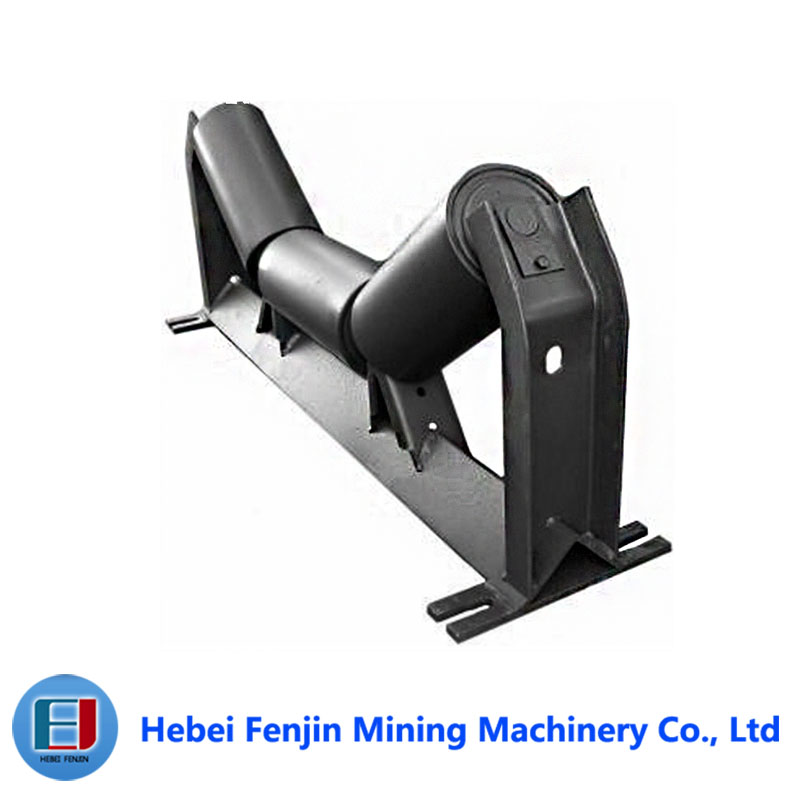

Chinese factory made steel conveyor roller idler mining spare parts
1. Details
1) Diameter: 89mm-260mm.
2) Length: 190-3400mm.
3) Tube: Q235(GB) equal to S235JR(DIN)
4) Shaft: 45# Steel(GB) equal to C45(DIN)
5) Bearing:HRB,SKF,NSK etc.
6) Bearing house: ST14(DIN)
2. Inner Structure and Materail
Tube |
Tube special for roller, compared with ordinary steel tube, in the following Aspects, it has great advantages which can make the roller have minimum Radial play eccentricity |
Shaft |
High precision cold-drawn steel which has high brightness and little tolerance. |
Shaft end |
both ends of the tube are simultaneously machined and chamfered. |
Bearing |
Use deep groove ball bearing with big clearance, it's C3, C4. and this Clearance can make rollers revolve flexibly. Bearing type is 2RZ and 2RS with oil seal which have advantage in dust proof. |
Lubrication |
Grease is Lithium soap type grease with Rust Inhibitors |
Seals |
Multiple labyrinth seal, the material we can provide has ABS resin, Nylon, HDPE, Polyurethane, polyformaldehyde and so on. |
Welding |
Mixed gas shielded arc welding end. |
Radial eccentricity |
We can assure play radial eccentricity less than 0.5, if have special Requirements, it can reach 0.2~0.3. |
Rubber |
It can be changed separately, so it can reduce the cost for you. Rubber cold Resistant -45 degree Celsius and high temperature resistance 120 degree Celsius. the rubber hardness 65-70 SHORE. |
Drawing |
We have professional engineer to design the type of roller. Also we can Produce according to your drawing and request. |
Painting |
Ordinary painting, hot galvanized painting, electric static spraying painting, Baked painting |
Company Information
Hebei Fenjin Mining Machinery Co., Ltd is a high-tech enterprise professionally on research, development, production, sales and service. Located in Hebei conveying machinery production base.
the company gathered in large number of talented person who are excellent in production and management, created an elite team who can meet the needs of all level. Advanced first-class production equipment, complete testing equipment, the company has the modern most advanced full-automatic flexible roller assembly production line, truly realized full-automatic from raw material to finished product to inspection, the roller production reached the international advanced standard.
the company mainly research develop and manufacture large bandwidth, high speed, high environmental protection, long distance conveyor, heavy duty discharging car etc, suitable for various mining, coal, metallurgy, thermal power, cement, port and chemical industries. The products has been exported to more than 30 countries all over the world and well received by users.
the main product of our company include belt conveyor, bucket elevator, slat conveyor, chain conveyor, screw conveyor, polyurethane, etc, more than 100 kinds of specification, among which the maximum 2400mm belt conveyor has been supplied to the market, the roller has reached international advanced level. Heavy duty scraper conveyor has been provided to the market with the largest groove width of 1800mm products. In addition, our company also deal with FRP products, hydraulic hose series products and so on.
Our company has strong technical strength. We have our own technology center and CAD workstation. We use the international advanced design software for the product design and development. We adhere to the way of combining produce, learn and research together. We keep technical exchanges and cooperation with domestic and foreign professions and design institutions. with new products constantly out, we get public praise from relevant experts and clients.
FAQ
1 What is the business of your company?
Hebei Fenjin Mining Machinery Co., Ltd is specialized in designing and manufacturing conveying Machinery, conveyor rollers,
Conveyor pulley, impact idler, nylon roller, aligning roller, friction Roller, taper idler, flat roller, return roller, Spiral roller, belt cleaner, Conveyor idler bracket.
2 What is the advantages compared to other suppliers?
Fenjin has the unique full Automatic roller production line, high machining accuracy, uniform and Stable quality, which can realizecontinuous and efficient professional production, so Fenjin can Provide good quality product and service to our customers.
3 Can we visit your company?
No problem, we are a pRofessional manufacturer, look forward to your arrival and we will lead You to visit our factory and fully- automatic assembly lines.
4 What is the lead time?
in general, Mass production needs 15-30 days, also according to the order volume.
5 Can you accept mixed batch of different products?
Yes, we support different product mix wholesale, no limit of raw materials and mechanical parts, and color specifications, etc.
6 how about the packing ?
WE can provide wOoden packing, pLywood board packing, 20 feet container, 40 feet container.
