| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Certification: | CE,ISO9001 |
| Brand Name: | Clirik |
| Type: | Raymond Mill |
| Condition: | New |
| Warranty: | 1 year |
| Weight: | heavy |
| Dimension(L*W*H): | depending on models |
| Model Number: | YGM |
| Place of Origin: | China (Mainland) |
| Capacity(t/h): | 1-25 t/h |
| Power(W): | depending on models |
| Motor Type: | AC Motor |
| Type: | Raymond grinding mill |
| Name: | carbon black raymond grinding mill |
| Output size: | 50-325 mesh/0.613-0.033 mm |
| Input size: | less than 40 mm |
| Models: | YGM7815/8314/9517/4121 |
| Color: | customization |
| Material grinding test: | available |
| Price: | negotiate |
Quick Details
Specifications
High capacity mineral YGM7815 carbon black raymond mill for sale
1.Brief Introduction:

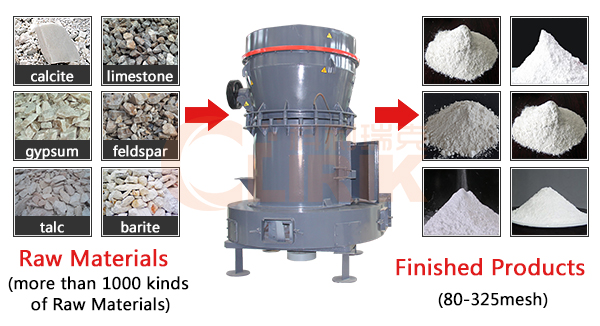

Raymond mill widely used in grinding equipment of mine, cement, chemical industry, is one of the important equipment of non metallic mineral deep procession. since its strong stability,adaptability and high cost performance it has popularized in non metallic mineral processing field. Applied in grinding various non plastic ore, mineral soil,metallic oxide, chemical composition etc. Which Mohs hardness not more than grade 7,humidity less than 6% non flammable and combustible material such as speckstone, dinas rock, graphite, fluorite, magnesia stone, bentonite, kaoline, pottery clay etc.
Features of High capacity mineral YGM7815 carbon black raymond mill for sale
1. High capacity, 1-20t/h.
2.the fineness can be adjusted between 50 and 325 mesh (315-45 micron).
3. Fixed with 1000-1500kg pressure springs, and its capacity increase 20% to 30%; When the grinding roller and grinding ring, stable capacity and fineness can be guaranteed.
4. Easy maintenance, simple structure, low investment
5. Environment-friendly. Application of pulse bag filter & muffler greatly alleviates dust pollution and noise.
6. Advanced intelligent speed control device. Convenient adjusting, uniform particle size.
Working Principle of High capacity mineral YGM7815 carbon black raymond mill for sale

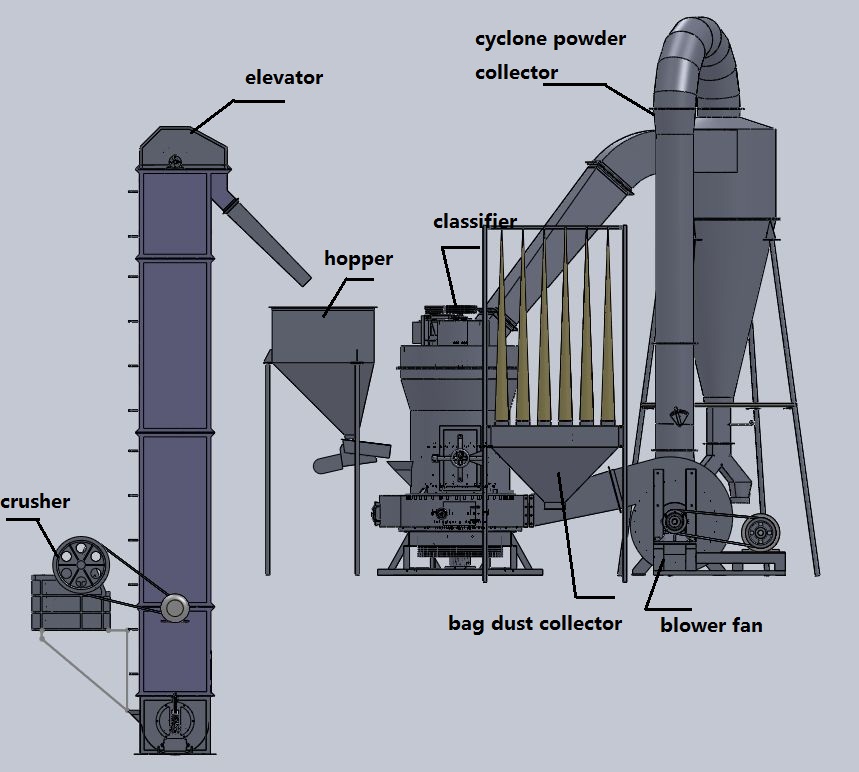

the whole machine is collocated with jaw crusher, elevator, hopper, electromagnetic vibrating feeder, main unit, classifier, collector and high-pressure blower.
Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. the grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products;
the airflow is sucked to the blower by return pipe on the top of cyclone collector. the whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

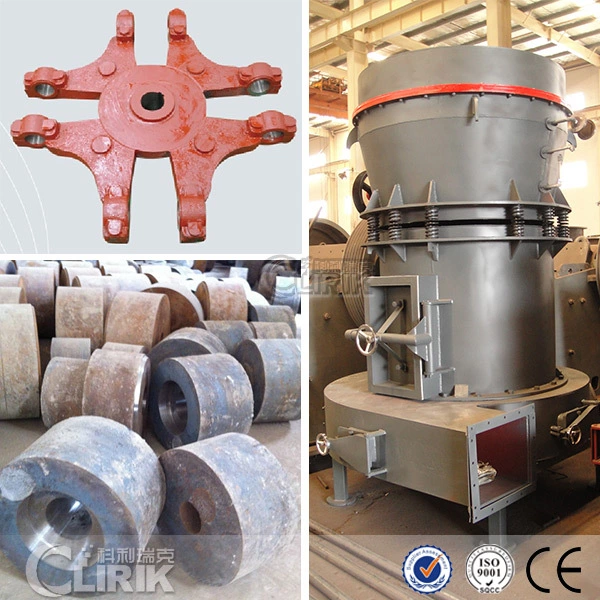

Main Unit & wearing parts of High capacity mineral YGM7815 carbon black raymond mill for sale
2.Techincal parameters:
Main technical parameters of High capacity mineral YGM7815 carbon black raymond mill for sale
Model |
Roller |
Ring |
Feeding Size(mm) |
Finished Size(mm) |
Motor Powder(kw) |
Capacity(t/h) |
Overall Dimension(mm) | |||
Quantity (piece) |
Diameter (mm) |
Height (mm) |
Inner Diameter(mm) |
Height(mm) | ||||||
YGM7815 |
3 |
260 |
150 |
780 |
150 |
15 |
0.613-0.033 |
18.5 |
1--3 |
4300*3500*5100 |
YGM8314 |
3 |
270 |
140 |
830 |
140 |
20 |
0.613-0.033 |
22 |
1.2--4.6 |
5300*4100*5200 |
YGM9517 |
4 |
310 |
170 |
950 |
170 |
25 |
0.613-0.033 |
37 |
2.1-5.6 |
7100*5900*7900 |
YGM4121 |
5 |
410 |
210 |
1280 |
210 |
30 |
0.613-0.033 |
75 |
2.8-10.5 |
9200*7250*9700 |
MTM160 |
6 |
440 |
270 |
160 |
270 |
35 |
0.613-0.033 |
132 |
5--20 |
12550*5700*8350 |
3.Performance features:
Advantages of High capacity mineral YGM7815 carbon black raymond mill for sale
1. Ultrafine grinding 325-2500mesh(47-5um)
2. Fast delivery(20~30 days after deposit)
3. the grinding material moisture under 5%.
4. High capacity, 0.5-12 t/h.
5. Reliable and durable, long lifecycle of spare parts.
6. Firm, durable(steady use for more than 30 years) & easy to use
7. Suitable for types of ores
8. Various of types/colors/size/specifications for selection
9. Hot sold by manufacturer/support OEM and ODM with good quality & price
10. Customer first, integrity highest
11. the only manufacturer in Shanghai
Company Information
Company Brief Introduction
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china, as a pioneer enterprise, which is specializing in research, manufacture and sales of all kinds of grinding mill, from coarse grinding mill, fine grinding mill and ultra fine grinding mill, grinding mill related equipment, such as powder modifying machine, powder packing machine.Powder conveying system, etc. We have devoted into grinding field for more than 30 years, we belive only focus can be professional.
Our company has already formed a full set of modern production line, equipped with intelligent, standardized testing and controlling laboratories, owned a professional team for R&D, production, sales and service.

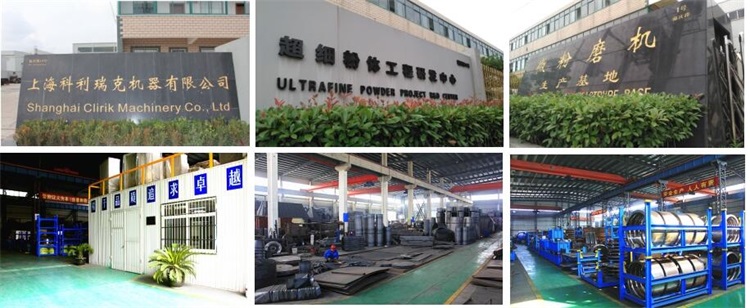

Our factory
Customer Visit
Our Certificates
Our company has get ISO9001, our products have recieved CE certification and other qualifications.
Packaging & Shipping
1.Seaworthy packing with sheet, fixed box, etc.
2. Container Loading
3. Delivery time: 15 days after receiving deposit.
4. All payment terms are available.
Our Services
Pre-sales Service:
Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment, optimized process configuration and a full range of technical support.Every customer has the chance to visit the working machinein the site before placing the order,we help to arrange cars, hotels, and translators for every visiting customer.
after-sales Service:
Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the calcium carbonate powder site to help install the customers' plants. Necessary training about machinedaily maintenance to local workers is provided also.
