| Brand Name: | AFEN |
|---|---|
| Weight: | 115KG |
| Color: | black |
| Material: | metal |
| Size: | 1688.5 mm*588 mm*601 mm |
| Model Number: | AF-CL402 |
| Place of Origin: | China (Mainland) |
| Capacity: | 4 kinds of cold drink,4 kinds of hot drink |
| Rated voltage: | AC220V/50HZ |
| Standby power: | 90W |
| The normal temperature bucket capacity: | 5L |
| Cooling way: | Dual chip cooling |
Quick Details
Specifications

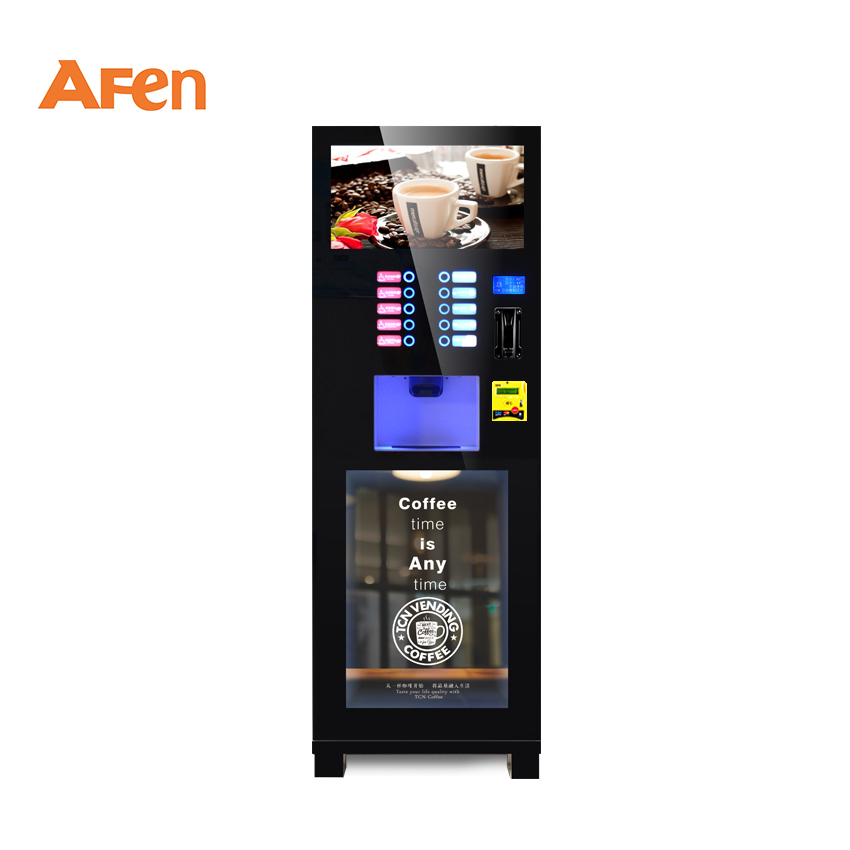

AFEN mini size cup coffee vending machine with display front
Specifications:
Model |
AF-CL402(22HP) |
Name |
Floor Standing Type Coffee Vending Machine |
Outside Dimensions |
H:1688.5Mm, W: 588Mm, D:601 mm |
Weight |
115kgs |
Rated voltage |
AC220V/50HZ |
Rated power |
900/1800W |
Standby power |
90W |
Table Type |
H1486(750+736)*W500*D617.5MM |
the normal temperature bucket capacity |
5L |
Electronic cooling tank capacity |
1.6L |
the heating tank capacity |
1.8L |
Bucket capacity of water supply |
19L |
Capacity |
130pcs(6.5-9.0 Oz.) |
the control mode: |
ARM control |
Cooling way |
Dual chip cooling |
Water supply way |
Pumping or under external water |
Main Function:
| 1.High strength & powder coated cabinet with fully insulated material, energy efficient vending unit. |
| 2.Secure door with wrap-around enclosures and LED lighting. |
| 3.Triple glazed viewing window. |
| 4.Dual spirals on chip trays. |
| 5.Each tray tilts down 45 degree for fast & easy loading. |
| 6.Adjustable tray partition and height. |
| 7.Secure /lockable cash box. |
| 8.WIth Temperature sensor (4 to 25 degrees Celsius adjustable) Modular Cooling system, easy to maintain. |
| 9.WIth Drop sensor/Vend Assure TM / vend sensors/guaranteed delivery system. (holds credit until product is delivered). |
| 10.GPRS remote monitoring system, delivers real time live information. |
| 11.Glass Heater embedded on glass to prevenet condensing of moisture. |
| 12.Excellent capacity and size ratio. |
| 13.Flexible layout for snack,fresh food,cans and bottles. |
| 14.ENergy efficient compressor,etc. |
