Product Description

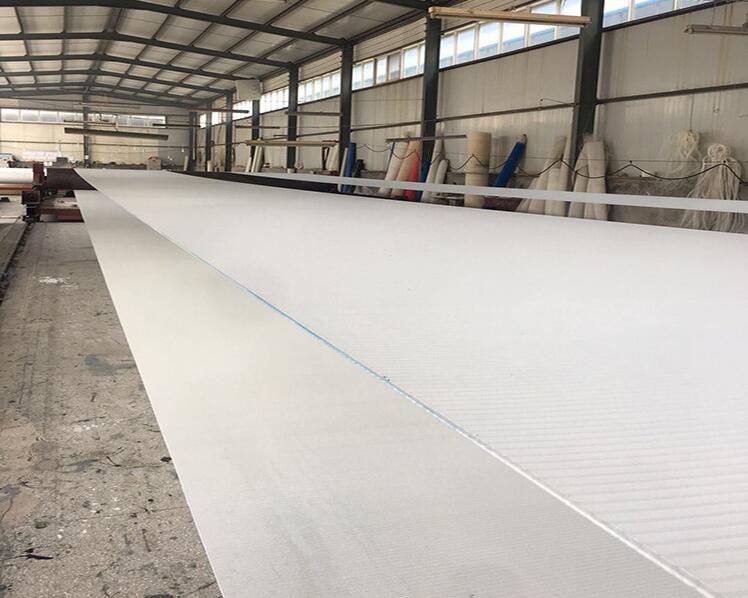

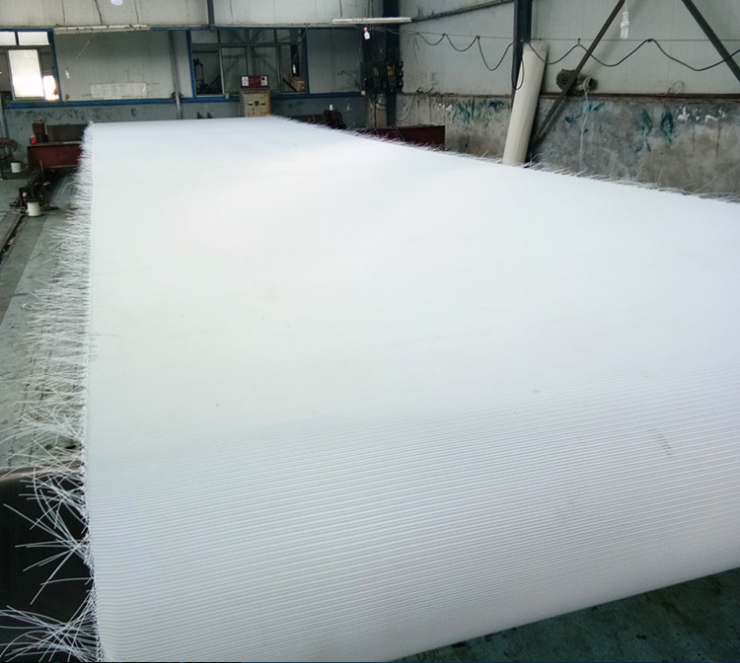

Polyester spiral link dryer fabric spiral dryer screen mesh conveyor belt is made of high quality polyester fiber and passed the heat setting pricess.after heat setting,the spiral dryer fabric can work stable under high tension.
Polyester spiral link dryer fabric spiral dryer screen mesh conveyor belt offer high strength,high resistance against abrasion,durability,smoothness and good dirt release.
the width of polyester spiral link dryer fabric spiral dryer screen mesh conveyor belt is up to 6 linear meter and the belts can work under PH range 2 to 8.

Features

 acid and alkali resistant.
 wear resistant and long service life.
 heat resistant
 good permeability
 smooth surface
High quality polyester threads.

Technical Data

Spiral mesh

Type	Width of loop(mm)	Monofilament diameter(mm)	Mesh weight(kg)	Air permeability(m3/m2h)
Supper large loop	10	0.9	1.64	20000
Large loop	8	0.68	1.31	18000
Medium loop	7.15	0.68	1.40	16000
Small loop	5.2	0.5	1.0	15000


Spiral filter press mesh

Type	Width of loop(mm)	Filler wire(mm)	Mesh weight (kg)	Air permeability(m3/m2h)
Large loop	8	0.8*4	2.0	6080
Medium loop6890B1	7.15	0.9*4	1.9	5760
Medium loop6890B3	7.15	Flat wire2.1*0.8	1.8	9000
Small loop5080	5.2	0.6*3	1.5	4480
