| Connection: | Female |
|---|---|
| Brand Name: | Jinsheng |
| Type: | Elbow |
| Technics: | Forged |
| Material: | Carbon Steel |
| Head Code: | |
| Shape: | Equal |
| Model Number: | SJ-03 |
| Place of Origin: | China (Mainland) |
| Product Name: | ASME/ANSI B16.11 Forged High Pressure Pipe Fittings For gas/water/oil piping |
| Material: | Carbon steel ASTM A234 WPB, stainless steel A403 WP304/304L/316/316L/317/317L/321,alloy Steel P22/P91/P5/P11/P9/P12T91/T9/T5 |
| Size: | 1/8" (DN6) up to 4" (DN100) |
| Standard: | ANSI B16.11,BS3799, JIS B2316,MSS SP-83,MSS SP-79,etc. |
| Rating/Sch No: | BW: 40/STD/80/160/XS/XXS SW: 3000/6000/9000 NPT: 2000/3000/6000 |
| Application: | used to change the direction of the flow in pipeline |
| Type: | socket elbow,socket tee,threaded elbow,threaded tee |
Quick Details
Specifications
ASME/ANSI B16.11 Forged High Pressure Pipe Fittings For gas/water/oil pipeline
Product name: Forged pipe fittings
Product details:

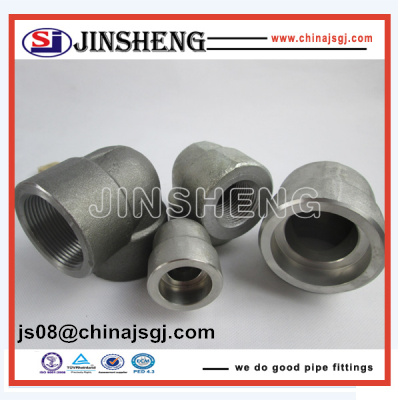

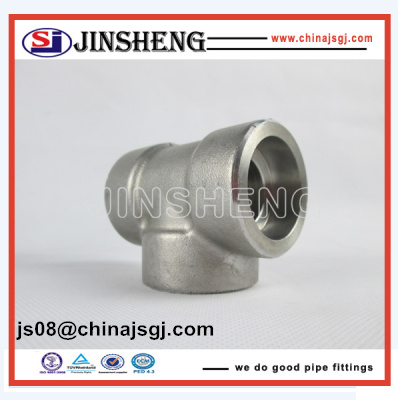

Forged pipe fittings mainly includes socket pipe fittings and threaded pipe fittings in types of Elbow,Tee,Nipple,Socket,Union,Outlet,etc.these Forged Pipe Fittings are commonly used to change the direction of the flow in pipeline.
Material of forged pipe fittings mainly includes the followings:
Carbon steel ASTM A234 WPB,
Stainless steel A403 WP304/304L/316/316L/317/317L/321,
Alloy Steel P22/P91/P5/P11/P9/P12T91/T9/T5
Available pipe size ranges from 1/8" (DN6) up to 4" (DN100).
Forged pipe fittings are manufactured in accordance with standard ANSI B16.11,BS3799,
JIS B2316,MSS SP-83,MSS SP-79,etc.
Rating/Sch No of forged pipe fittings:
BW: 40/STD/80/160/XS/XXS
SW: 3000/6000/9000
NPT: 2000/3000/6000
Forged fittings are traditionally packed in Loose package,plywood case,plywood pallet, plastic cap or Iron protector as customers' requirements.
