| Type: | Packaging Line |
|---|---|
| Brand Name: | thinklink |
| Packaging Material: | Metal |
| Packaging Type: | wooden pallet up to your requirement, |
| Application: | Beverage,Chemical,Food |
| Type: | can machine |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO9001 |
| Weight: | about 4ton |
| Dimension(L*W*H): | 4900*1580*1900mm |
| Model Number: | IRC01 |
| Place of Origin: | China (Mainland) |
| Power: | 18kw/36KW |
| Voltage: | Three phase 380V,50Hz |
| Driven Type: | Mechanical |
| Automatic Grade: | Automatic |
| Condition: | New |
| Function: | Other,can making |
| intelligent combination for irregular shaped tin cans: | double channel 100-110cans/min |
| Commpressed air: | 0.6MPa, 0.9M3 |
| Total weight: | Double channel: about 8T |
Quick Details
Specifications
Intelligent combination for irregular shaped tin cans
Double channel:
Product introduction
Irregular Can Body Combination Machine is one of our main products. the Machine is specially made to focus on the irregular can body making. Based on the production technology request, this machine consists of the functions of can Body feeding, seam locating, expanding, paneling, neck expanding, flanging, and Output into one machine, which will save the material carrying & loading Process between each machine to lower the production cost and increase the Production efficiency. Meanwhile, it adopts the can stuck protection, Synchronically linking control, to guarantee the machine quality.
Technical parameter
Items |
Single channel |
Double channel |
Production capacity |
50-55 cans/min |
100-110cans/min |
Can size |
Luncheon Meat Can, T-shape Can, 1L-5L rectangular Cans and other irregular cans | |
Supply voltage |
Three-phase, 380V, 50Hz | |
Electrical power |
18kw |
36kw |
Cooling water |
0.2mpa,20 | |
Compressed air |
0.6MPa, 0.5m |
0.6MPa,0.9m |
Overall size(L*W*H) |
4900*750*1900mm |
4900*1580*1900mm |
Total weight |
about 4T |
about 8T |
Double channel:
Single channel:

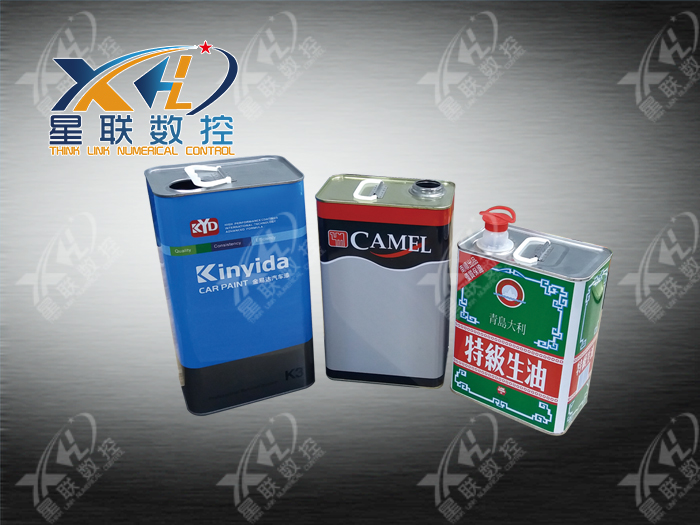

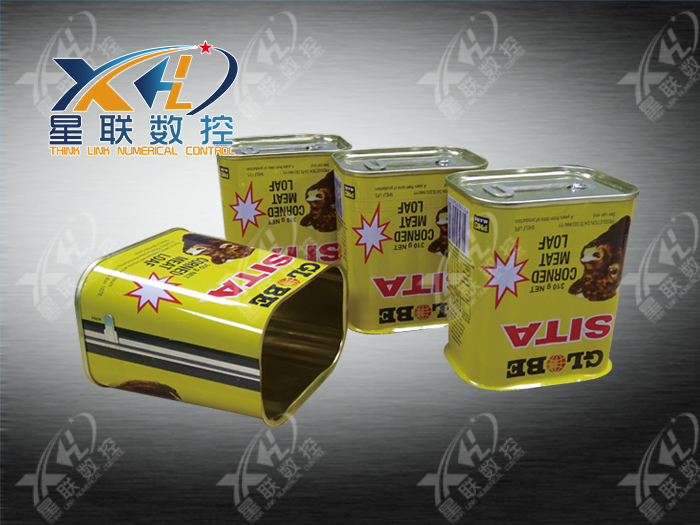

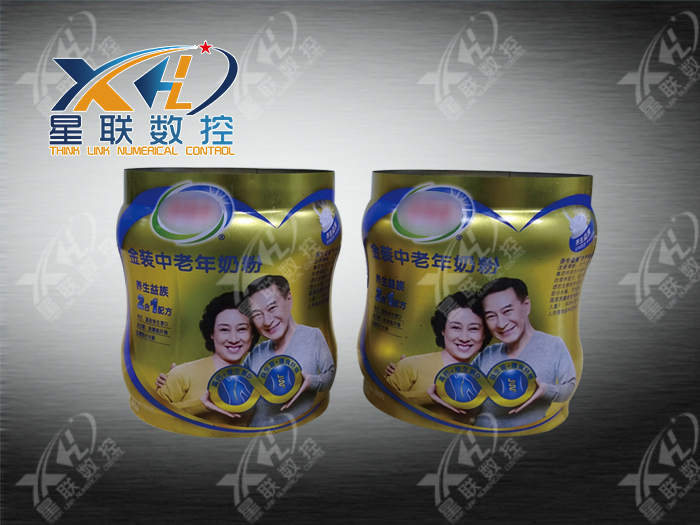

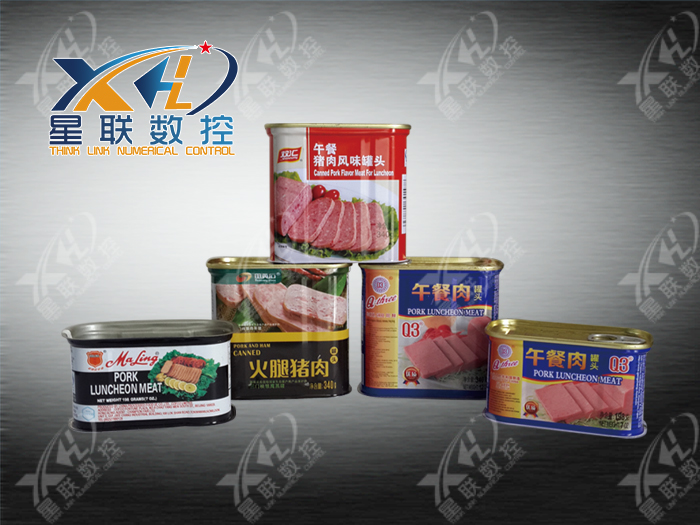

Applicable product
