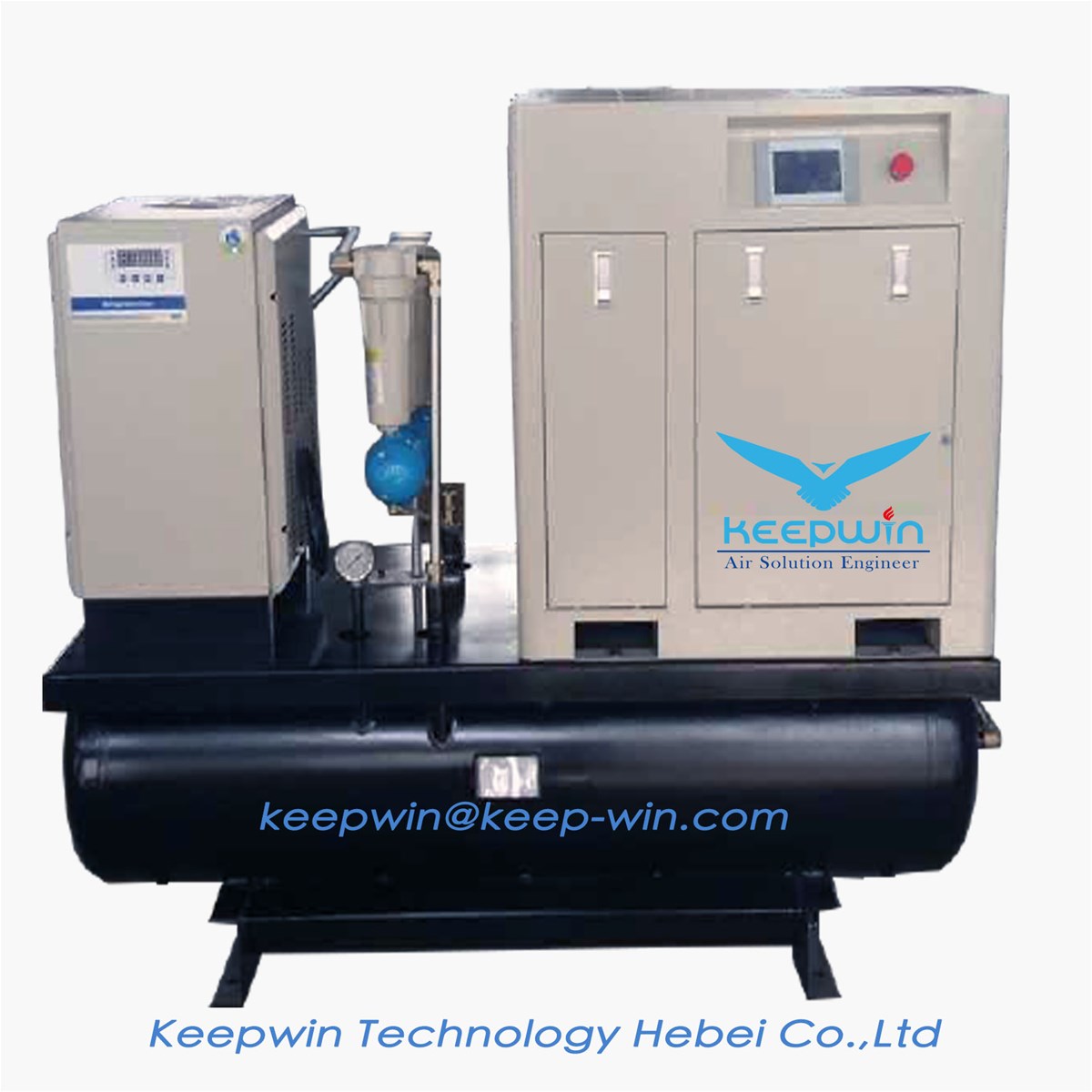

KP-LB-7.5TY Integrated Screw Air Compressor with air tank refrigerated air dryer
Power range: 5.5hp ~ 60hp
Pressure: 7-12.5 Bar

1. 7bar/8bar/10bar/12.5bar working pressure(discharge pressure) for your selection (for more lower pressure 4bar or 6bar, please send your inquiry to us)
2. Intelligent microcomputer control system, controller has the remind & record function, show the compressor operation situation clearly
3. Superior components, low maintenance cost
4.Germany OPTI belt, easy for replace, and ensure the product quality
5. Oversize air-end, low rpm, no overheat problem
6.IP54/IP55 high quality motor, SKF bearing, Class F level insulation; Class BTemperature rise;
7. Discharge temperature= Ambient temperature+15, with cooling/ventilation system tailor made to the same local hot-humid climatic condition, NO OVERHEATING ON CONTINUOUS 100% LOAD IS GUARANTEED!
8.Top door is locking design, easy to open to clean the cooler and fan
9.Compressor is filled with lubrication oil before delivering, you can operate it after installed and powered on. Once it run 500hours to change the new air filter and oil filter was set for first maintenance, then normally change them with 2000-3000hours for once maintenance replacing new one.
10. Phase reversal protection, current overload protection, pressure protection, overheat protection

Technical Parameters of KP-LB-TY Fixed Belt Drive Screw Compressor
Model No.	Motor Power (kw)	Horse Power (HP)	Air delivery (m/mim)	Working pressure(bar)	Air Dryer Model	Air Tank (L)	L*W*H(mm)	N.W(KG)
KP-LB-4TY	4	5.5	0.74	7	HAD-001-1NF (1.0m3/min)	250L	1400*670*1550	400
			0.66	8
			0.56	10
KP-LB-5.5TY	5.5	7.5	0.8	7	HAD-001-1NF (1.0m3/min)	250L	1400*670*1550	450
			0.7	8
			0.6	10
KP-LB-7.5TY	7.5	10	1.2	7	HAD-001NF (1.6m3/min)	250L	1400*670*1550	500
			1.1	8
			1	10
			0.8	13

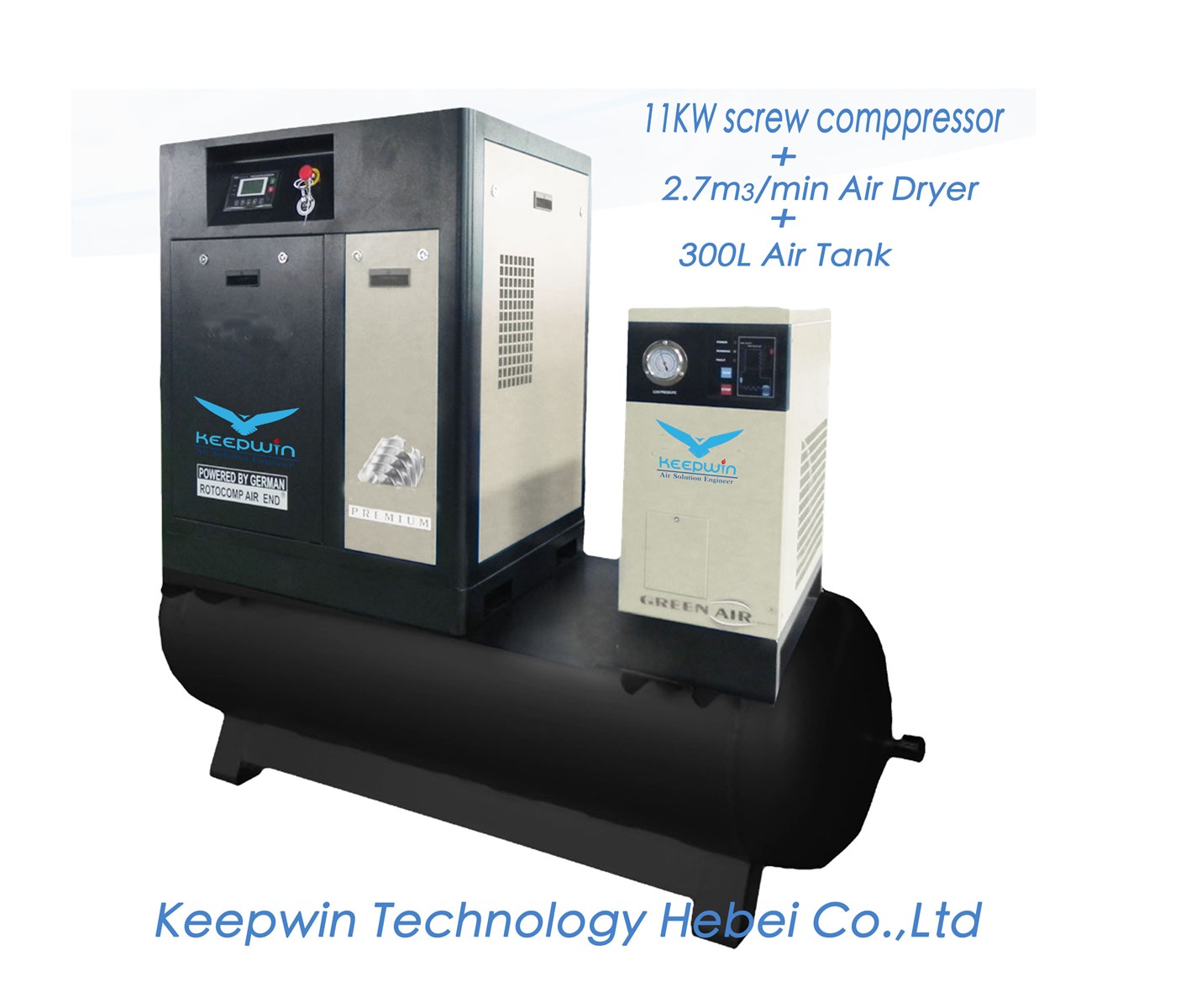

KP-LB-11TY	11	15	2.0	7	HAD-003NF (2.7m3/min)	300L	1400*670*1550	550
			1.6	8
			1.42	10
			1.14	13
KP-LB-15TY	15	20	2.5	7	HAD-003NF (2.7m3/min)	300L	1150*800*1100	390
			2.3	8
			2	10
			1.75	13
KP-LB-18.5TY	18.5	25	3.1	7	HAD-003NF (3.8m3/min)	250L*2	1650*800*1840	620
			2.9	8
			2.6	10
			2.2	13
KP-LB-22TY	22	30	3.5	7	HAD-003NF (3.8m3/min)	250L*2	1650*800*1840	700
			3.3	8
			3.0	10
			2.6	13
According to the standard of GB19153-2009     Compressor Stage: Single Stage Compression Standard Power Supply: 380V/50Hz/3ph           Exhaust Temperature: Ambient Temperature +15 Configurated normal temperature type Air dryer,with Dew Point range: 3-10; Please contact us for any specification that is not within the above mentioned standard.

Welcome to join us!
We Consider Our Customers as Our Friends and Families, and We do Believe in the Win-Win Situation for Building up Long-Term Relationship.
Innovation
    Provide innovative, stable products and services.
Quality
    Deliver consistently superior performance and pursue every possible improvement.
Agility
    Identify emerging trends and act quickly to acquire new opportunities.
Customer Satisfaction
    Anticipate customer needs and exceed their expectations.
Warranty
Within 12 months since the customer used,or 18 months since shipped from factory, no matter which expires, we ensure that no defects for material and manufacturing.
