| After-sales Service Provided: | Overseas third-party support available |
|---|---|
| Warranty: | one year |
| Brand Name: | Qianjin |
| Usage: | Heat Treatment Furnace |
| Condition: | New |
| Certification: | ISO9001 |
| Weight: | It depends |
| Dimension(L*W*H): | 1.5M*L20M,plate thickness 20mm |
| Power(W): | It depends |
| Voltage: | 380v |
| Place of Origin: | China (Mainland) |
| Type: | Blast Furnace |
| Fuel: | Liquefied gas, natural gas |

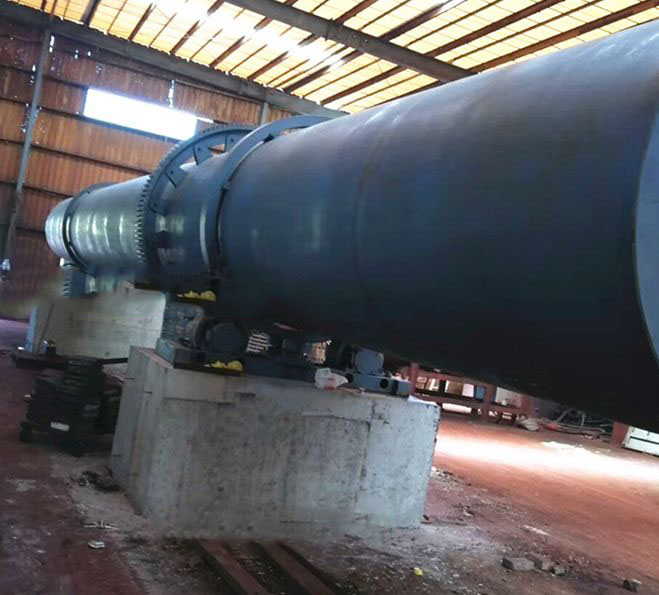

| Inner diameter of rotary furnace: | 950mm |
Quick Details
Specifications
Other parameters:
1.Transmission model of Rotary furnace:Reducer-drive through gear and gear ring15KW
2.Temperature control:2 sets of wireless Temperature control are equipped
3.Pressure control of rotary Furnace:Frequency converting Control through smoke exhaust fan
4.Gradient of the drum of Rotary furnace:3
5.Rotate speed of drum:Frequency conversion and Adjustable
6.the structure mode:Use 3 pairs of kiln rollers to Support the cylinder,1 pair of gear and gear ring for the transmission in the middle
7.Autocombustion system:1M kilocalorie for 1 branch Circuit, 1 unit of 4KW combustion fan
8.Gas consumption:30/h
9.the sealing for the Cylinder,head cover and tail cover:Scale sealing,304 stainless Steel
10.Refractory matter:High-alumina brick
11.Thermal insulation material:Poly-light brick
(the process flow diagram of Rotary furnace)
