| Brand Name: | soouy |
|---|---|
| Rated Voltage: | 240v |
| application: | residential |
| Material: | aluminu,copper |
| name: | meter base |
| Model Number: | GYB-100 |
| Place of Origin: | China (Mainland) |
| Protect level: | NEMA 3R |
| Phase: | Single Phase |
Quick Details
Specifications
1. Production Description
GYB-100T Round Meter Sockets / Meter Base
Application
Temporary Service
Outdoor Advertising
Small Customer Service
Other Low Amperage Requirements
Features:
Our meter base's enclosure is made of die cast aluminum. the electro-statically applied epoxy and polyester
Resins, which are baked on, form a durable, light gray exterior. the current carrying parts of meter socket
Are Made of copper alloy. the ground connector is designed to insure a positive electrical connectio
Nby effectively clamping the conductor against a serrated surface.
Meter Socket Specification:
| Product Number | Description | Fixed Hubs Size |
| GYB-100B | 1 Phase, 100A,120/240Vac,4 jaw | 1/2" |
| GYB-100C | 1 Phase, 100A,120/240Vac,4 jaw | 3/4" |
| GYB-100D | 1 Phase, 100A,120/240Vac,4 jaw | 1" |
| GYB-100E | 1 Phase, 100A,120/240Vac,4 jaw | 1-1/4" |

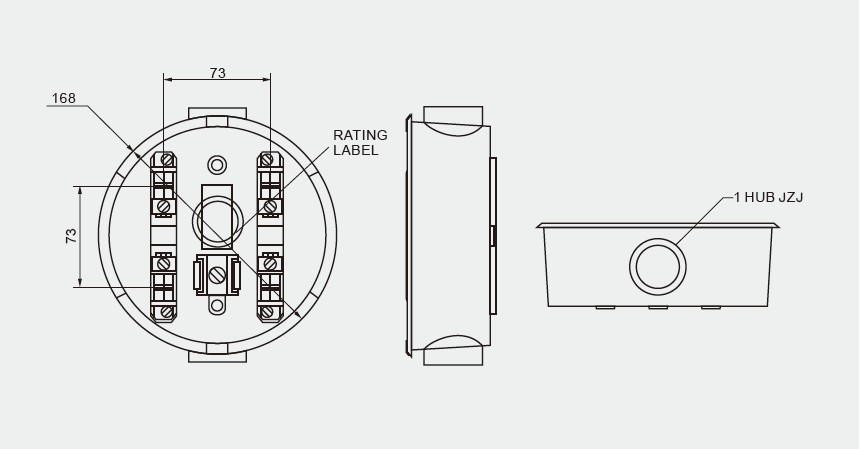

GYB-100T Dimensions:
