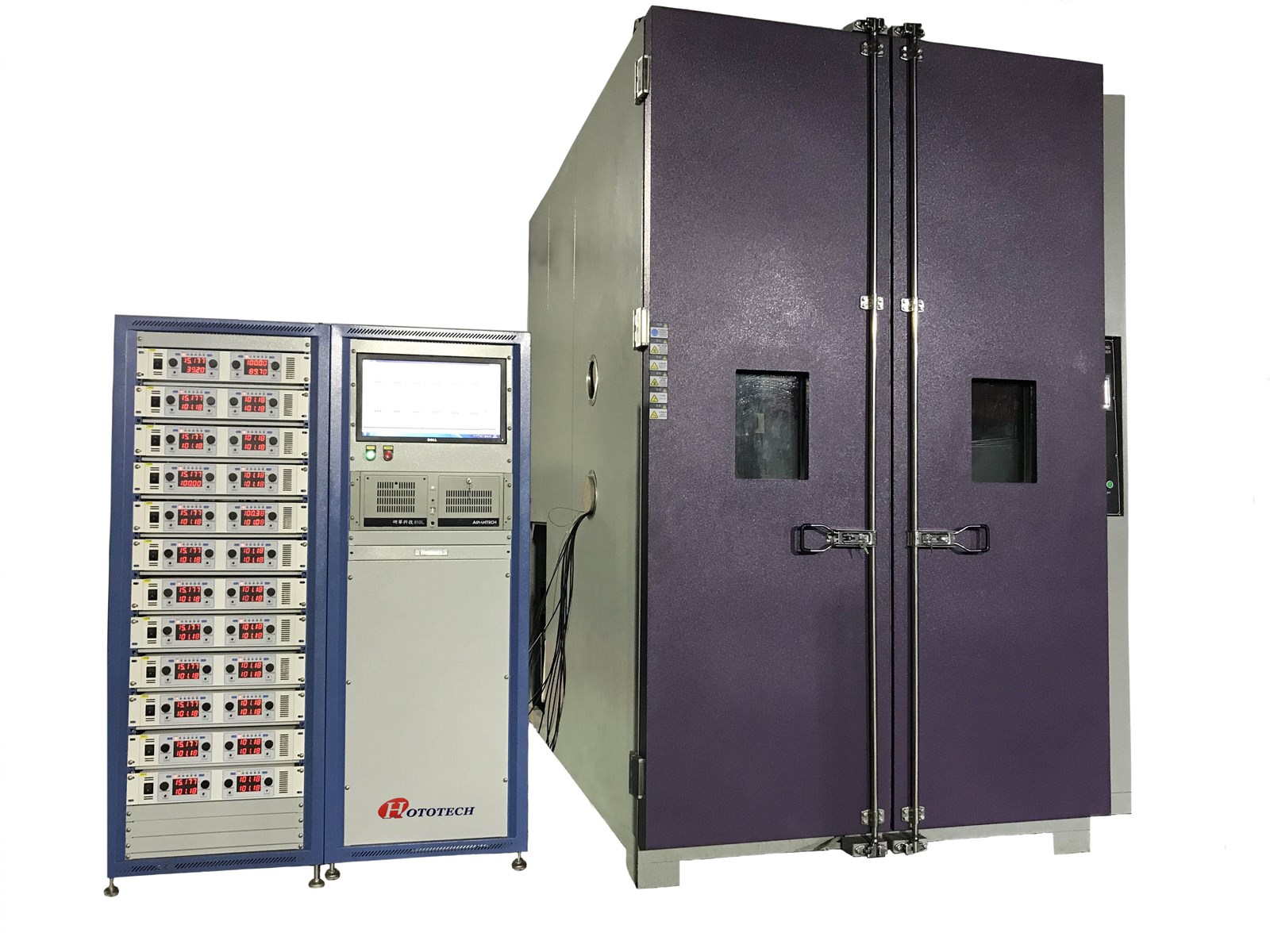

Thermal cycle/Humidity freeze testing chamber/PV Module testing chamber

Standard
It's according to IEC61215-2:2016 testing standard

Purpose
It's used to determine the ability of the module to withstand thermal mismatch, fatigue and other stresses caused by repeated changes of temperature

the Main Technical specifications
1. Temperature range:-40~85
2.Temperature fluctuation:<=+/-1
3.Temperature deviation:<=+/-1
4.Temperature uniformity:<=+/-2
5.Rise and down speed rate: satisfy IEC61215 standard requirement
6.Humidity range:30~98%RH
7.Relative humidity deviation:+/-3%FS, Deviation 85+/-2%RH, 90+/-2%RH
8.Humidity fluctuation:+/-2%RH
9.Humidity uniformity:<=2%RH
10.Thermal cycle testing, module surface's temperature change rate should not more than 100/h limit tempmerature the lowest maintain time is 10min, one test is 200 times or 50 cycles
11.Placed 12 pcs test module
12.Inner chamber material:stainless steel
13.Outer chamber material:stainless steel
14.Control system: automatic calculus
15.Display panel: touch screen
16.Real-time curve show: can show program set time, adjust curve sample rate record cycle, show set value curve and value and humidity value
17.Communicate interface; RS-485 communicate interface, match on line software can connect ot he computer, data save, print and download
18.Humanized operation interface automatic control:refrigeration compressor, automatic energy valve, temperature, humidity,electric heating etc
19.Independent control:the program controller will heat up/humidification/dehumidification/cooling etc function complete independent control, save the energy
20.Electricity:380V 50HZ
