| After-sales Service Provided: | Overseas service center available |
|---|---|
| Condition: | New |
| Brand Name: | SURE |
| Weight: | 800kg |
| color: | stainless steel color |
| Model Number: | SF200 |
| Place of Origin: | China (Mainland) |

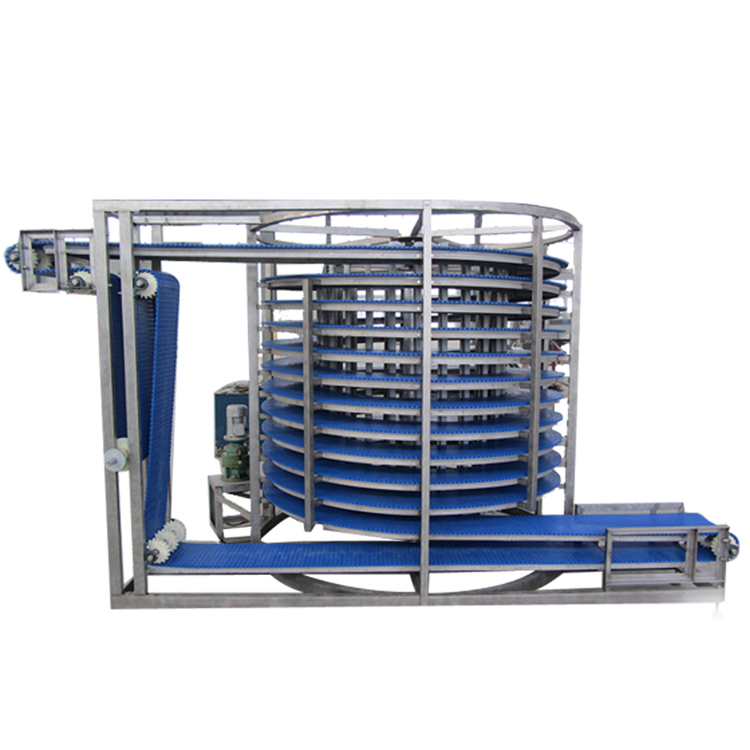

| name: | spiral freezer |
| modle: | SF200 |
| output: | 200kg/h |
| refrigeration consumption: | 30kw |
| belt width: | 300mm |
| dimension: | 4.0*3.3*2.1m |
Quick Details
Specifications
NO. |
ITEM |
CONTENT |
1 |
Equipment Type |
Spiral Freezer SF200 |
2 |
Belt Material |
Food grade stainless steel |
3 |
Output Capacity |
200kg/h |
4 |
Inlet Temperature |
+15 degree Celsius |
5 |
Outlet Temperature |
-18 degree Celsius |
6 |
Inner Temperature |
-383 degree Celsius |
7 |
Retention Time |
Adjustable |
8 |
Cabinet Dimension |
4000mm*3300mm*2100mm L*W*H |
9 |
Length of Inlet Device |
1000mm |
10 |
Length of Outlet Device |
500mm |
11 |
Height of Inlet Device |
800mm |
12 |
Height of Outlet Device |
1925mm |
13 |
Qty of Tiers |
9 tiers |
14 |
Drum Diameter |
1260mm |
15 |
Belt Width |
300mm |
16 |
Belt Length |
63m |
17 |
Tier Pitch |
125mm, 65mm effective |
18 |
Refrigeration Consumption |
36KW (+40 degree C/-40 degree C) |
19 |
Evaporating Area |
360 square meters |
20 |
Compressor Model |
BITZER S6H-20.2Y 2-stage*2 sets |
21 |
Refrigeration Capacity |
37.22 KW (+40 degree C/-40 degree C) |
22 |
Refrigerant |
R404a |
23 |
Condensing Type |
Air cooled |
24 |
Installed Power for Spiral Freezer |
3.55 KW |
25 |
Installed Power for Compressor Unit |
33.6KW |
