| Feature: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | BV/CCS/SGS/OHSAS/Customized |
| Brand Name: | ZDPM |
| Condition: | New |
| Feature: | Portal crane |
| Warranty: | 12 months |
| Model Number: | single arm rack, single boom luffing rack or quadruole |
| Place of Origin: | China (Mainland) |
| Span: | On request |
| Max. Lifting Height: | Above rail 40m+Under rail 36m |
| Max. Lifting Load: | 45ton |
| Rated Lifting Moment: | 600KN |
| Rated Loading Capacity: | 10~45ton |
| Application: | Seaport, vessel plant, dockyard, offshore,others |
| color: | Any color |
| Place of use: | port/pier/wharf |
| function: | grab or hook |
| Main electrical parts: | Siemens, Schneider and chinf |
| Type: | Material handling four link portal crane |
| Arm length: | 8m~70m |
Quick Details
Specifications

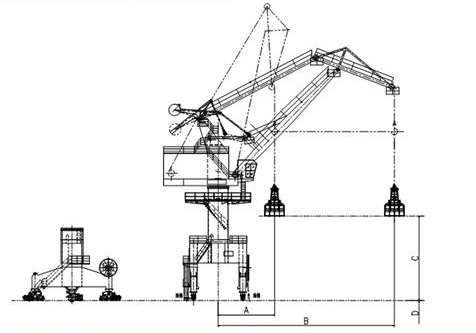

the following example is for you reference.
Feature:
Portal crane (also known as gantry crane) is a kind of gantry crane which is supported by two legs on the ground. the structure consists of door frame, big car operating mechanism, lifting trolley and electric parts. the portal frame of gantry crane ( Include main beam and end beam), supporting leg, lower beam, order to enlarge the crane operation range, the main girder can extend out the legs to one or both sides, forming a cantilever.Also can use the crane with the Arm frame, through the arm frame pitch and rotation to expand the crane operating range.

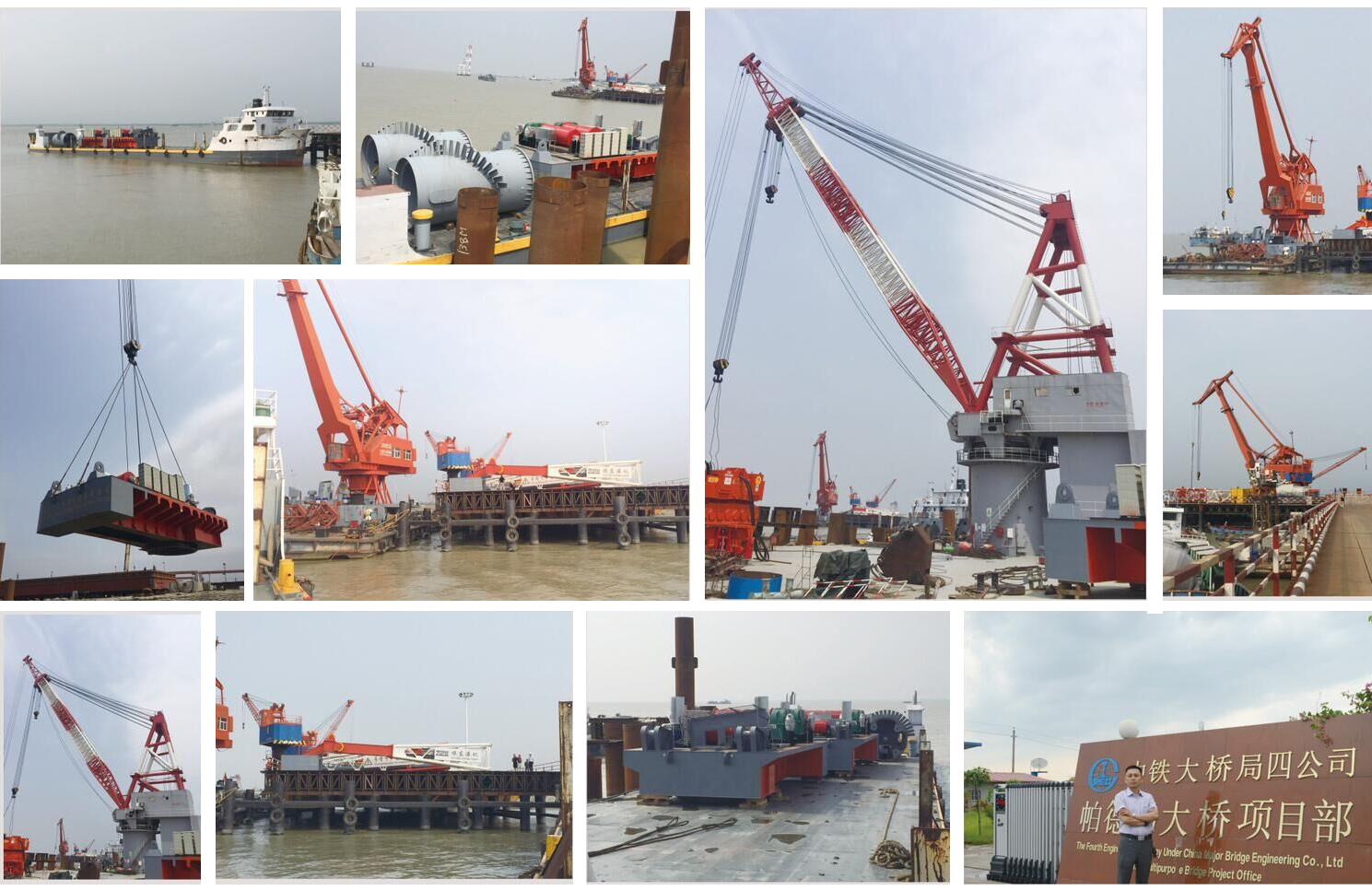

Installation:
Usage:
Company Information:
FAQ:
