| Brand Name: | JARCH |
|---|---|
| Material: | copper plating gold |
| Voltage: | 220 |
| Name: | PCB slip ring |
| Certification: | CE,FCC,ROHS |
| Model Number: | JSR-PS100-3S-M |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Product Description

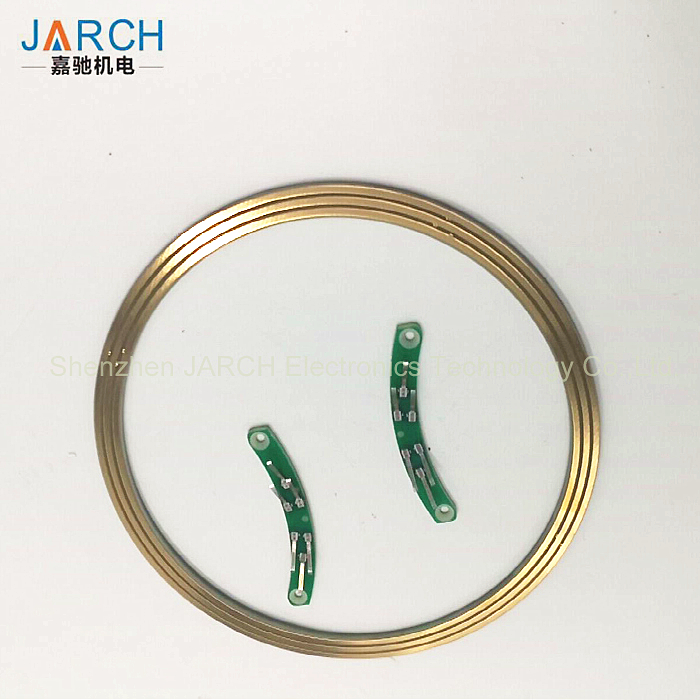

IP00,ID 100mm,OD 113mm PCB slip ring
Pancake slip rings are specially designed when length is at a premium but diameter is less restrictive;
2,3,4,6,8,10 circuits version
in certain applications where a cylindrical shape slip ring will Simply not fit into the available space or a very low profile is needed, a pancake or platter style slip ring can be used. the PS045 bore size 45mm, uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates

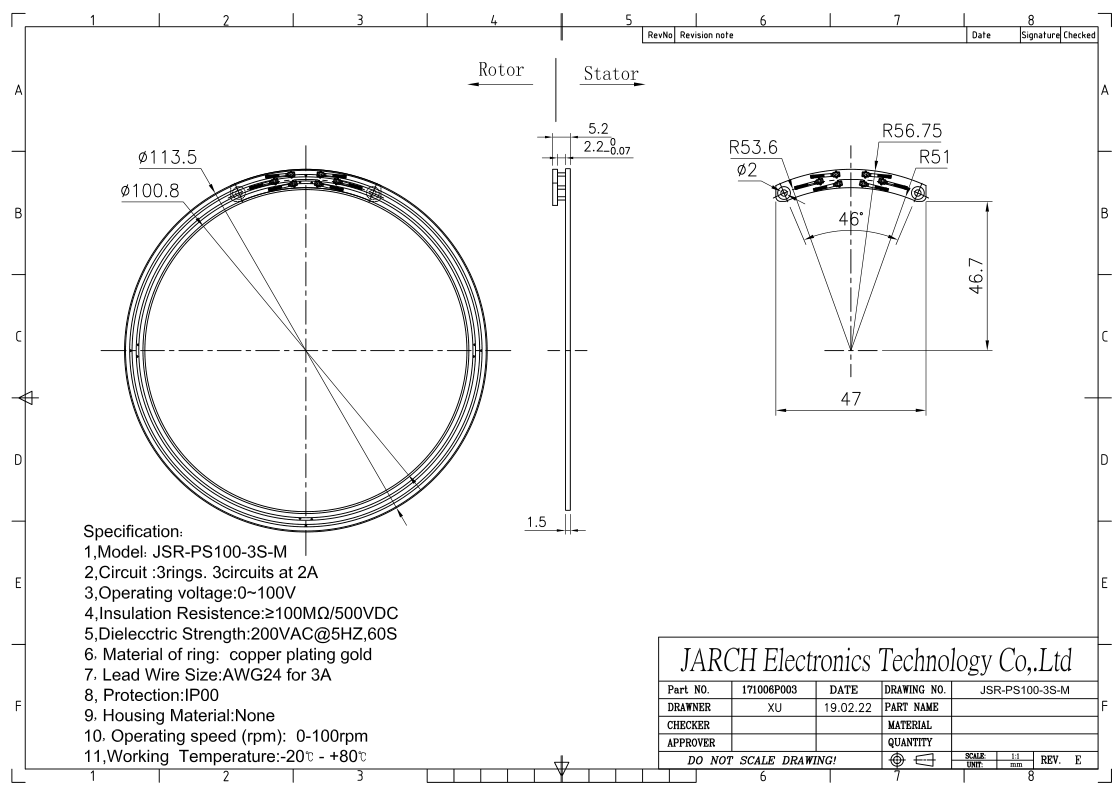

Dimensions & Specification:
Benefits:
- Longer lead lengths availableI
- Power and signal combinations
- Rotor and stator lead exits
- Gold alloy brush,Gold plated rings
- IP65 are optional
- More thickness available
Applications:
- Filling equipment
- Electrical test equipment.
- Medical equipment.
- Rotary table
- Robotics
- Laboratory equipment
- Manufacturing and process control equipment
Packaging & Delivery:
| Packaging Details: | Standard Export carton Package |
| Delivery Details: | Delivery time:15 days after got the payment Shipping:by DHL, FedEx, UPS or TNT...... |
