| Brand Name: | IRASOLAR |
|---|---|
| Certification: | CB,CE,CSA |
| Connection Type: | Direct-Plug |
| Pressure: | Pressurized |
| Type: | Flat-Plate |
| Model Number: | IRA-FP-150L |
| Place of Origin: | China (Mainland) |
| Capacity: | 150 |
| Housing Material: | Stainless Steel |
| Installation: | Freestanding |
| Heating System: | Batch / ICS (Passive) |
| Circulation Type: | Indirect / Closed Loop (Active) |
Quick Details
Specifications
Quality features, certificates
- High level of efficiency due to Sunselect coating on the absorber.
- Low energy loss thanks to excellent thermal insulation.
- Suitable for onroof and flatroof assembly Installation: vertical, side by side.
- Robust aluminium frame for maximum durability.
- Highly Reliable with long useful life due to the use of high quality, Corrosionresistant materials. Glass covering made from low iron solar Glass.
- Easy to erect and install.
Description |

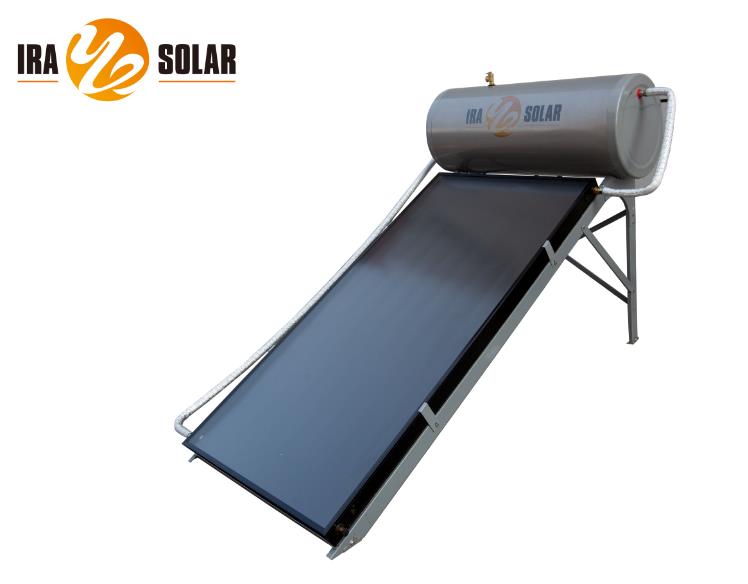

Flat panel solar water heater(IRA-FP-1) |
Material of out tank |
0.31mm thickness color steel/ fluorine carbon steel |
Material of inner tank |
Food grade 1.2 mm thickness SUS304 stainless steel |
Tank insulating layer |
50mm thickness, 45kg/m high-density polyurethane foamed |
Inlet and outlet hole |
Female G 3/4 |
Max pressure |
0.6Mpa |
Flat panel solar Collector Dimension |
2000x1000x80mm |
Absorber material |
Selective balck chorme/Blue coating |
Head pipe |
Copper/22x0.6 |
Branch pipe |
Copper/10x0.5 |
Quantity of Branch pipe |
7PCS |
Welding |
Laser welding |
Cover |
Low iron tempered textured glass |
Frame |
Anodised aluminium alloy |
Insulation material |
Rock wall |
Bracket |
1.5mm thickness of galvanized steel material,25degree. |
Structure of tank: |
8 holes for PT valve,water inlet and outlet,electric heater,Mag Rod, Temp.Sensor.Heat exchange inlet and outlet |
Welding: |
Argon arc welding |
Fastening pieces: |
Made of stainless steel screw |
Absorber area |
2m |
Temperature tolerance |
from -5C to 250C |
Tank capacity |
150L |
