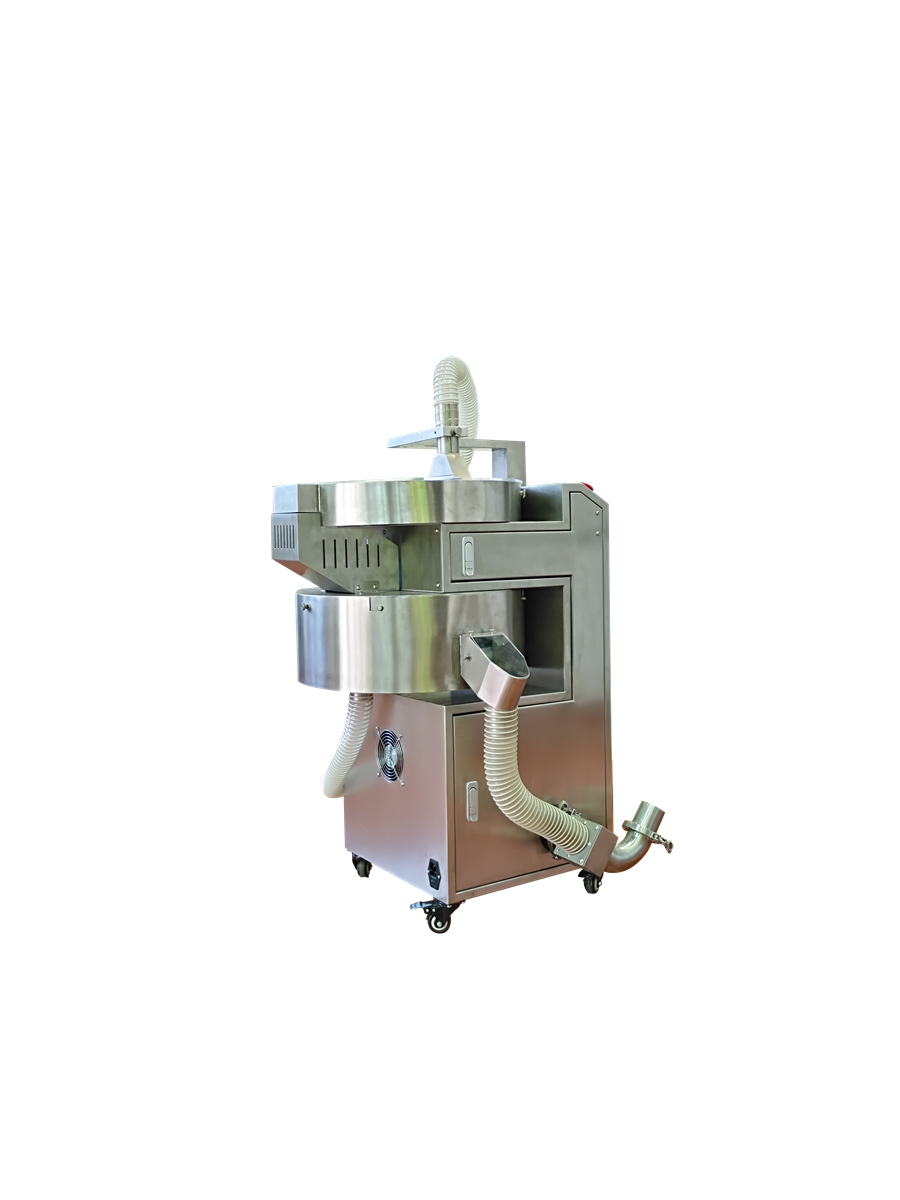

PCS Capsule/Tablet Polishing Machine Manufacturer/ Capsule Polisher

--a new option for capsule polishing & sorting

Introduction

the brushless capsule polishing & sorting machine (PCS) has an original polishing mode.with long-fiber cloth,it solves the problems of poor,low efficiency and wipe capsules softly.Slices of dustless cloth on the plate are very soft,easy to setup,remove,and clean.

Working Principle

the plate and the spiral track were set horizontally.after entering the center of track plate,driven by the low-speed polishing plate,capsule move along the spiral track gradually to the outer the process of movement,dust on the capsule surface will be completely wiped away by cloth.the giant collector beneath the track has the same diameter as the plate.No dust flying while the plate slowly rotates to polish the capsule.Subjected to gravity and suction,all fallen dust will be sucked into the collector,preferable to flying around or sticking with the brush with common works of polishing.

Advantages

1.Complete polishing: no heat or static produced in polishing

2.Harmless: the plate rotates slowly with soft polishing cloth,which would not scratch,bump or crash capsules.

3.Efficiency:horizontally spiral track is superior in speed,able to match 7500-type filler.

Parameter

Model	Applicable for	Speed	Power	Dimeter
PCS	All Hard Capsules	3000pcs/min	AC 220V 50Hz 1.6KW	1120*1060*900mm
