| Use: | Warehouse Rack |
|---|---|
| Feature: | Corrosion Protection |
| Material: | Steel |
| Type: | Vertical Type |
| Brand Name: | HML |
| Height: | 1200 mm |
| Width: | 1060 mm |
| Weight Capacity: | 1500 kg |
| Depth: | 1395 mm |
| Certification: | |
| Model Number: | HML-M1 |
| Place of Origin: | China (Mainland) |
| Customized order: | Rich experience in OEM,ODM |
| Company Type: | China Professional Manufacturer |
| Product warranty: | 1 year |
| Pallet Dimension: | 1395x1060x310 mm(LxWxH) |
| M-post Exterior Dimension: | 1200x60x2.5 (mm) |
| Loading Capacity: | 1500 kg |
| Load in 40GP: | 220 sets |
| Available accessories: | Forklift guide, bag, wheels, etc. |
| Finish: | hot dip galvanized/zinc/ powder coating |
| Product shelf life: | up to 3 or 5 years against proper handling |
Quick Details
Specifications
High quality adjustable vertical china stackable warehouse stacking steel folding metal fabric roll storage pallet racks
" C" channel on base, load 1500kg, hot dip galvanized, forklift guide can be added.
Specifications of post pallets
| Similar design, defferent sizes | |||||
| Model No. | Exterior Dimension | Loading Capacity |
Finish | Quantities | Total Container |
| LxWxH(mm) | kg | sets | |||
| M1-Base | 1395x1060x310 | 1500 | Hot dip zinc | 220 | 1x40'HQ |
| M1-Post | 1200x60x2.5 | Hot dip zinc | 880 | ||
| M2-Base | 1875x1060x310 | 1500 | Hot dip zinc | 143 | 1x40'HQ |
| M2-Post | 1200x60x2.5 | Hot dip zinc | 572 | ||
| M4-Base | 1545x1050x310 | 1500 | Powder coating | 247 | 1x40'HQ |
| M4-Post | 1510x60x2.5 | Powder coating | 988 | ||
| M5-Base | 1200x1000x310 | 1000 | zinc | 255 | 1x40'HQ |
| M5-Post | 2000x60x2.5 | zinc | 1020 | ||
| M6-Base | 950x950x310 | 1000 | zinc | 160 | 1x40'HQ |
| M6-Post | 2100x60x2.5 | Hot dip zinc | 320 | ||
| Material | Mild steel Q235 | ||||

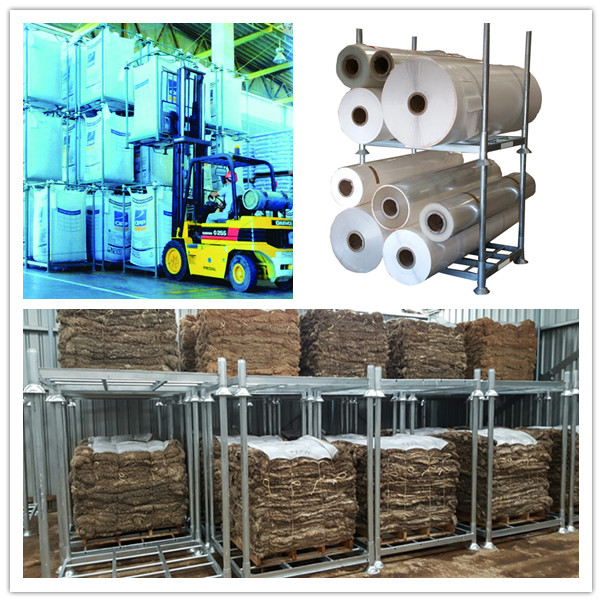

Application area |
Warehouse, logistic, recycling, etc. | ||||
| Remark | Costomized or OEM support | ||||

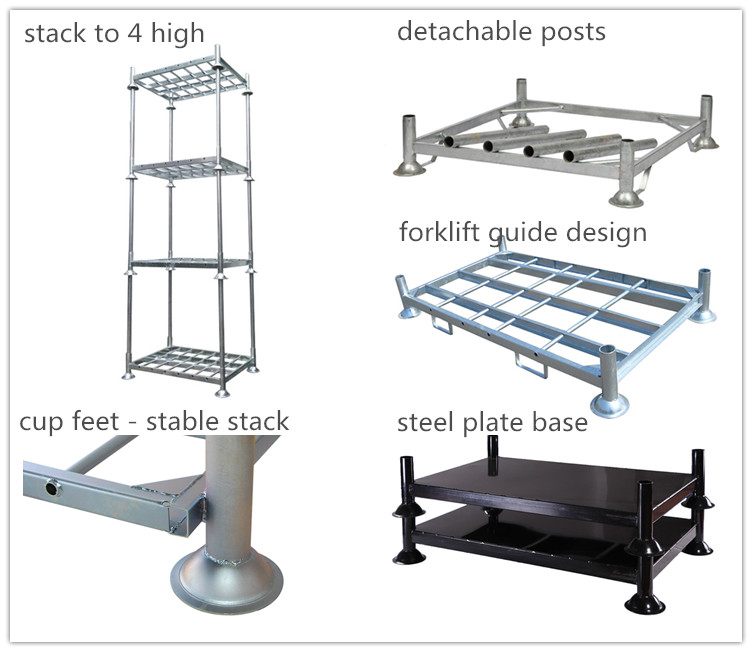

Key Features |
1.Strong Tubular steel - stack up to 4 high 2.Removable Arms - fully collapsible, save space, easy storage when not in use 3.Cup feet - easy stacking 4.Hot-dip galvanized Finish - corrosion resistant, suitable for outdoor use | ||||

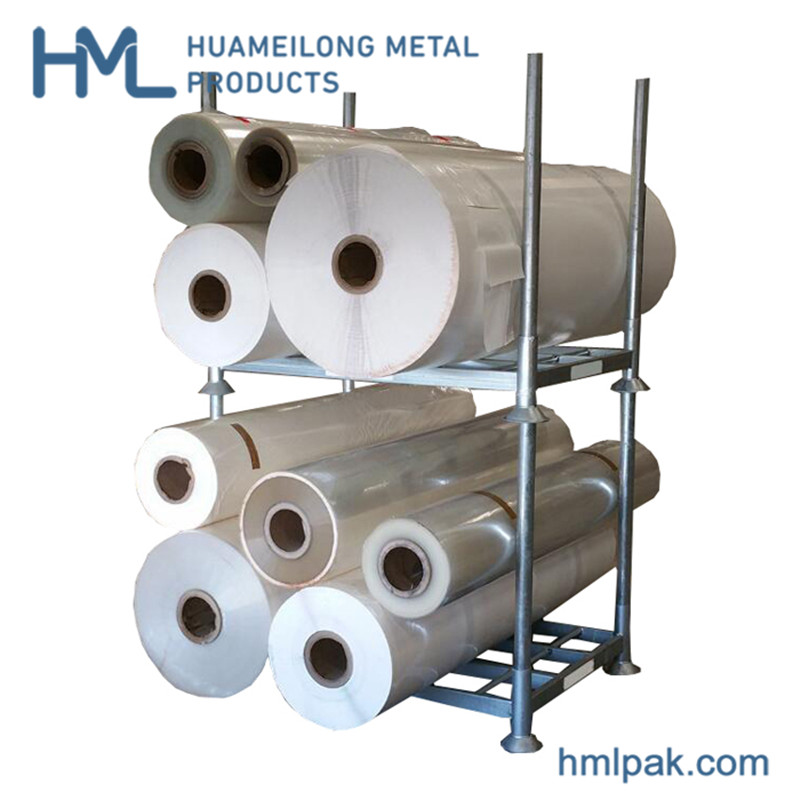

Application of detachable manurack
It will enable you to transform areas which are usually free into storage spaces

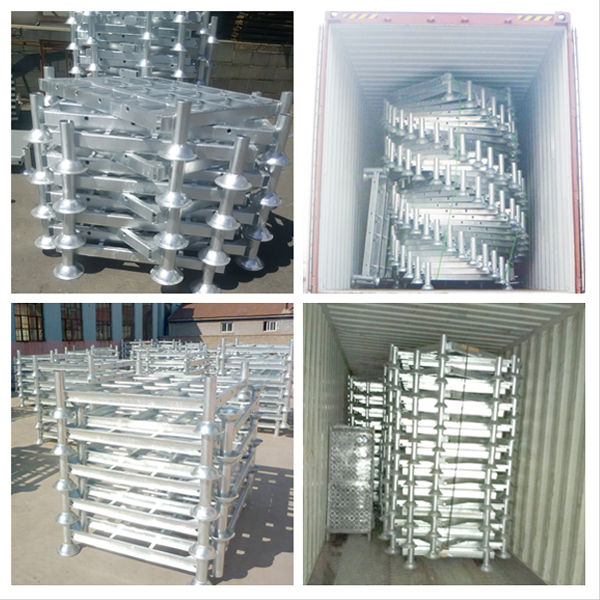

Plastic banding+Stretch film wrapped, easy loading and unloading with standard forklift
