| Electrical Specifications |
|
| Model |

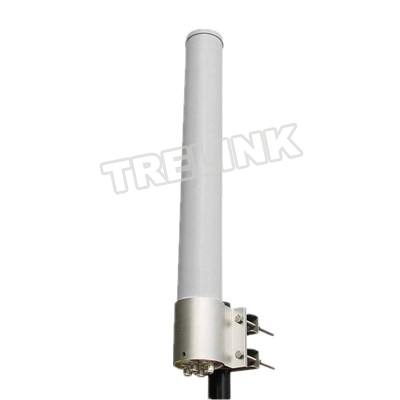

TLOD-2458-10VH-4N |
| Frequency Range |
2400-2500 MHz |
5150-5850 MHz |
| Gain |
10 dBi |
12 dBi |
| VSWR |
1.8:1 |
2.0:1 |
| Polarization |
Horizontal and Vertical |
| Horizontal Beamwidth |
360 |
| Vertical Beamwidth |
12 |
7.2 |
| Isolation: |
>30 dB |
| Cross-Polar Ratio: |
>20 dB |
| Input Impedance |
50 |
| Maximum Power |
100W |
| Lightning Protection |
DC Ground |
| Mechanical Specifications |
|
| Connector |
4*N Female |
| Antenna Dimension(diameter*length) |
80*1250 mm |
| Weight |
3.6 kg /7.9 lb |
| Radome Material |
UV-PVC |
| Wind Velocity |
210 km/h |
| Working Temperature |
-40~+65 |
| Mounting Pole |
40-60 mm |
