Quick Details

Brand Name: Yunyi
Accuracy: 0.5
Power Supply: 24VDC
output: rs485
Medium: water

Specifications

Description  China portable ultrasonic  water flow sensor meter

TUF-200B Flowmeter can be virtually applied to a wide range of long-term online measurement. Convertor protection class IP67,transducer protection class IP98.A variety of liquid applications can be accommodated: ultra-pure liquids,portable water,chemicals,raw sweage,reclaimed watere,cooling water,river water,plant.etc.

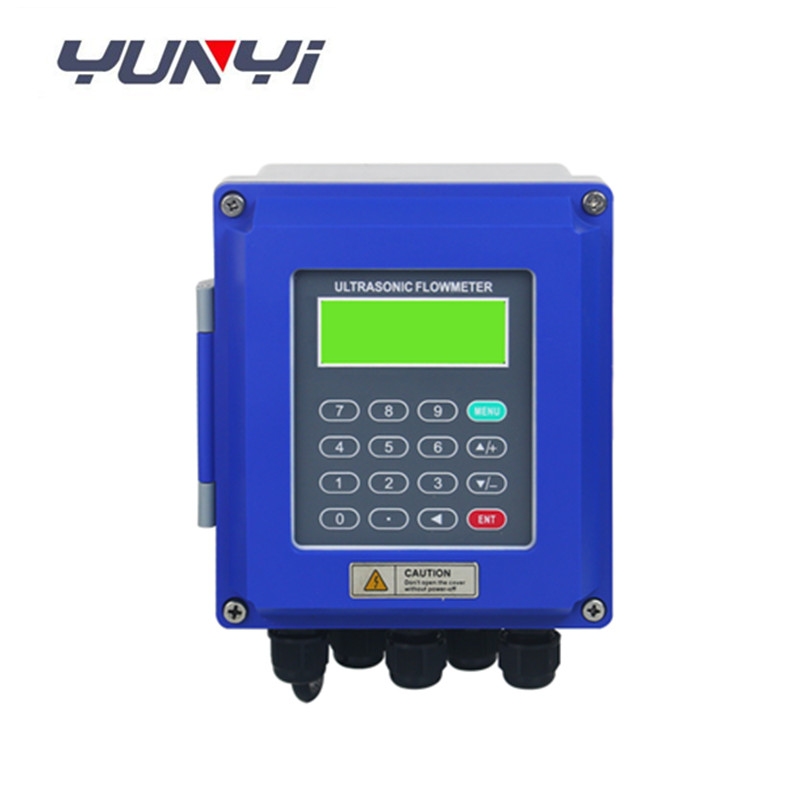

Detailed Images China portable ultrasonic  water flow sensor meter

China portable ultrasonic water flow sensor meter price



Specification China portable ultrasonic  water flow sensor meter

Pipe Size
DN50~DN6000mm
Pipe Material
Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Working Temperature
-20~60
Liquid Temperature
-30~160
Type of Liquid
Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, alcohol, etc.
Signal Output
1 way 4-20mA output
1 way OCT pulse output
1 way Relay output
Signal Input
3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
Communication interface

RS485, support MODBUS
Application
Online measurement
