Brand Name: | Yunyi |
---|---|
Output: | 4-20mA |
Accuracy: | 0.5 |
Power Supply: | 24VDC |
Range: | -0.1-100Mpa |
Model Number: | UC800 |
Name: | 3051 differential pressure transmitter |
Quick Details
Specifications

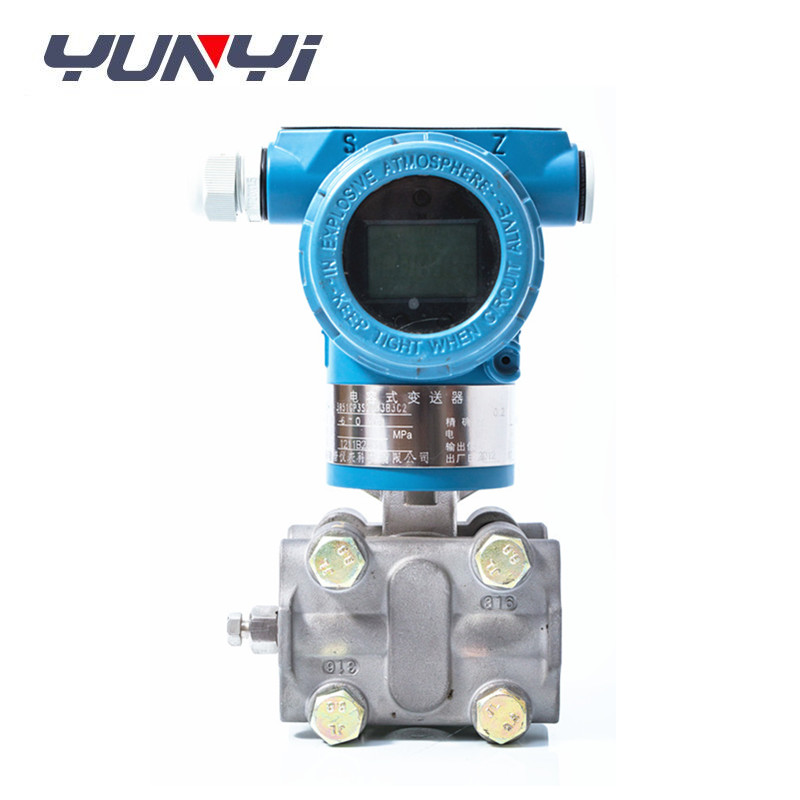

Description 3051 differential pressure transmitter
UC800 Project Special Pressure Transmitter is the result of A combination of self-developed anti-jamming, high stability digital circuits and the Introduction of foreign Single crystal resonant Silicon sensor technology. Its pErformance much Better than our domestic metal capacitive sensor technology transmitter,and main show in the field zero stability and long-term operation stability, and rapid response.
Features 3051 differential pressure transmitter
Single crystal resonant Silicon sensor technology
Super performance, use to measure pressure, differential pressure and temperature..
Accuracy: 0.075%~0.1%F.S/0.2%F.S
Stability: 0.2%
Standard 4~20mA,RS-485 communication interface
Support upgrade of basic scene control technique
Little temperature effect
Little static effect
Overload can reach 2 times
Applications 3051 differential pressure transmitter
Compatible with 316LSS,noncorrosive liquids.
Shipping and aviation industry.
Hydraulic pressure and pneumatic control system
Apply in Petroleum industry, chemical industry, electric power, metallurgy, hydrology etc process control.
